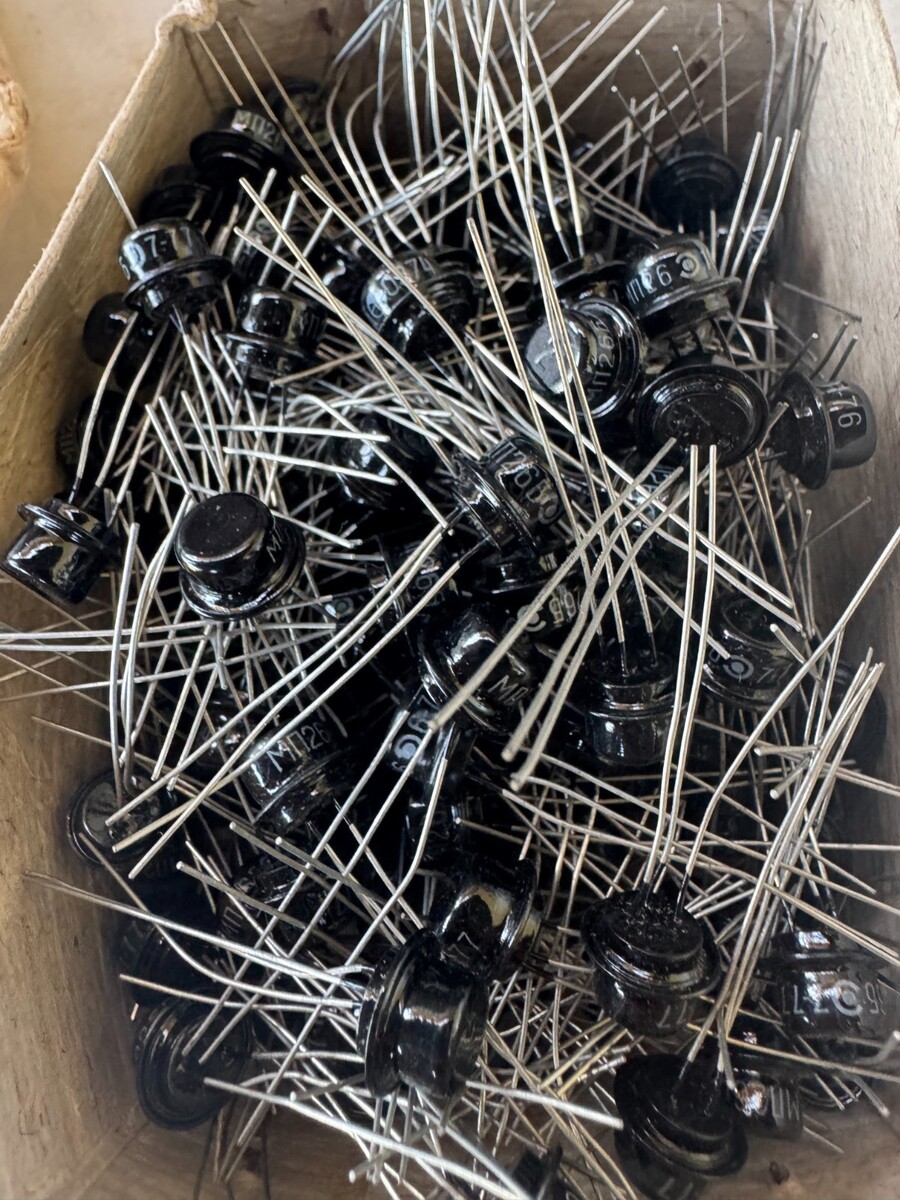

MP26B = 2N1188 = ACY17 P-N-P Germanium and 47 similar items

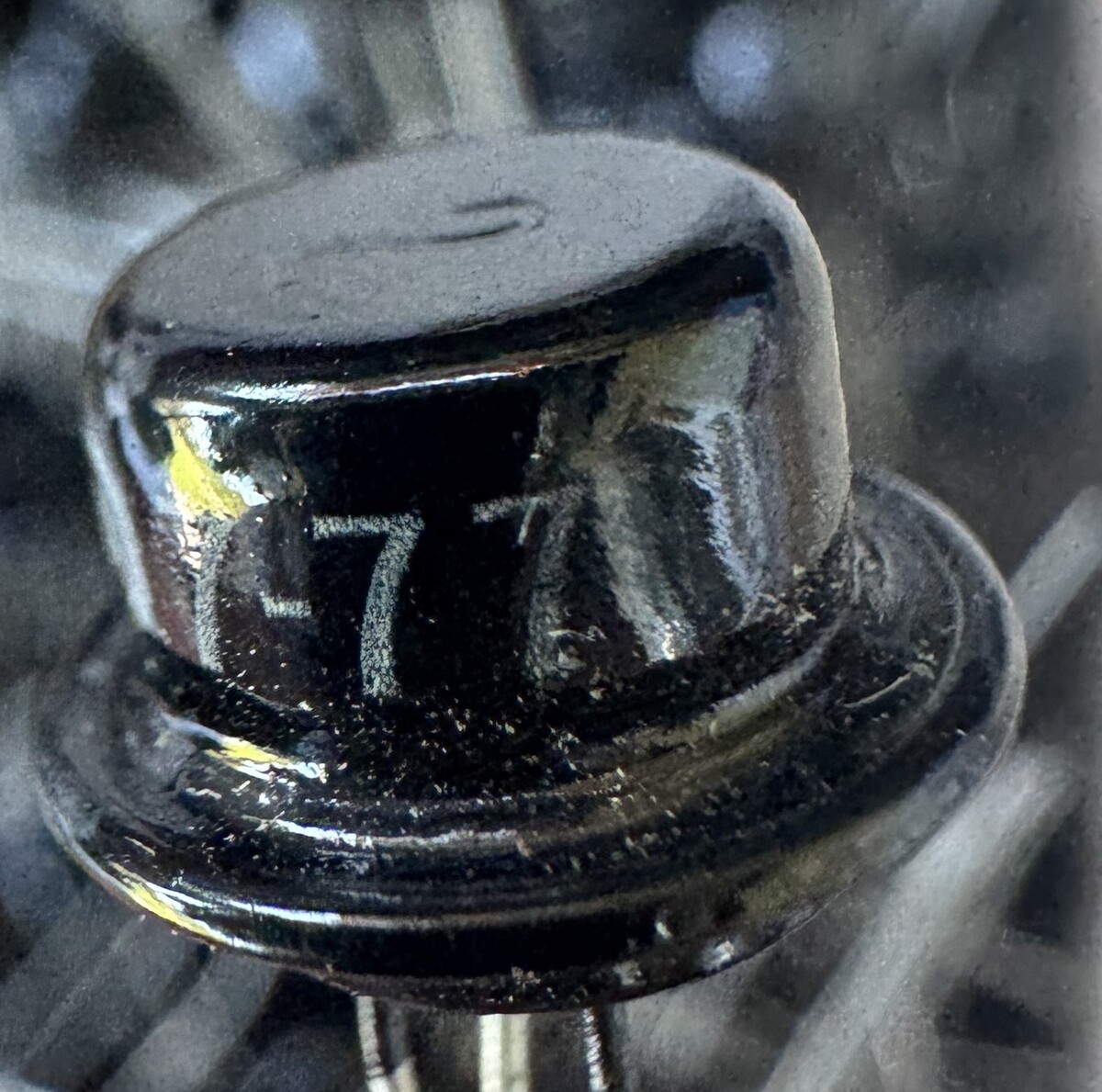

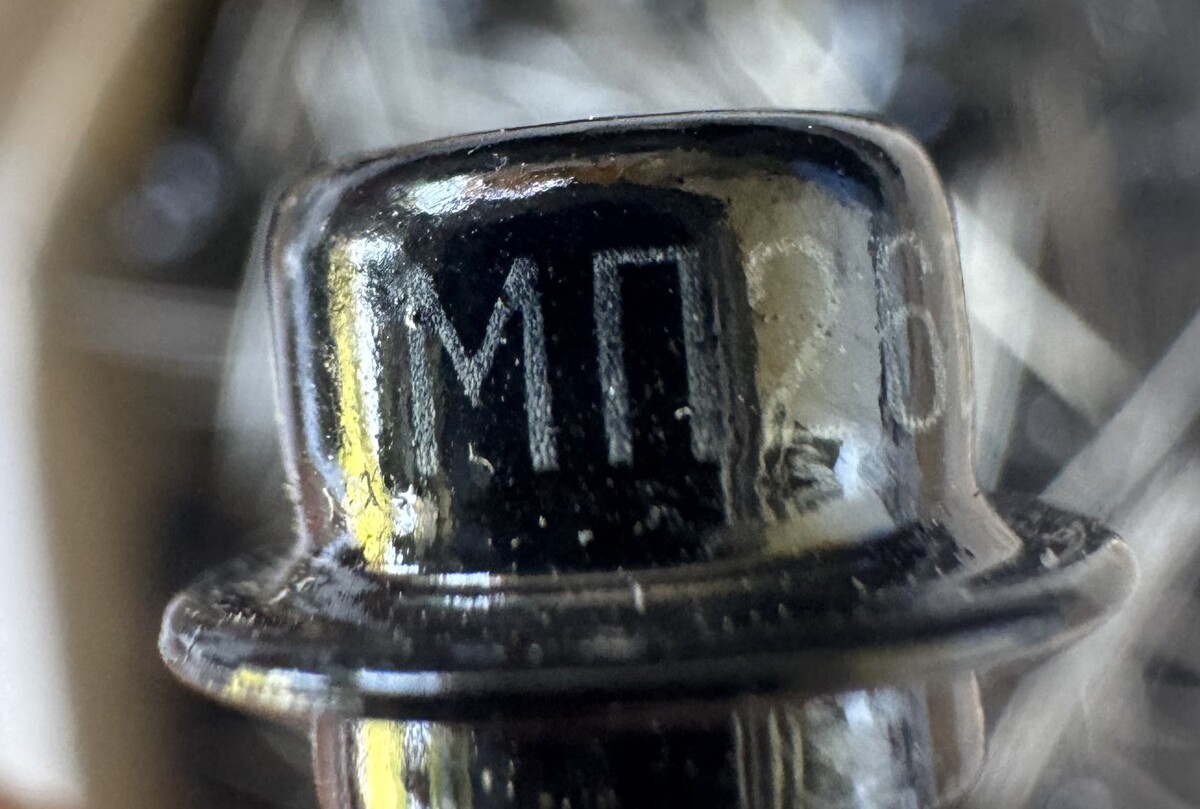

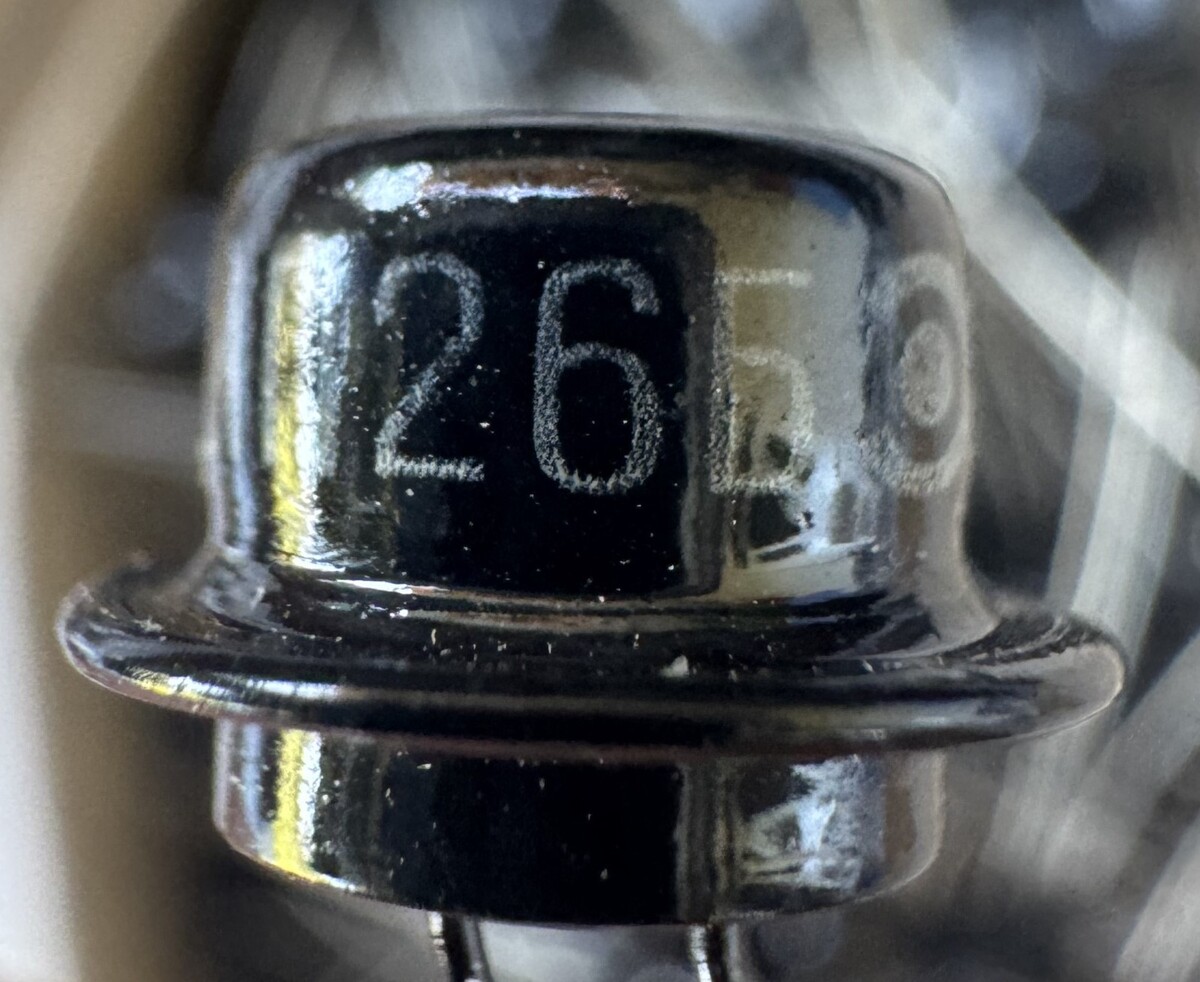

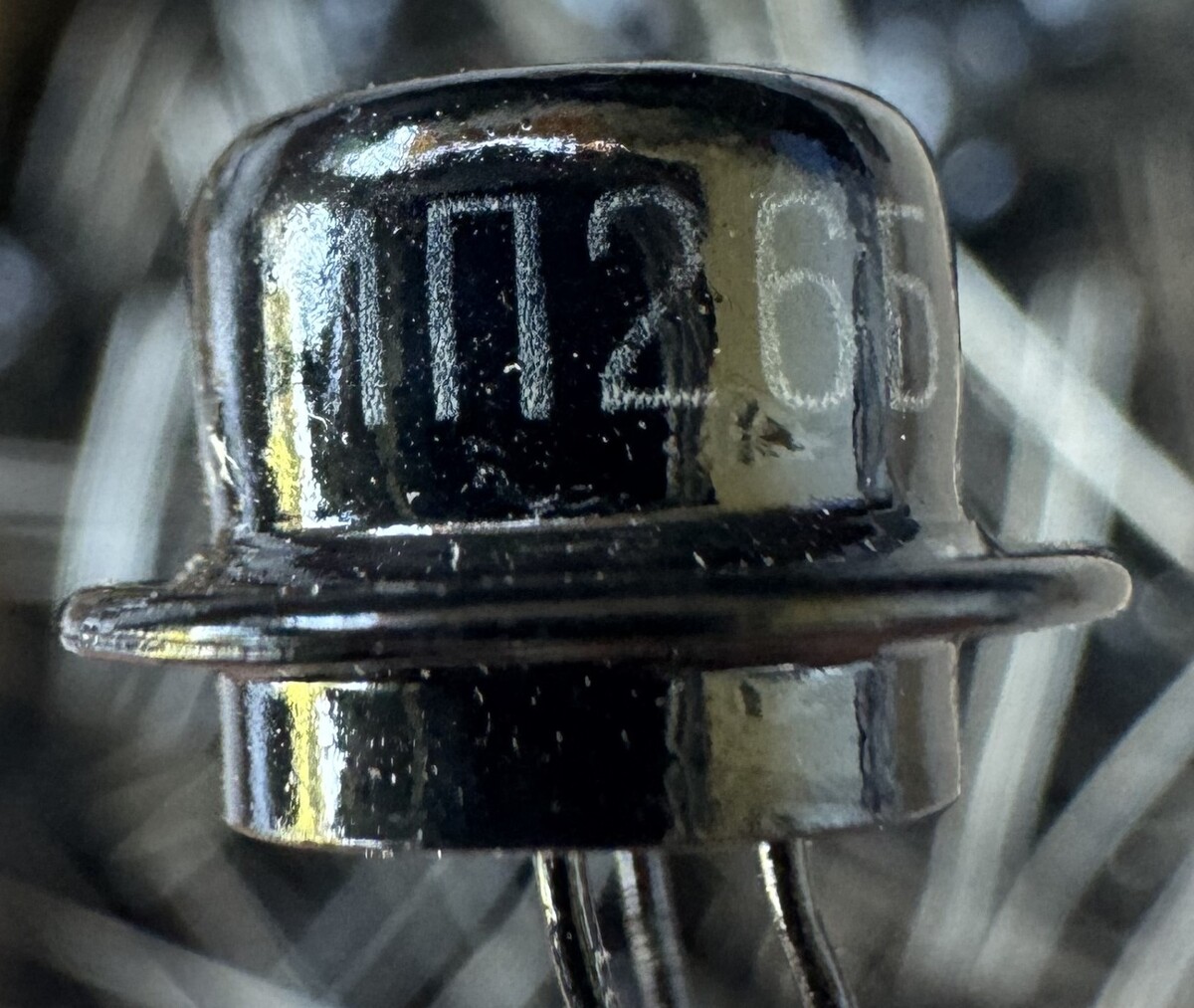

Description and technical parameters The MP26B germanium alloy p-n-p universal low-frequency transistor is designed to amplify and switch low-frequency signals. It is available in a metal-glass case with flexible terminals. The type designation is shown on the side of the housing. Weight not more than 2g. Body type: KTY-3-6. Technical specifications: PZH0.336.004TU. Technical characteristics of the germanium alloy universal low-frequency transistor MP26B: The constant dissipated collector power, MW - 200. The maximum frequency of the current transfer coefficient of a transistor for circuits with a common emitter and a common base is at least 0.5 MHz. Breakdown voltage collector-base, V - 70. The breakdown voltage is emitter-base, V - 70. The maximum allowable collector pulse current, mA is 400. Reverse collector current, not more than, mkA - 75. The static current transfer coefficient of a transistor in the low-signal mode for circuits with a common emitter and a common base, respectively, ranges from 30 to 80. Collector junction capacity, no more than pF - 15. Saturation resistance between collector and emitter, no more than 1.8 ohms.
