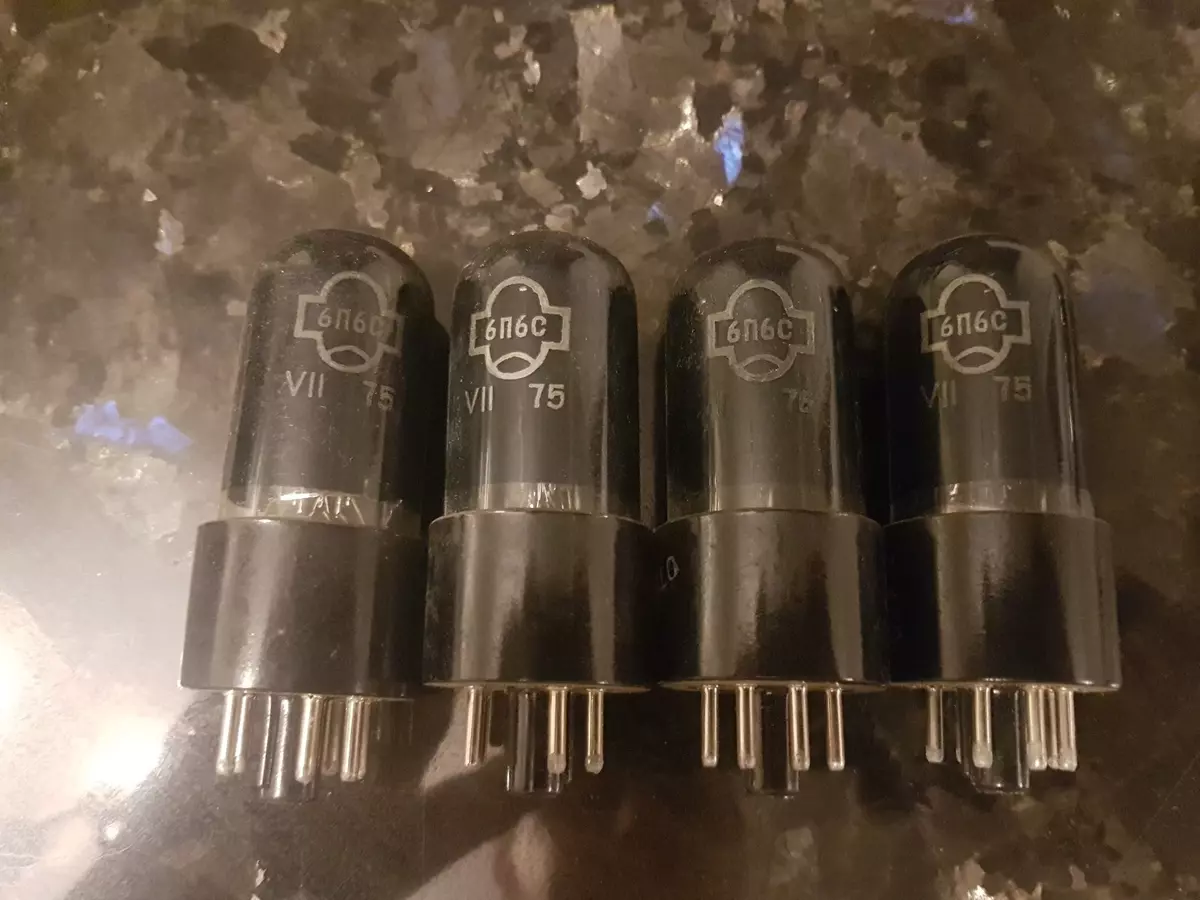

6V6GT 6P6S 6N6C Ussr Matched Pair Nos and 50 similar items

The output beam tetrode. Designed to amplify low frequency power. Durability not less than 500 hours. Weight not more than 38 g. Main technical characteristics 6?6?: The voltage ...... 6.3 0.6 V The current ...... 450 40 mA The anode voltage nominal (constant) ...... Two hundred fifty The anode voltage limit (constant) ...... Three hundred fifty Plate current. ..... 45 12 mA The grid voltage of the first (constant)...... -12.5 V The reverse current of the grid first ...... not more than 2 µa The second grid voltage nominal (constant) ...... Two hundred fifty The grid voltage is the second limit (constant)...... 310 Volts Grid current second ...... not more than 7.5 mA The power dissipated by the anode limit ...... 13.2 W Power dissipated by the second grid, the limit ...... 2.2 W The voltage between the cathode and the heater is limit (constant) ...... One hundred The steepness of the characteristic ...... 4.1 1.1 mA/V Internal resistance. ..... 52 kOhm Output power. ..... not less than 3.6 W The coefficient of nonlinear distortion ...... Eight% Input capacity ...... 9.5 1.6 pF Output capacity ...... 6.5 2.7 pF Capacity through passage ...... not more than 0.9 pF Note about Feedback: Please leave me feedback when you receive your item and are happy with the transaction. If you have any questions or concerns, PLEASE contact me first before leaving negative feedback. I always strive to resolve any problems and make our customers happy. Note About Delivery Time: I try to send your item as soon as possible, Normally no later than 3 days after payment is received. arrive time is contingent on the carrier.
