Matched pair 6N23P / E88CC/6DJ8 100% tested and 50 similar items

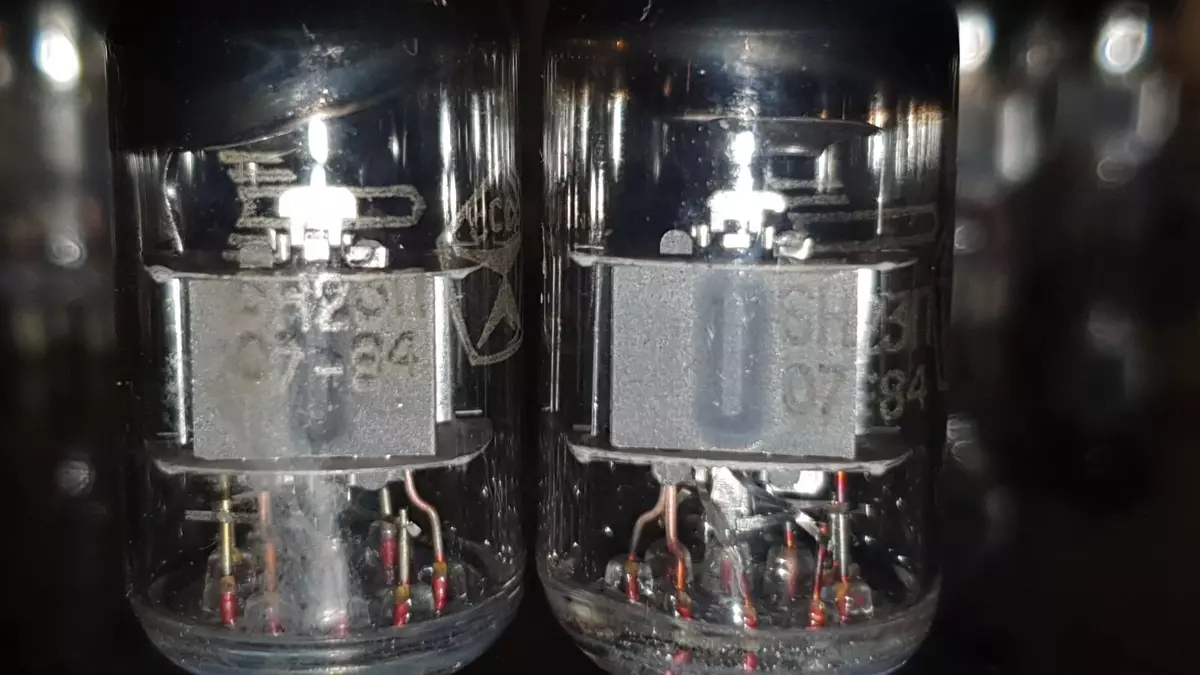

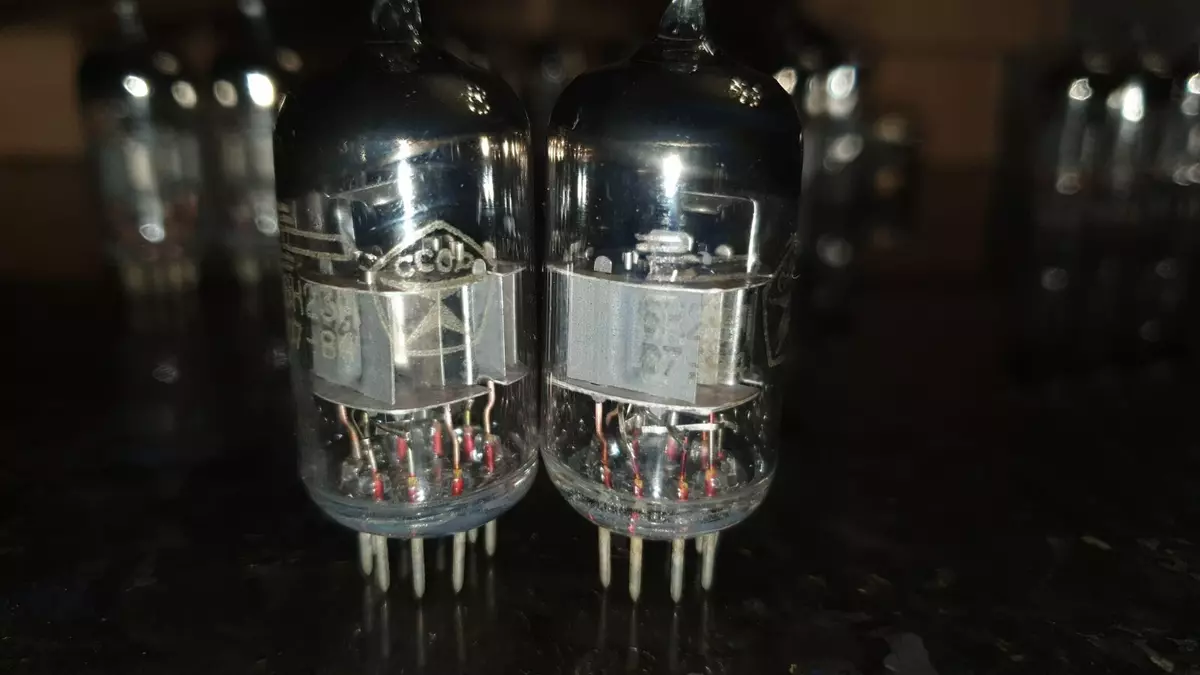

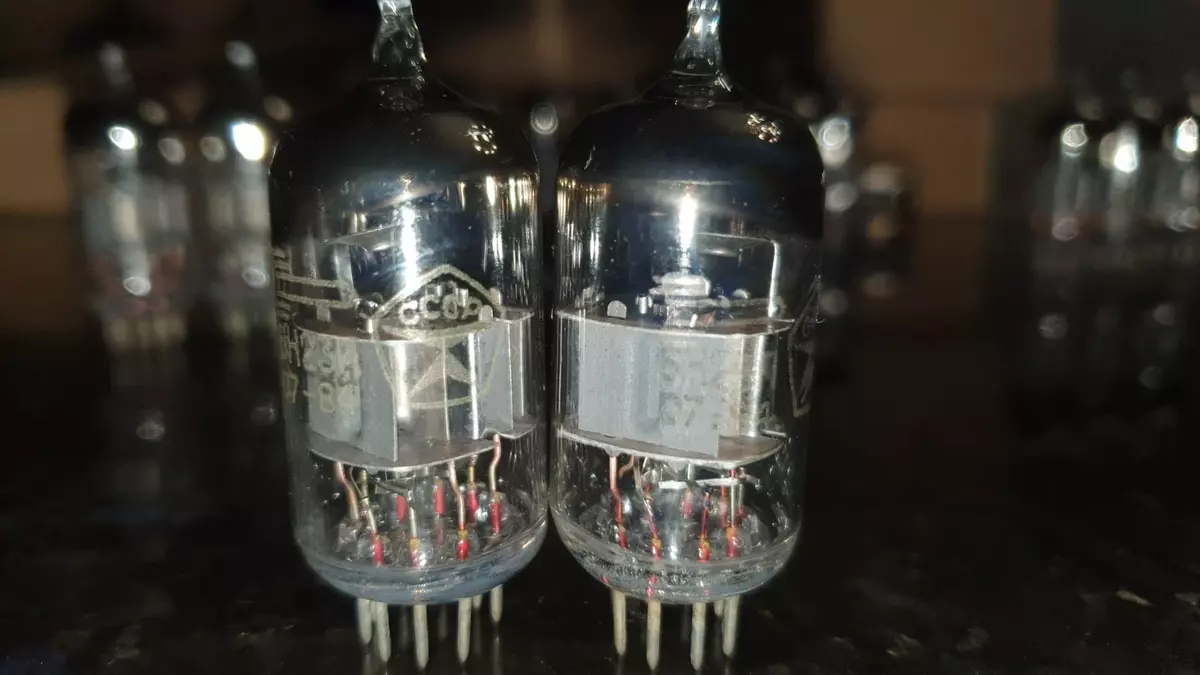

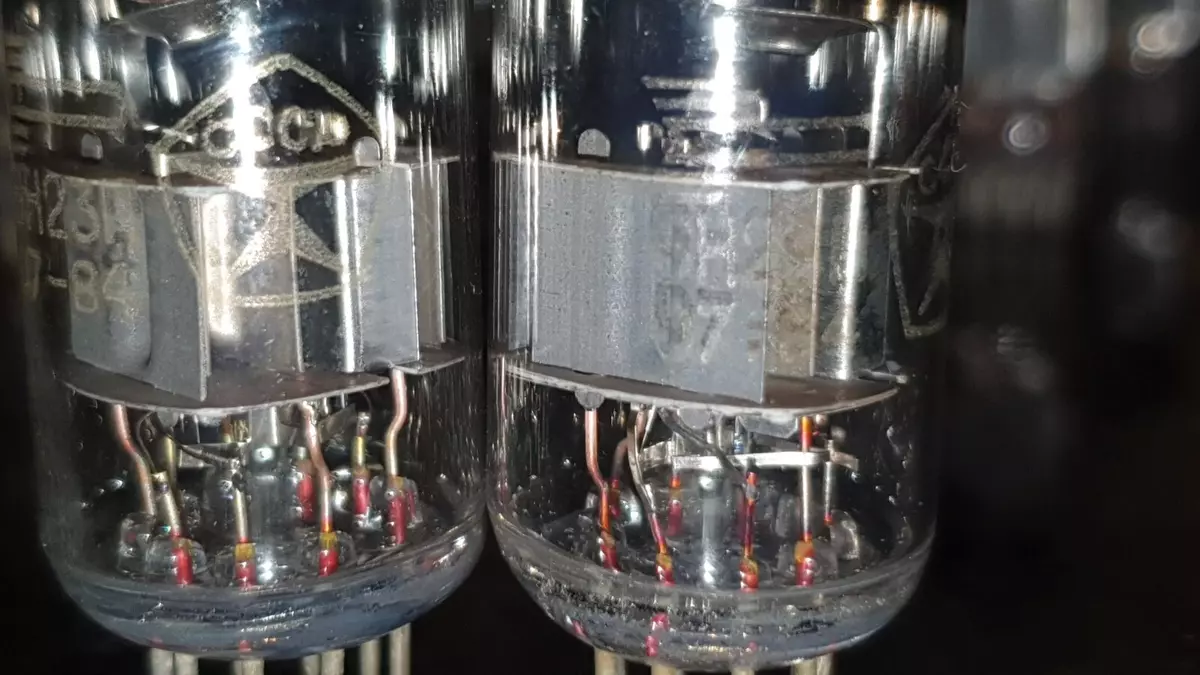

Matched pair 6N23P / E88CC/6DJ8 100% tested Voskhod Silver Shield tubes USSR
$18.88
(It may be possible to pay only $16.43 instead of $18.88 when you
use your bCredits at checkout)
Sign up and get $5.00 bCredits free to use at checkout and another $5.00 bCredits when you make your first purchase. More info
Share & earn! Sign in, share this or any listing, and you’ll get commission when it sells.
Learn more
View full item details »
Shipping options
Estimated to arrive by Thu, Jul 9th.
Details
$9.88 via International Shipping (2 to 3 weeks) to United States
Ships from
Moldova
Offer policy
OBO - Seller accepts offers on this item.
Details
Return policy
Full refund available within 30 days
Purchase protection
Catalog info
Payment options
PayPal accepted
PayPal Credit accepted
Venmo accepted
PayPal, MasterCard, Visa, Discover, and American Express accepted
Maestro accepted
Amazon Pay accepted
Nuvei accepted
View full item details »
Shipping options
Estimated to arrive by Thu, Jul 9th.
Details
$9.88 via International Shipping (2 to 3 weeks) to United States
Ships from
Moldova
Offer policy
OBO - Seller accepts offers on this item.
Details
Return policy
Full refund available within 30 days
Purchase protection
Catalog info
Payment options
PayPal accepted
PayPal Credit accepted
Venmo accepted
PayPal, MasterCard, Visa, Discover, and American Express accepted
Maestro accepted
Amazon Pay accepted
Nuvei accepted
Item traits
| Category: | |
|---|---|
| Quantity Available: |
Only one in stock, order soon |
| Condition: |
Used |
| Brand: |
ussr |
Listing details
| Shipping discount: |
No combined shipping offered |
|---|---|
| Posted for sale: |
June 17 |
| Item number: |
1809361149 |
Item description
“Silver Shield - 1970s - 1980s”
6?23?
Miniature double triode universal.
Designed to work as a broadband amplifier and mixer high frequency low noise and low power circuits of amplifiers and pulse generators.
Durability of at least 10000 h.
Weight 6?23? no more than 16 g.
Main technical characteristics 6?23?:
Filament voltage ...... 6,3 0,6 In
Filament current ...... 310 25 mA
The anode voltage nominal (constant) ...... 100
The anode voltage limit (constant) ...... 300 In
The anode current of each triode ...... 15 mA
The cathode current limiting ...... 20 mA
The cathode current limit (pulse amplitude) ...... 200 mA
Voltage grid (constant) ...... 9 In
Grid voltage limit (pulse amplitude) ...... 260
The power dissipated by the anode limit ...... 1.8 W
The power dissipated by the grid limit ...... 0.03 W
The voltage between cathode and heater limit (DC) ...... -200 To
The steepness of the characteristics of each triode ...... The 12.7 mA/V
The gain of each triode 34 9
The input impedance at the frequency of 200 MHz ...... 500 Ohm
The equivalent resistance of the noise vnutrishnih...... 300 Ohm
Resistance in the cathode circuit to automatically bias ...... 680 Ohm
The resistance in the grid circuit limiting ...... 1 M?
The input capacitance of each triode ...... 3,6 pF
The capacity output of the first triode ...... 2,1 pF
The capacity output of the second triode ...... 1,9 pF
The feed-through capacitance of each triode ...... 1.5 pF
Capacity anode - cathode of each triode ...... 0,18 pF
The capacitance between the anodes ...... not more than 0.06 pF
The capacitance between nets ...... not more than 0.005 pF
Design ...... glass miniature.
100% Original NEW made in USSR
