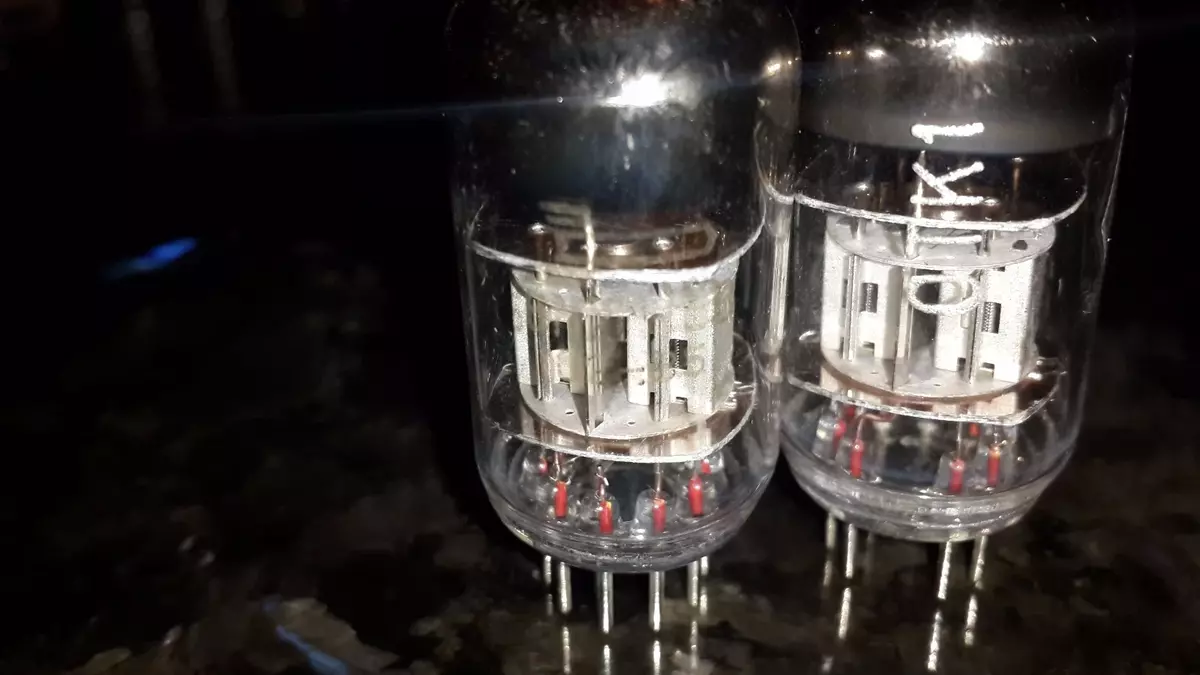

2 X 6N2P-EV =6N2P =6N2~ ECC83 ~12AX7 Voskhod and similar items

6N2P-EB Dual miniature triode increased durability, reliability and mechanical strength. Designed for low-frequency voltage gain. The durability of at least 5000 hours. Weight not more than '15 Basic specifications for 6N2P-EB: Heater voltage ...... 6,3 0,6 In Current glow ...... 340 25 mA Anode voltage rating (continuous) ...... 250 Anode voltage limit (DC) ...... 300 Each of the anode current of the transistor ...... 2,3 0,9 mA Cathode current of each transistor limiting ...... 10 mA Voltage grid (continued) ...... -1.5 Reverse grid current of each transistor ...... 0.2 uA The power dissipated by each anode, limiting ...... 1 W The voltage between the cathode and the heater limit (DC) 100 V ...... Tension between the anodes ...... no more than 2 The steepness of the characteristics of each transistor ...... 2,1 0,5 mA / V The gain of each transistor ...... 97,5 17,5 The resistance in the grid circuit limit ...... 0.5 MW The capacity of each input transistor ...... 2,35 0,35 pF The capacity of the first output transistor ...... 2,5 0,5 pF The capacity of the second output transistor ...... 2,5 0,5 pF Capacity communicating each transistor ...... 0.8 pF The capacitance between the anodes ...... no more than 0.15 pF Capacity of cathode heater ...... no more than 5 pF Making cameo glass ....... The content of precious metal in the lamp 6N2P e-EB. Gold: 0 grams. Silver: 0.000549 grams. Platinum: 0 grams. Palladium: 0 grams. Note about Feedback: Please leave me feedback when you receive your item and are happy with the transaction. If you have any questions or concerns, PLEASE contact me first before leaving negative feedback. I always strive to resolve any problems and make our customers happy. Note About Delivery Time: I try to send your item as soon as possible, Normally no later than 3 days after payment is received. arrive time is contingent on the carrier.
