Clear Com PS-702 2 Channel 2 Amps Universal and 17 similar items

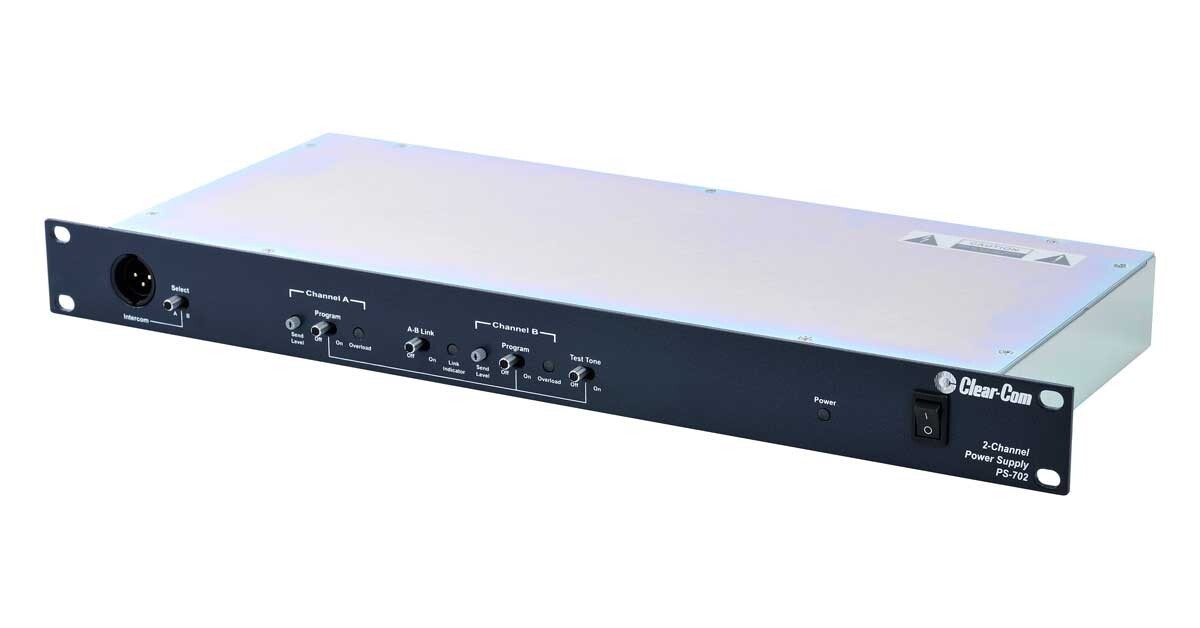

Clear Com PS-702 2 Channel 2 Amps Universal Power Supply Intercom System The PS-702 can supply up to two amps at 30 volts DC to two channels in a 1RU. This is sufficient to power up to 40 beltpacks, ten speaker stations, or 12 headset stations even under the most demanding conditions. Either channel is capable of supplying up to 1.2 amps. The full current capacity may be divided between the two channels. The PS-702 displays whether there is a short or an overload. If either of these issues occur, each channel?s DC overload/fault LED identifies the power supply?s response. If the LED is solid, an overload has been sensed but the unit is still being powered. If the LED is blinking, power has been temporarily cut to protect the power supply. If both channels are operating and one channel has a fault, the other channel will continue to operate normally. Power can be restored to the shorted or overloaded channel within 0.5 seconds or more. With Intelligent Fault/Overload Sensing (IFOS), the PS-702 dynamically increases this time period before attempting another reset until the fault or overload is corrected. There is no need to disconnect stations for the power supply to reset. The unit also powers a front panel intercom line jack, switchable to either channel. A 440Hz tone is available on either or both channels for system diagnostics and set-up. Two or more units can be connected in parallel for increased system capacity or backup redundancy. Multiple units will automatically synchronize their response to power faults and overloads. The PS-702 can also operate as a single channel unit by using the front-panel A+B link switch. Features: 2-Channel Provides up to 2 amps at 30 Volts Supports up to 40 beltpacks, 10 speaker stations, or 12 headset stations Full current capacity can be divided between the two channels Exclusive Intelligent Fault/Overload Sensing (IFOS) for system reset A+B Link switch for single-channel operation Built-in test tone generator for set up and diagnostics UL listed and CE certified Line and load regulated Short-circuit protected Specifications: Program Line Input Maximum Level before Clipping: = 20dBu Input Impedance: = 5K Frequency Response: Program Input ? Partyline: 200 ? 20kHz 3dB Max Distortion: Program Input ? Partyline: = 0.2% Noise: Program Mic Input ? Partyline: -70dBu Max Gain: Program Input ? Partyline: = -16dB Min Gain: Program Input ? Partyline: = -20dB Mains Power: Input Voltage Range: 100 ? 240V AC Input Frequency Range: 50 ? 60Hz Input Power: = 60V AC Output Voltage: 30V DC 0.5V Output Current per Channel (Continuous): 1.2A Output Current per Channel (Peak): 2A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period) Short Circuit Recovery Time (1st short): = 0.5 sec Short Circuit Recovery Time: = 20 shorts in 20sec) = 20 sec Environmental: 32 ? 122F (0 ? 50C) Dimensions: 1.75 x 19 x 7.5in (HxWxD) (44 x 483 x 190mm) Weight: 6.16lbs (2.80kg) Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping --Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
