Clear Com PS-702 2 Ch 2 Amp Power Supply and 17 similar items

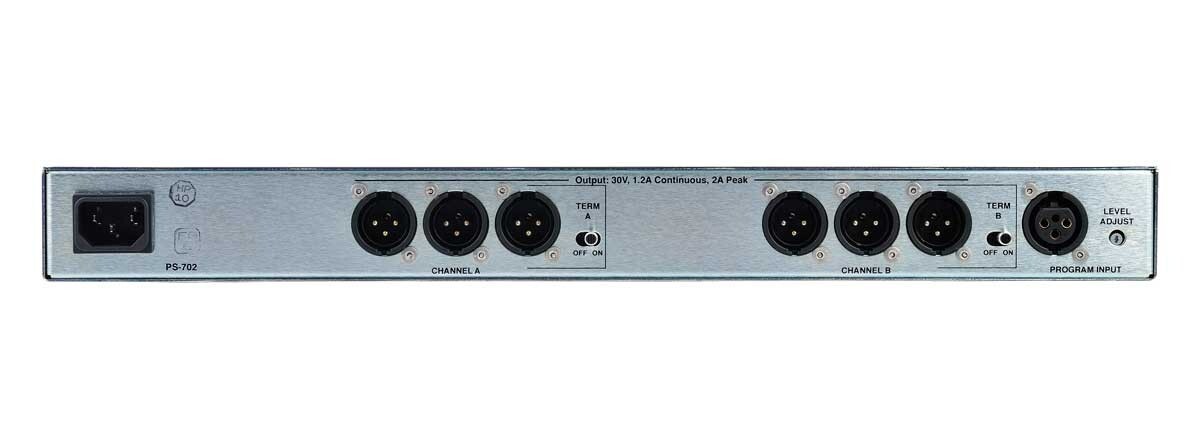

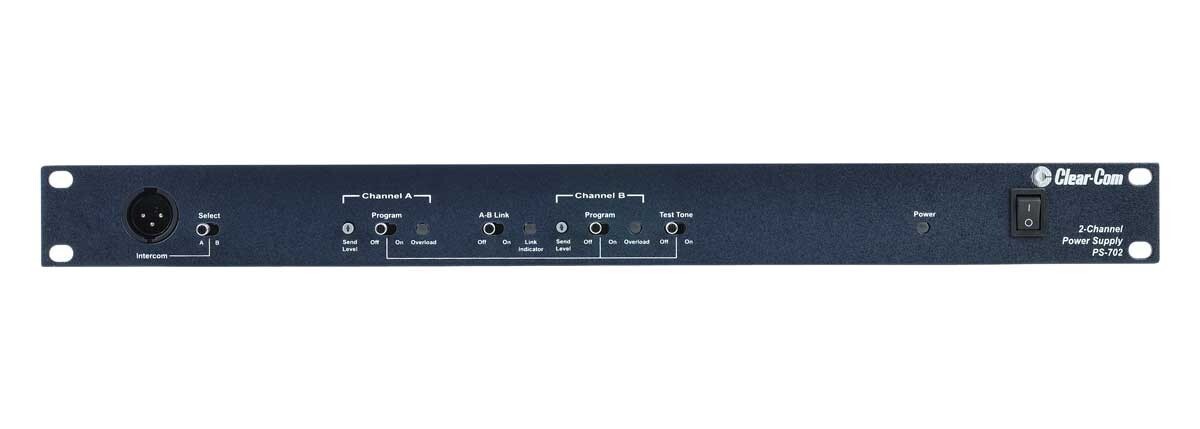

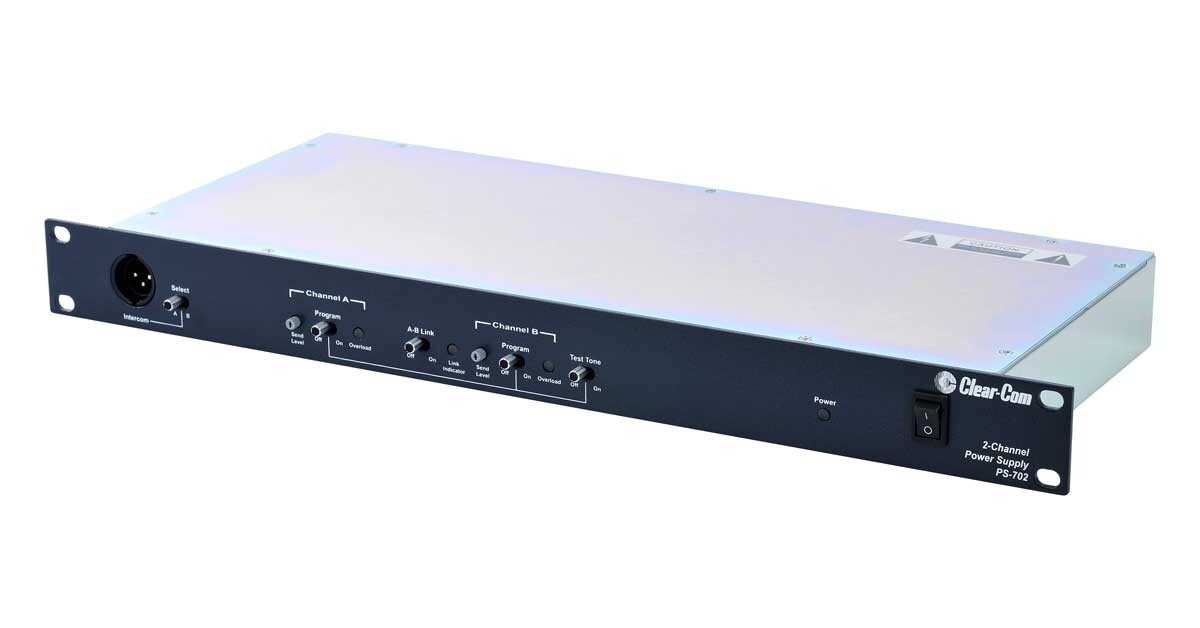

Clear Com PS-702 2 Ch 2 Amp Power Supply Encore Analog Partyline Intercom System The PS-702 can supply up to 2 amps at 30 volts DC to two channels in a 1RU. This is sufficient to power up to 40 beltpacks,10 speaker stations, or 12 headset stations even under the most demanding conditions. Either channel is capable of supplying up to 1.2 amps. The full current capacity may be divided between the two channels. Features: Provides up to 2 amps at 30 Volts Supports up to 40 beltpacks, 10 speaker stations, or 12 headset stations Full current capacity can be divided between the two channels Exclusive Intelligent Fault/Overload Sensing (IFOS) for system reset A+B Link switch for single-channel operation Built-in test tone generator for set up and diagnostics UL listed and CE certified Line and load regulated Short-circuit protected Specifications: Program Line Input Maximum Level before Clipping: = 20dBu Input Impedance: = 5K Frequency Response Program Input ? Partyline: 200 ? 20kHz 3dB Max Distortion Program Input ? Partyline: = 0.2% Noise Program Mic Input ? Partyline: -70dBu Max Gain Program Input ? Partyline: = -16dB Min Gain Program Input ? Partyline: = -20dB Mains Power Input Voltage Range: 100 ? 240V AC Input Frequency Range: 50 ? 60Hz Input Power: = 60V AC Output Voltage: 30V DC 0.5V Output Current per Channel (Continuous): 1.2A Output Current per Channel (Peak): 2A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period) Short Circuit Recovery Time (1st short): = 0.5 sec Short Circuit Recovery Time: = 20 shorts in 20sec) = 20 sec Environmental 32 ? 122F (0 ? 50C) Dimensions 1.75 x 19 x 7.5in (HxWxD) (44 x 483 x 190mm) Weight 6.16lbs (2.80kg) Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping -Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - Clearance items, Custom Builds, Road Cases, DT12 items, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, turntable cartridges, fog fluid
