Banana Pi Bpi-R4 Wifi 7 Wireless Dual-Band and 47 similar items

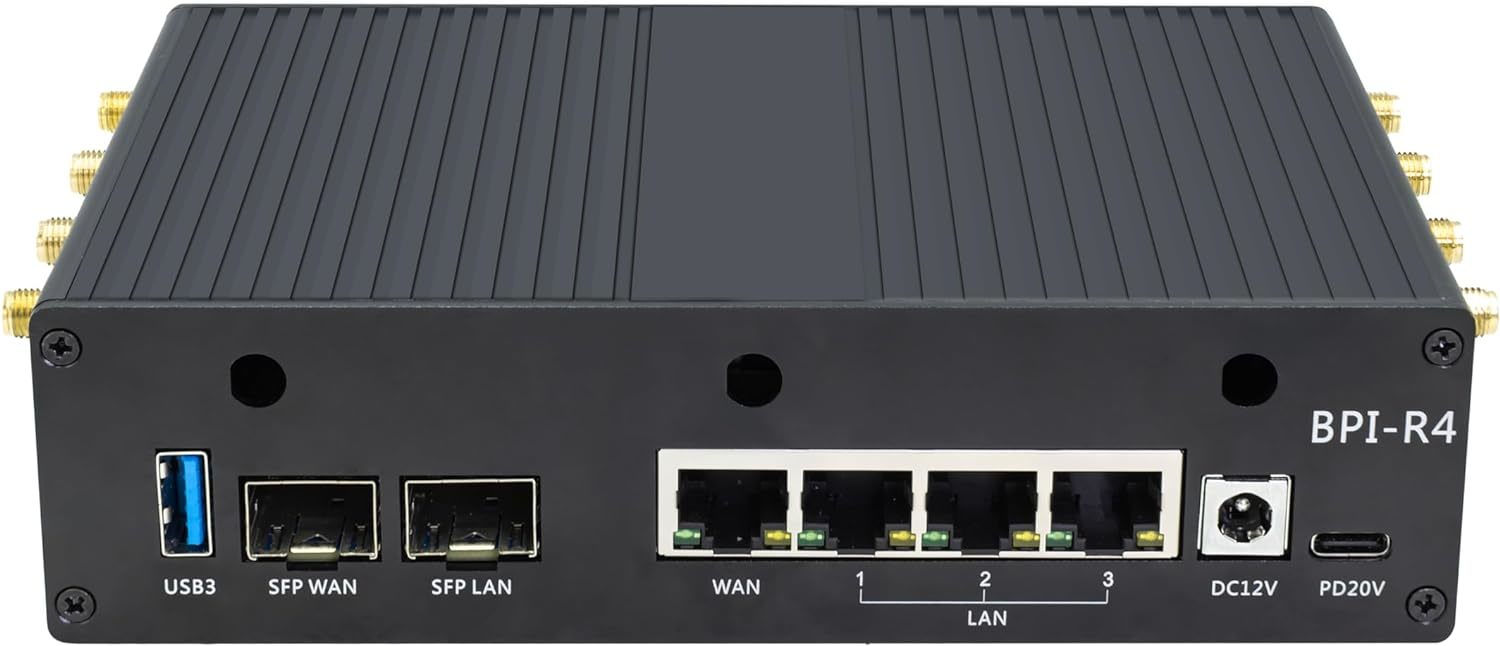

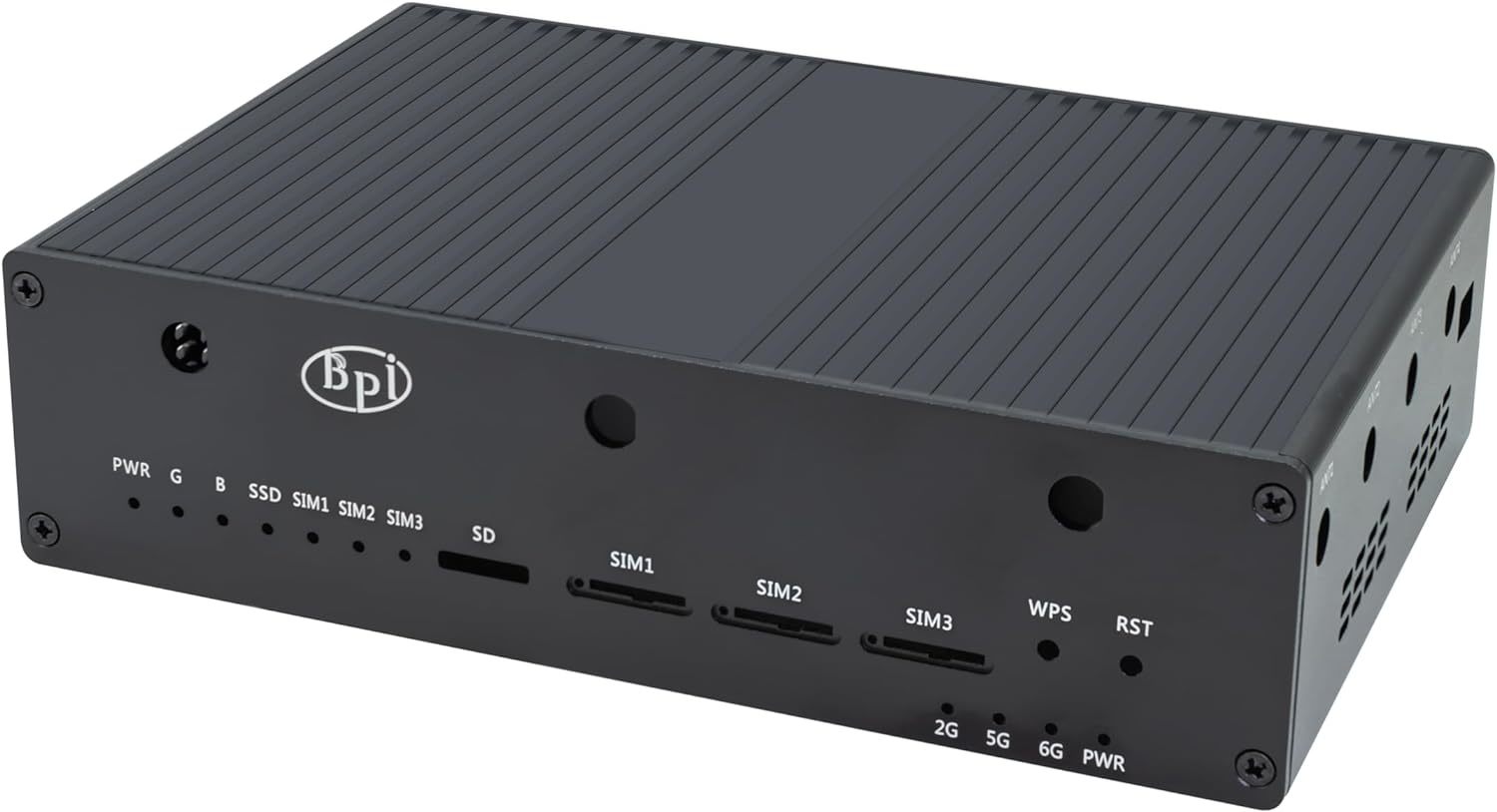

Banana Pi Bpi-R4 Wifi 7 Wireless Dual-Band Wifi Router Board, Metal Case -Specification- CPU: MediaTek MT7988A (Filogic 880) Quad-Core Arm Corex-A73,1.8GHz Processor SDRAM Memory: 4GB DDR4 memory Onboard Storage: 8GB eMMC, support MicroSD (TF) cardholder GPIO: 26 Pin GPIO, 26 Pin GPIO, supports UART, I2C, SPI, PWM, I2S. Network Interface: 4 Port 10/100/1000Mbps Gigabit Ethernet Port SFP Optical Ports: 2x10G SFP optical ports or 1x10G SFP optical port plus 1x 2.5GbE port mini PCIE: 2x miniPCIe PCIe3.0 interfaces supporting Wi-Fi 7 NIC (Network Interface Card) M.2 interface. 1x M.2 KEY-B interface using USB3.2, supports 5G, 1x M.2 KEY-M interface adopts PCIe3.0 interface, supports NVME SSD hard disks USB: 1xUSB 3.2 Interface Buttons: Reset button, WPS button, boot switch button Leds: Power status Led and RJ45 Led DC Power: 12V/5.2A or 19V 3.2A Dimension: 100.5x148x20mm Weight: 250g -Package Content- Banana Pi R4 Wifi 7 Router Board Bundle x1 (show as picture) -Technical Support- Wiki:"wiki.banana-pi.org/Banana_Pi_BPI-R4". Getting Started with BPI-R4: "wiki.banana-pi.org/Getting_Started_with_BPI-R4". Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo com (#--- @, --- .)" or skype: monica_9122. Product Features [MediaTek MT7988A CPU] Banana Pi BPI-R4 Router Board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 CPU design, 4GB DDR4 RAM 8GB eMMC and 128MB SPI-NAND flash onboard, works as 36Gbps Wi-Fi 7 access point/router/gateway. It is also a very high performance open source router development board. [High Performance Chips] The MediaTek MT7988A SoC is the world's leading network processing platform that delivers a high-performance and reliable network experience for wired and wireless applications. At the same time, the MT7988A is equipped with MediaTek's Tunnel Offload Processor System (TOPS), which easily handles a wide range of tunneling protocols. [Support 2x 10Gbe SFP/4x Gbe] Banana Pi BPI-R4 wireless dual-band wifi router board support 2x 10Gbe SFP and 4x Gbe ethernet with 4 Port 10/100/1000Mbps Gigabit Ethernet port, also with USB3.2 port and M.2 interface, support 4G/5G signal reception and NVME SSD.Providing the fastest and most reliable network connection. [Support WiFi7 iPA NIC Module] Banana Pi BPI-R4 wireless three-band router board onboard 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card). MediaTek MT7988A enables seamless Wi-Fi 7 tri-band, 2.4GHz, 5GHz and 6GHz connectivity, with its Wi-Fi 7 companion chip that features 320-MHz bandwidth, 4096-QAM, MLO, MRU and AFC. [Rich Peripheral interfaces] Banana Pi BPI-R4 wireless router board onboard 2x 10Gbe SFP Optical ports, 4x Gbe Gigabit LAN ports, 1x USB3.2 port, 3x Nano SIM Slot, 1x M.2 KEY-B connector for 5G, 1x M.2 KEY-M connector for 2280 NVME SSD, mPCle Slot for Wi-Fi NIC, 1x MicroSD Slot(TF), 1x Debug UART port, 1x 26 Pin GPIO, supports UART, I2C, SPI, PWM, I2S. [Application Scenarios] Banana Pi BPI-R4 Router Board can be applied to Internet service Router, Wifi 7 Wireless Router, 4G/5G Wireless Router, Wireless Repeater, Home security Gateway, Home Automation, Nas device, Gaming Wifi Routers, Network and Communication Applications. It can be used as 36Gbps Wi-Fi 7 Access Point Router Gateway. [Wiki] SDK Document: "wiki.banana-pi.org/Banana_Pi_BPI-R4"; All after-sales questions please click "WayPonDEV" store and ask the question. Or please leave the message to "wpd#youyeetoo com (#--- @, --- .)". Shipping: Shipping is complimentary within the lower 48 US States. We Do Not Ship to PO/APO Boxes, HI or Alaska We Do Not Ship Outside of the Continental US All items ship within 24-72 hours of Payment For large items that require Freight shipping a valid phone number is required to call and schedule your delivery Terms of Sale and Feedback: Feedback is extremely important to us and If you are satisfied with our transaction, please take a moment to leave Positive Feedback. YOUR Satisfaction is our #1 Priority! If there are any issues, PLEASE contact us BEFORE leaving a neutral or negative rating so that we may resolve any concerns. We PROMISE we can make you happy if you give us a fair chance. Returns / Concerns: All items qualify for returns within 14 - 30 days of receipt. Buyer is responsible for return shipping on any item that is not damaged Please be sure this is an item you want before making your purchase. Customer Satisfaction is our TOP priority! All items are IN STOCK at time of listing. Inventory changes constantly and it is impossible to maintain a perfectly accurate count of all items. Please do not penalize us if we have to issue you a refund! Thank You For Your Business!
