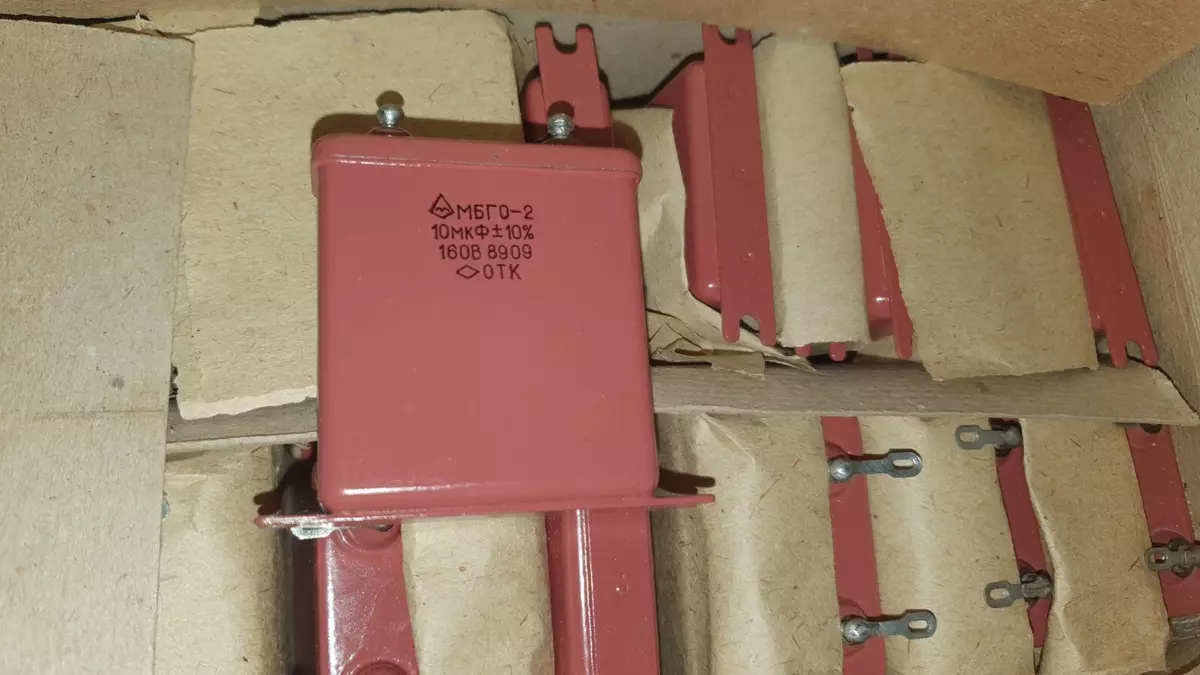

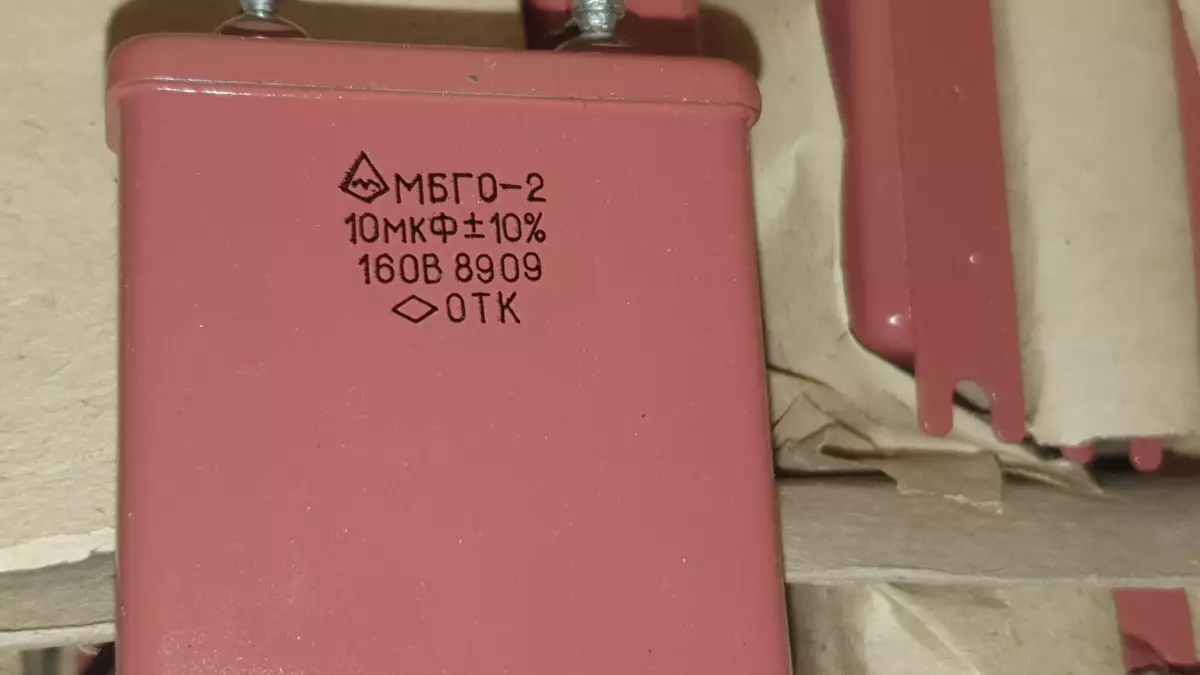

Capacitor MBGO-2 160 V 10.0 uF +/-10% USSR and 50 similar items

MBGO-2 160 v 10 uf MBGO metal-paper single-layer capacitors of constant capacity, high-voltage pulse. Sealed sealed in a rectangular metal case with petal terminals for mounted mounting. Designed for operation in DC and pulsating current circuits, the formation of powerful discharge current pulses in the load. According to the method of fastening, capacitors differ in the presence or absence of special mounting plates on the housing. Design options: - MBGO-1 without mounting plates; - MBGO-2 with mounting plates. They are made in execution for moderate and cold climates [UHL5.1] and all-climatic [B2.1] according to GOST 15150-69. Technical conditions: - acceptance of "OTC" OZH0.462.124 TU; TU 6281-001-32796130-00; - acceptance of "5" OZH0.462.023 TU. The main technical parameters of MBGO capacitors: - Range of nominal capacities ....... 0,5... 30,0 ICF; - Rated voltage ....... 160; 300; 315; 400; 500; 630 In; - Permissible capacity deviations ....... 10; 20 %; - Tangent of the loss angle, no more ....... 0.025; - Insulation resistance of the output-housing, not less than ....... 5000 mOhm; - Insulation resistance output-output, not less than ....... 250 mOhm; - Relative humidity at +35 C ....... 98 %; - Temperature range ....... -60... +60 With; - Minimum operating time ....... 20000 hours;
