Bussmann Krpc 2000 Fuse KRP-C 2000 600 Volt and 14 similar items

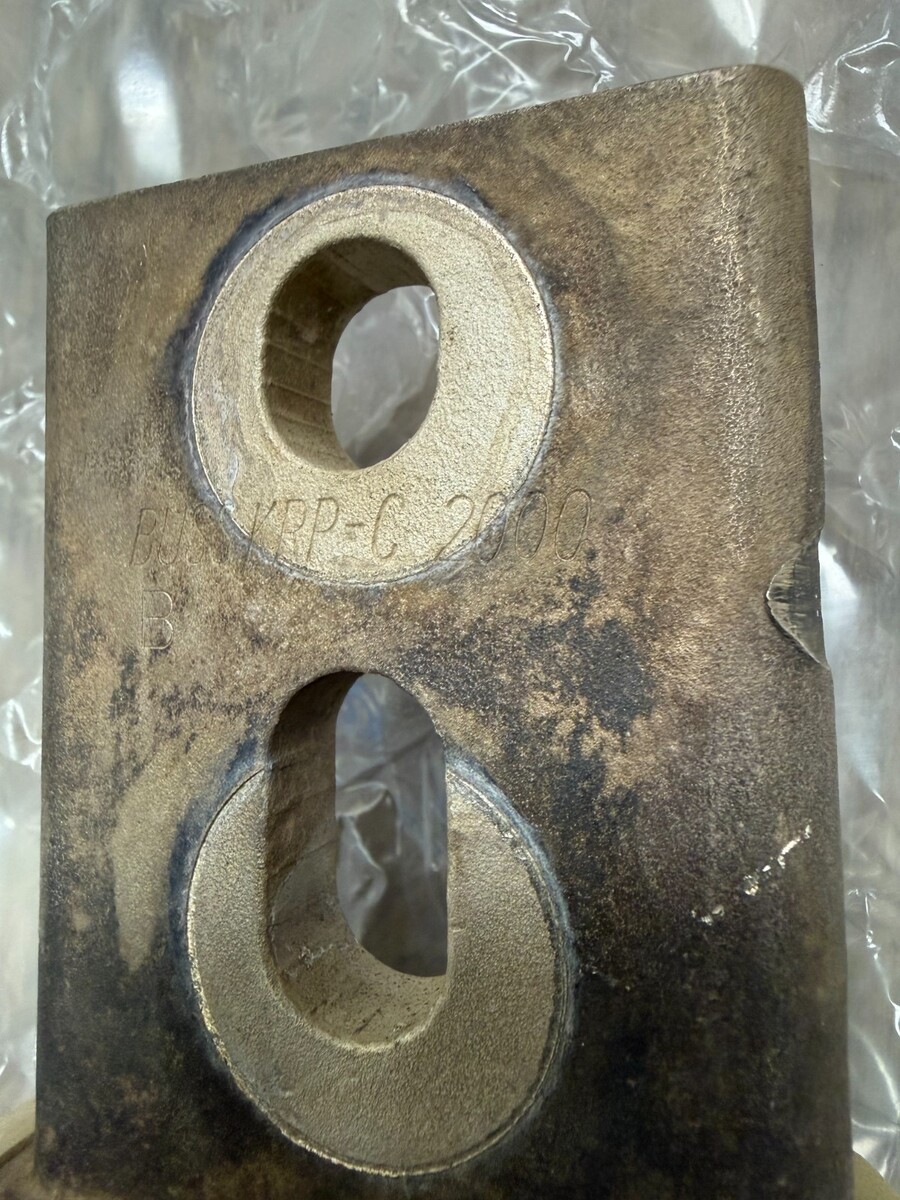

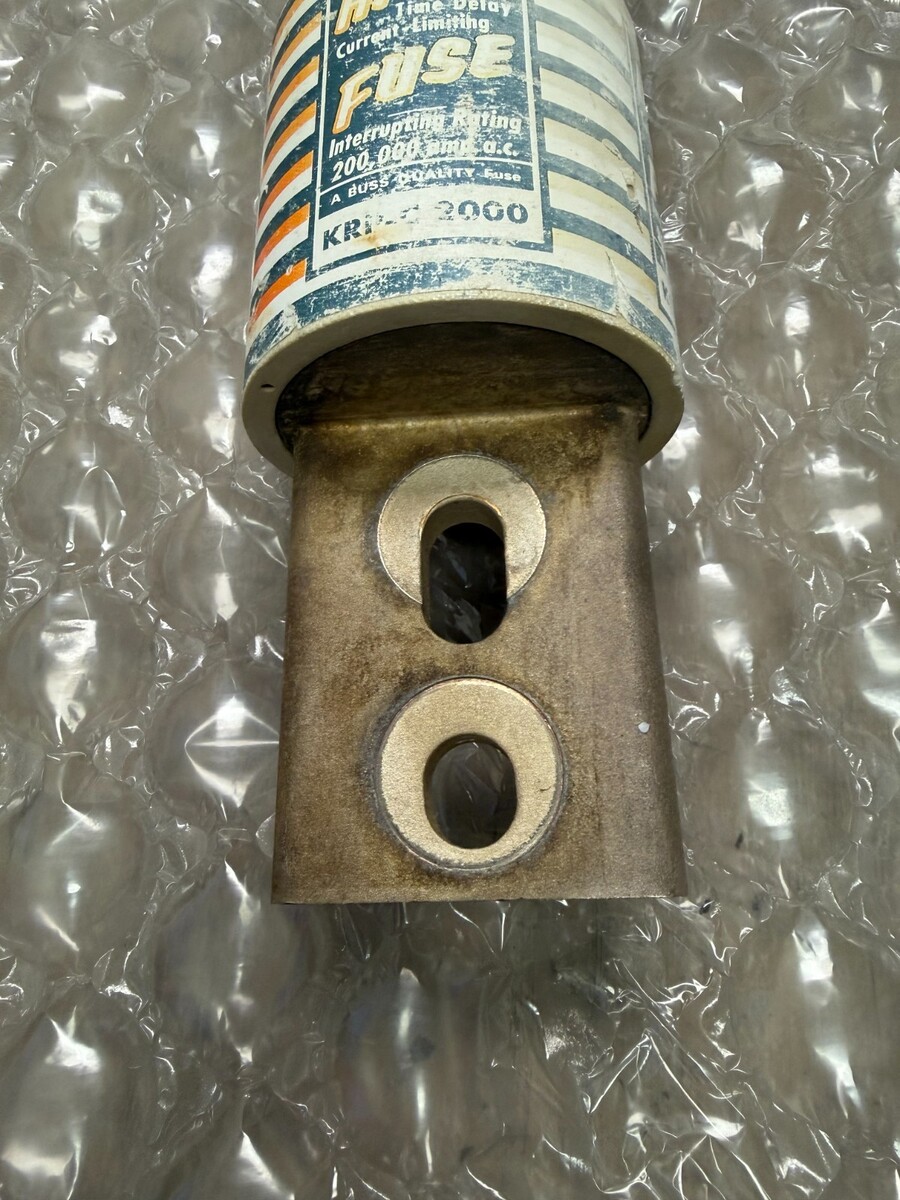

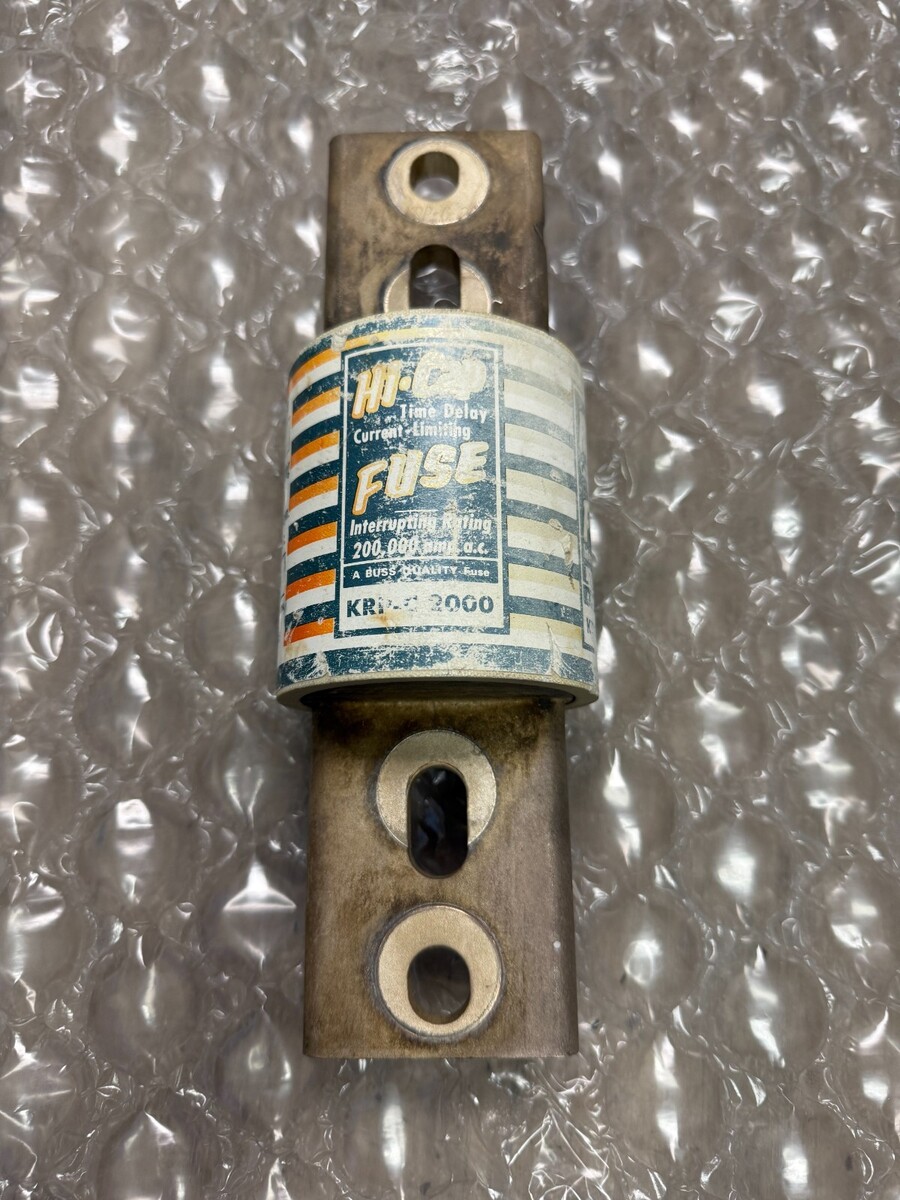

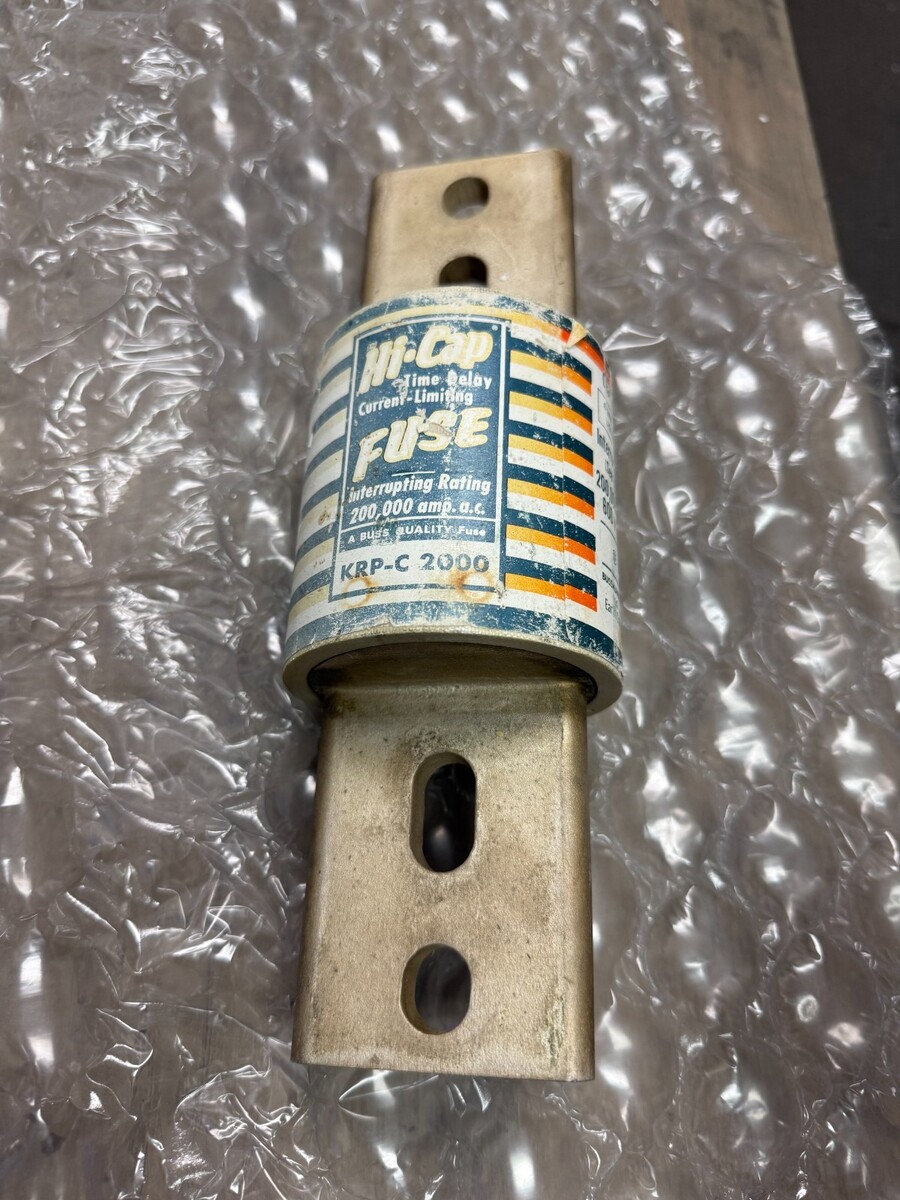

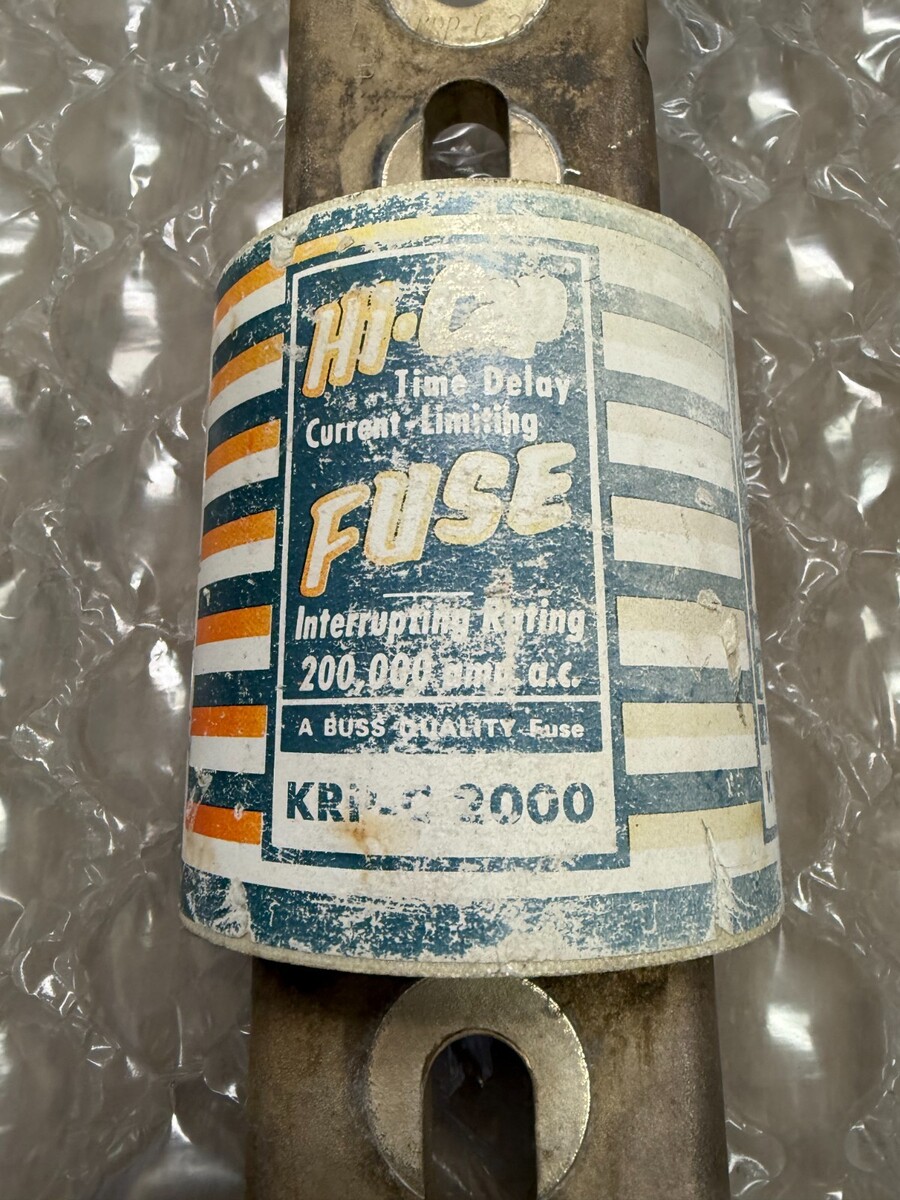

BUSSMANN KRPC 2000 FUSE KRP-C 2000 600 VOLT 2000 AMP HI-CAP PRE OWNED/ NORMAL WEAR The Bussmann KRP-C-2000 (KRPC2000) is a heavy-duty industrial Class L, current-limiting, time-delay fuse designed to protect large electrical distribution systems, switchboards, motor control centers, and industrial equipment. It is part of the Bussmann Low-Peak series. BUSSMANN KRPC 2000 FUSE KRP-C 2000 600 VOLT 2000 AMP HI-CAP Key Specifications Specification Value Fuse Type Class L, Time-Delay, Current-Limiting Amp Rating 2000 A Voltage Rating 600 VAC / 300 VDC Interrupting Rating 300,000 AIC @ 600 VAC Response Minimum 4 seconds at 500% rated current Dimensions Approximately 3.5 in. diameter 10.75 in. length Mounting Knife-blade / bolt-on terminals Series Bussmann Low-Peak KRP-C Typical Applications Main service disconnects Large switchgear and switchboards Industrial feeder circuits Large motors and machinery Power distribution systems with high available fault current The 300 kA interrupting rating is one of the reasons these fuses are widely used in industrial facilities with very high fault-current availability. SHELF: WH RED CABINET SA
