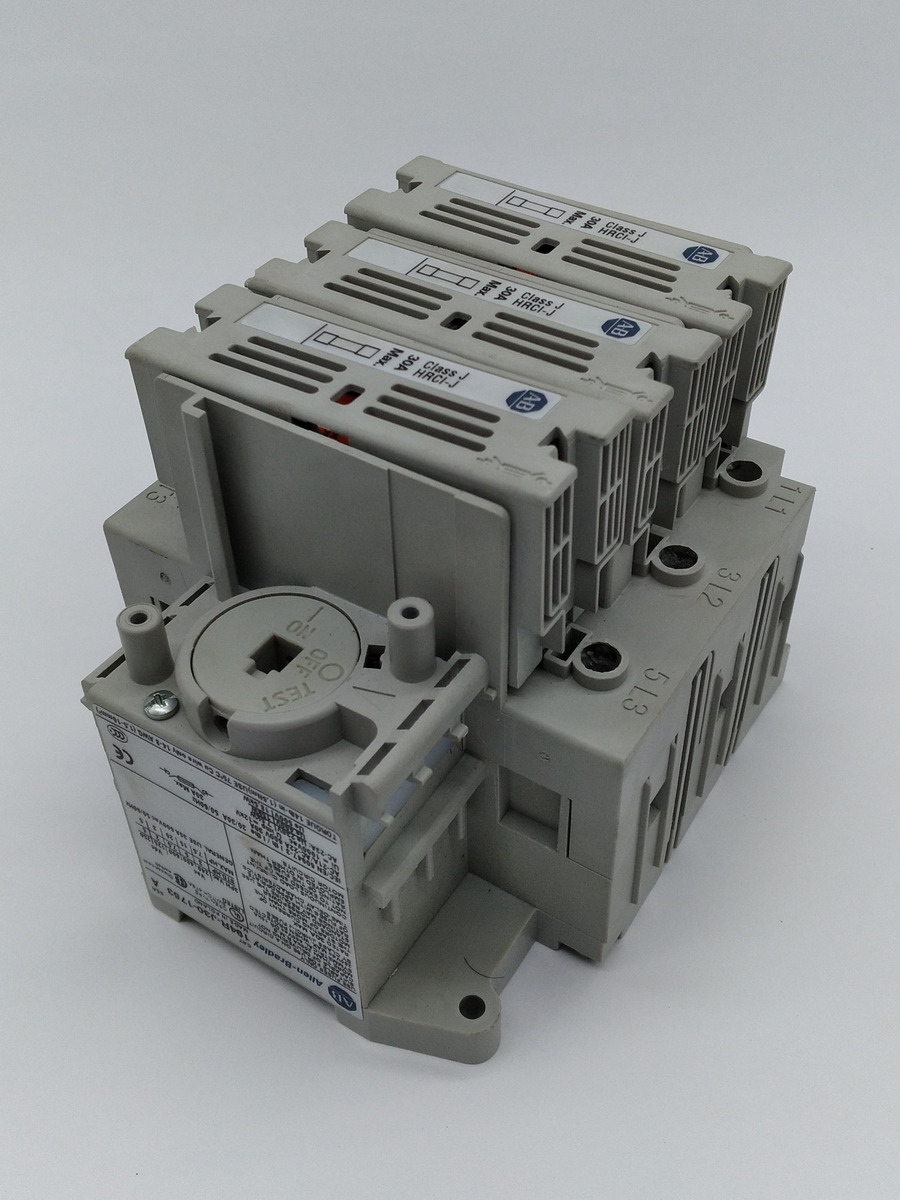

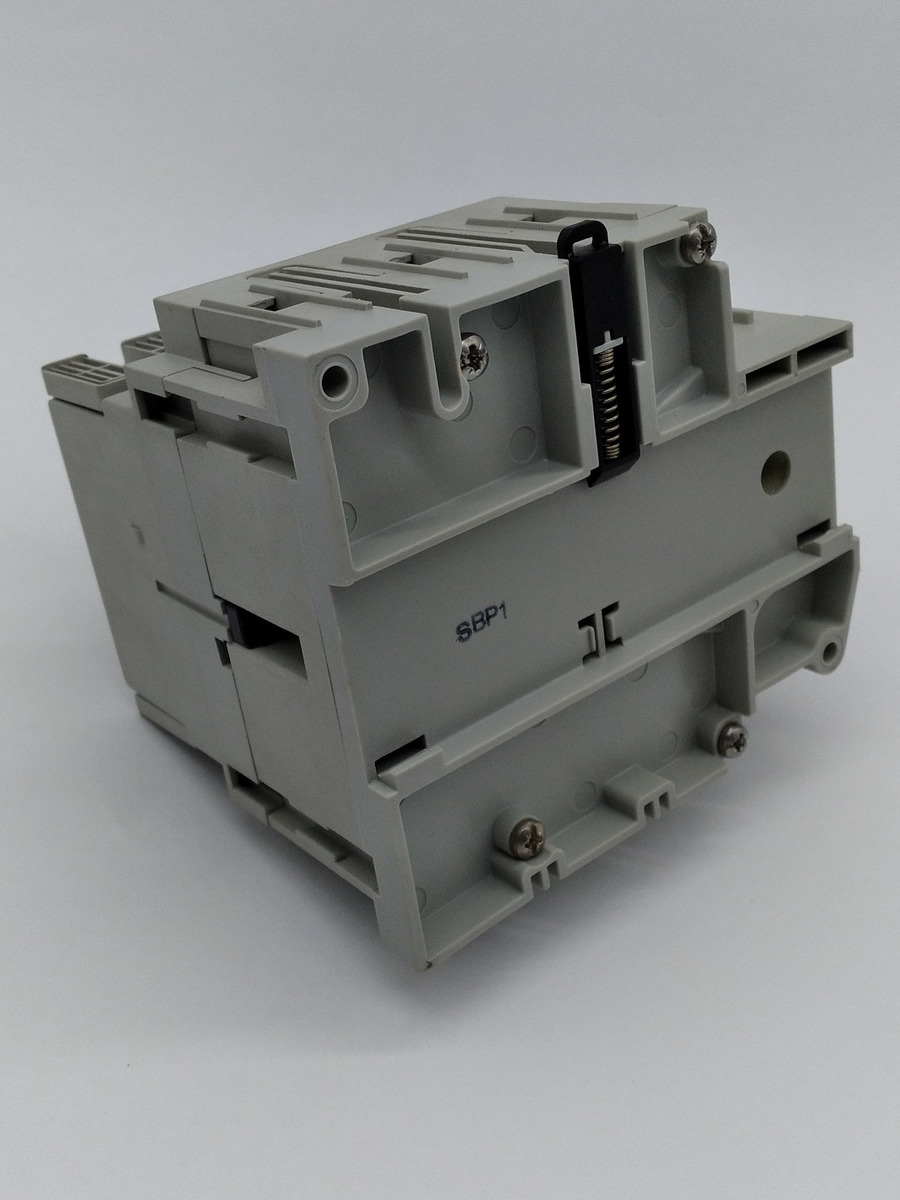

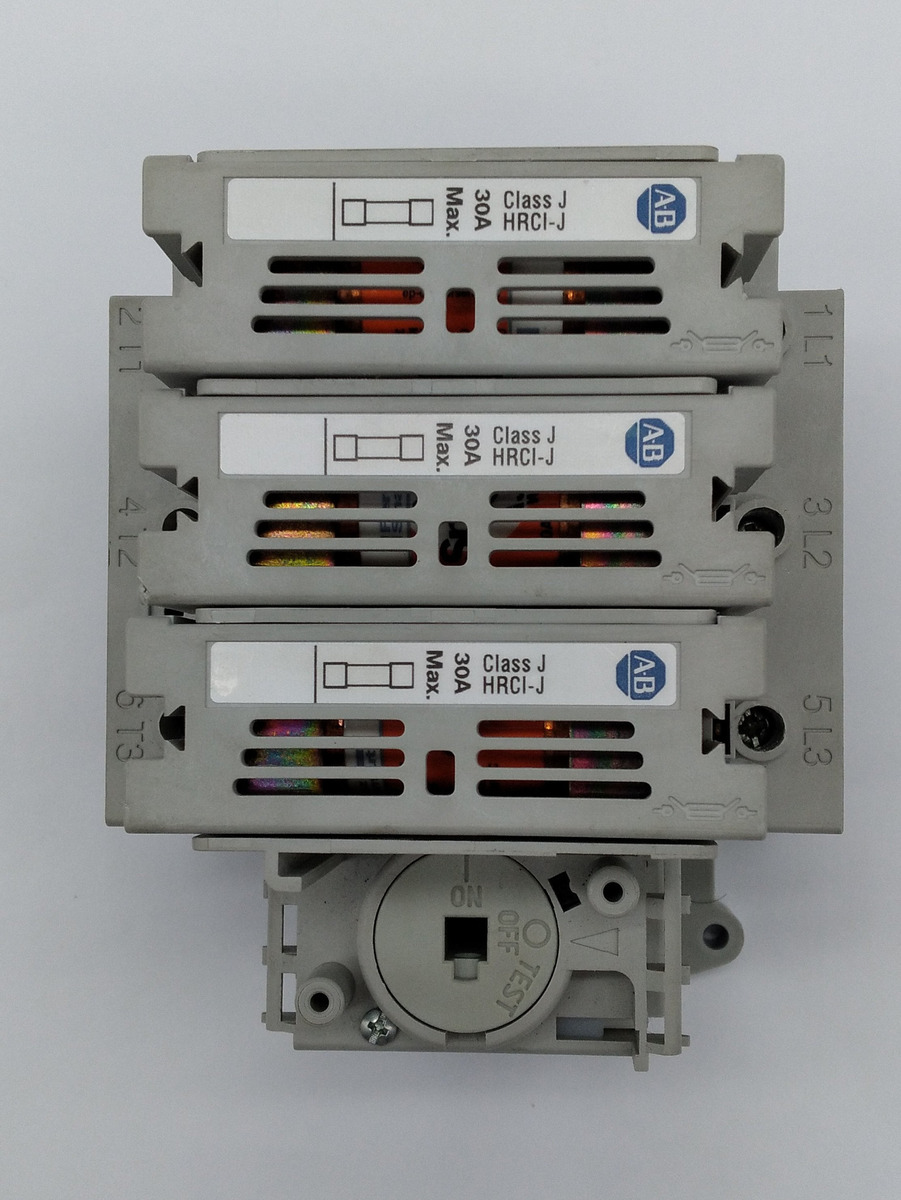

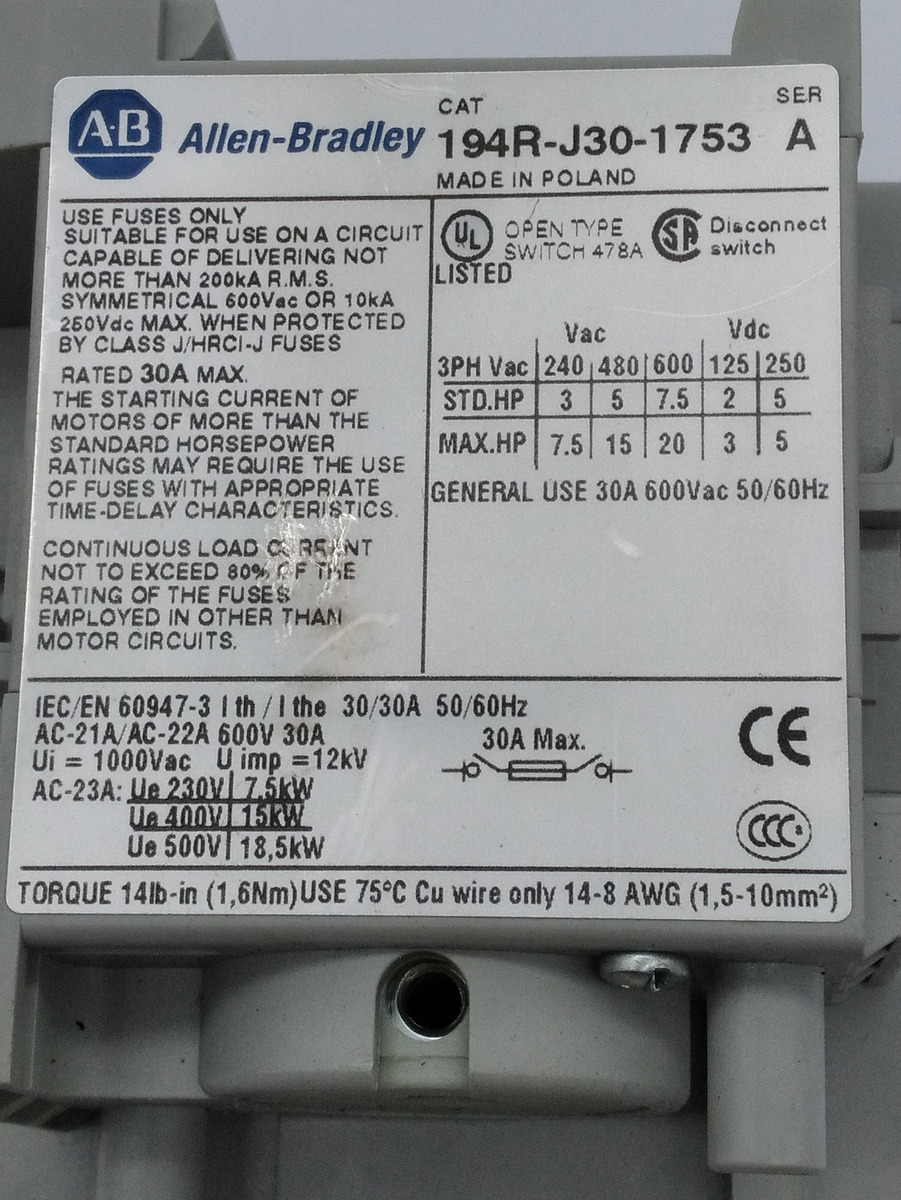

Allen-Bradley 194R-J30-1753 SER.A Disconnect Switch, 600VAC/250DC 30Amp 18.5kW Condition: Used Dimensions: 8.00 x 8.00 x 8.00 inches (L x W x H) Weight: 3.00 Lbs. The Allen?Bradley 194R?J30?1753 Series A is a heavy?duty rotary disconnect switch designed for safe isolation of electrical circuits in industrial applications, providing reliable manual disconnection, high interrupting capacity, and compact panel or base mounting for motor and power distribution systems. Manufacturer: Allen?Bradley (Rockwell Automation) Manufacturer part number: 194R?J30?1753 Series: 194R Revision: Series A Product type: Rotary disconnect switch Function: Main isolator / load break switch Rated operational voltage AC: Up to 600 V AC Rated operational voltage DC: Up to 250 V DC Rated operational current AC?21A: 30 A Rated operational current AC?23A: 22 A Rated thermal current Ith: 30 A Rated motor power at 400 V AC: 15 kW Rated motor power at 500 V AC: 18.5 kW Rated motor power at 600 V AC: 20 HP Number of poles: 3 Switching category: AC?21, AC?23 Frequency: 50/60 Hz Rated impulse withstand voltage: 6 kV Short?circuit withstand rating: Suitable with upstream protection Actuator type: Direct rotary operating mechanism Handle mounting: Direct mount or door?coupled (handle not included) ON/OFF indication: Mechanical position indication Mounting type: Base mount Terminal type: Screw terminals Conductor size: 14?4 AWG stranded or solid Torque tightening: 18 lb?in (2.0 Nm) Protection degree: IP20 (higher with enclosure) Housing material: Industrial thermoplastic Operating ambient temperature: ?25 to 60 C Storage temperature: ?40 to 70 C Standards and approvals: IEC, UL, CSA, CE, CCC Typical applications: Motor isolation, machinery main disconnects, industrial control panels Manufacturing country: Poland Please review pictures carefully and let us know if you have any questions! Powered by KiipList.com
