Indoor 70A Homeline Main Lug Load Center No. and similar items

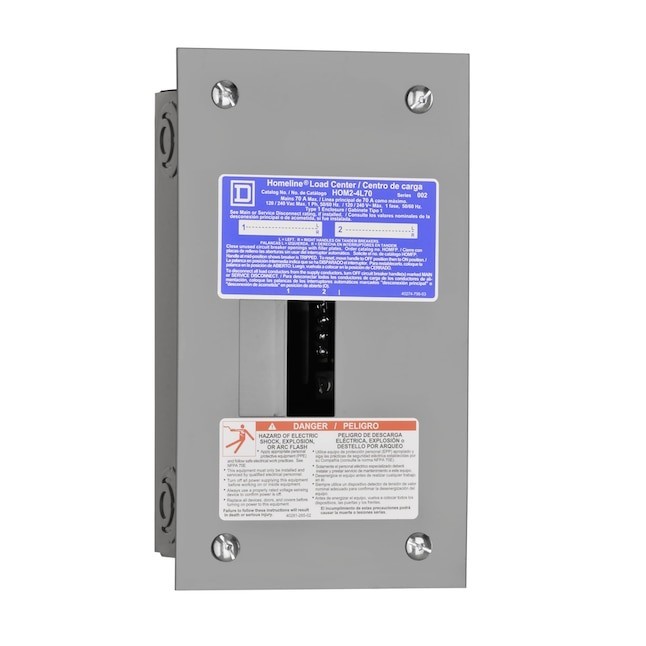

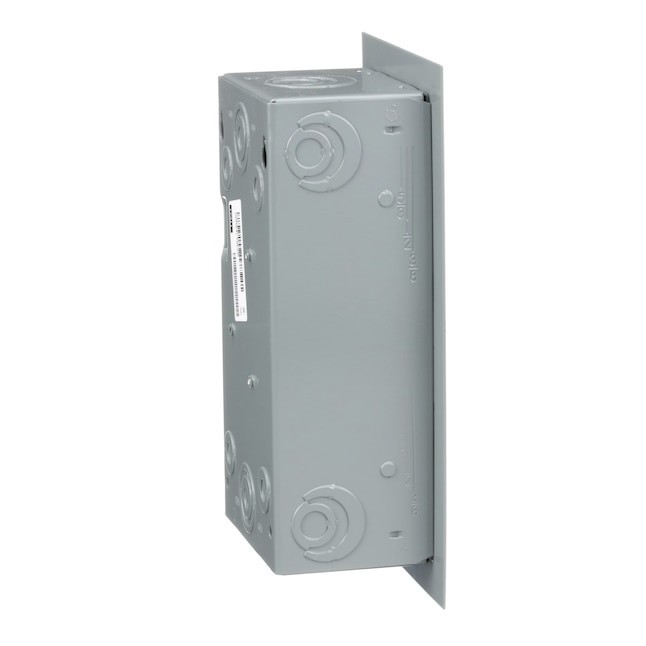

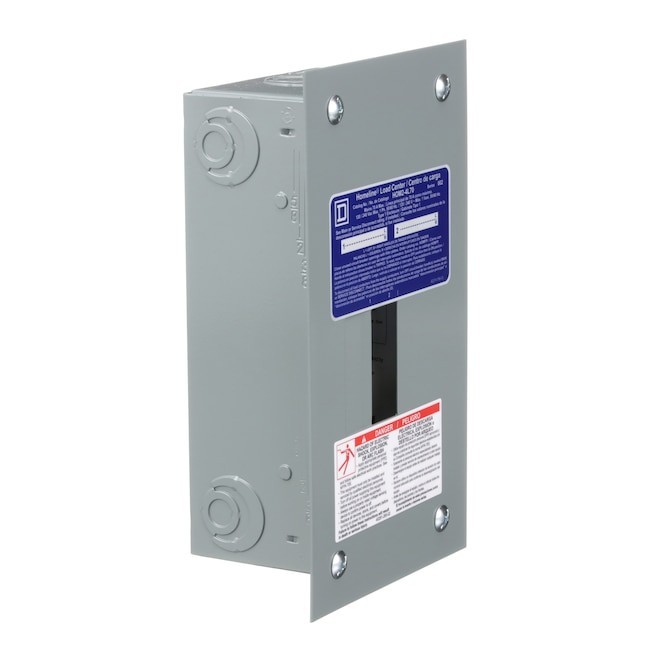

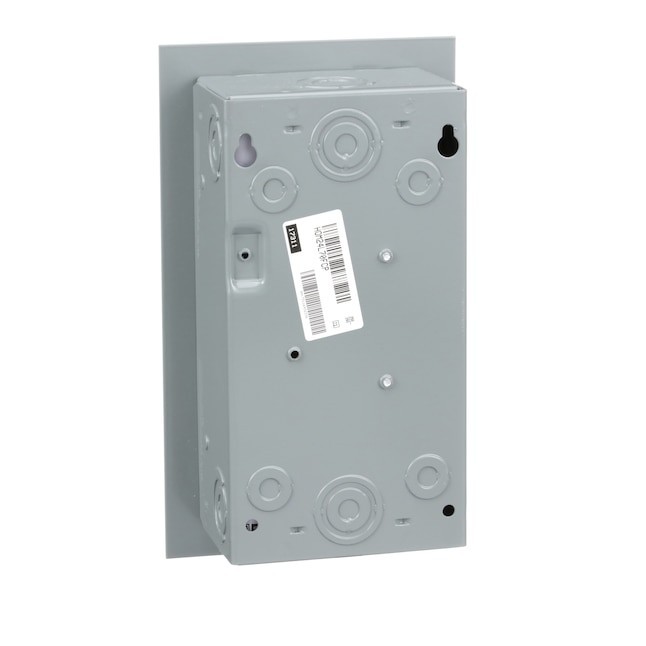

Overview The Square D Homeline 70 Amp 2-Space 4-Circuit Indoor Surface Mount Main Lugs Load Center is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings. For residential or commercial power distribution Compatible with Square D Homeline Standard circuit breakers Flush mount cover (without door) and aluminum bus bar included Includes a surface-mount cover and is for use as a main lug load center in fixed applications Accommodates plug-on secondary surge arrestor (sold separately) Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated Single phase Rated 120/240 VAC and 10,000 AIR short circuit current rating Surface mount device cover without a door Specifications General Manufacturer Color/Finish Gray Orientation Over/Under Series Name Homeline Value Pack Contents Includes load center and cover Type Main lug Number of Spaces 2 Use Location Indoor Phase Type Single phase (120/240) Mounting Type (description exceeds maximum possible length)
