Southworth Pallet Rotator - Inverter and similar items

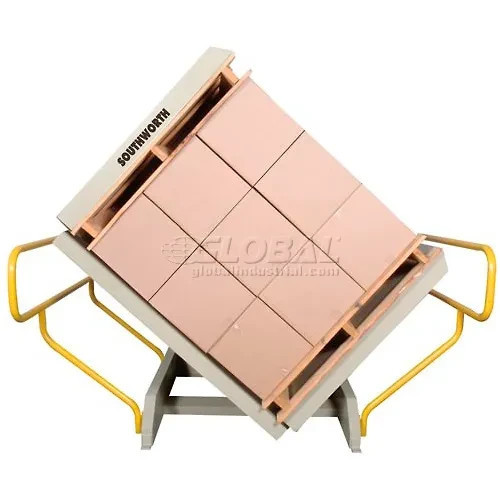

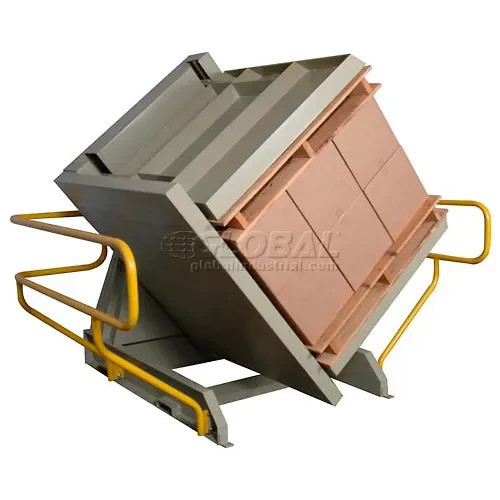

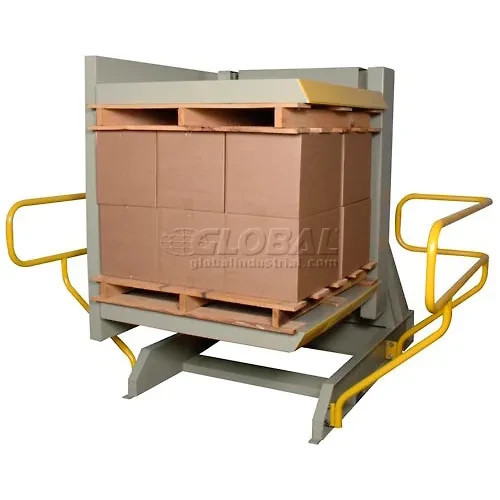

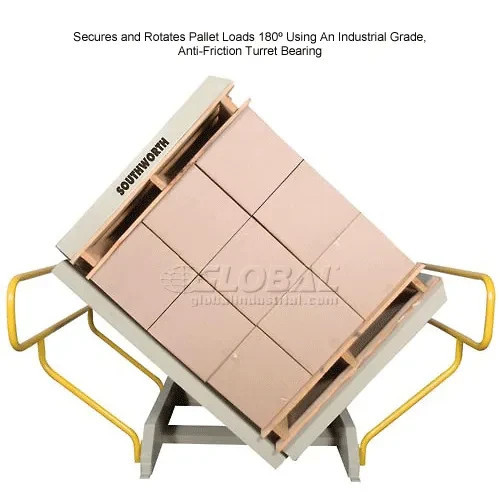

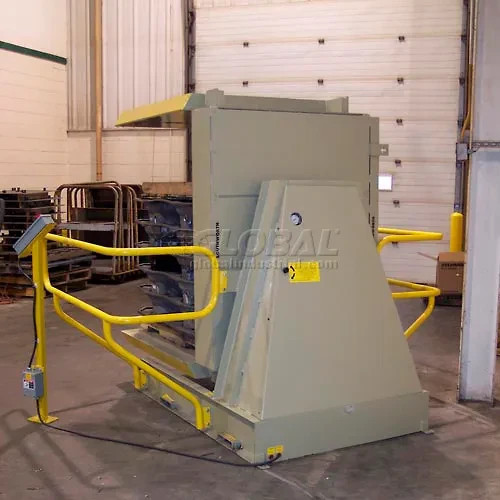

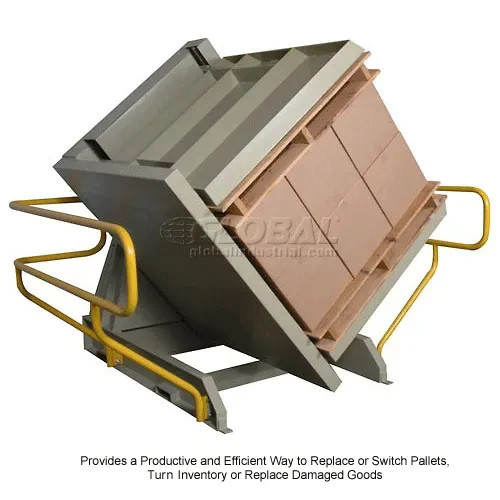

The Fast, Safe And Economical Way To Rotate Fully Loaded Pallets. A Pallet Rotator is the most productive and efficient way to replace broken pallets, switch from premium in-house pallets to shipping pallets, turn inventory for freshness, and replace damaged goods at the bottom of a pallet load without the need for manual restacking. The adjustable pressure clamping mechanism easily secures and rotates pallet loads a full 180, and can be stopped at any point during rotation. Designed To Handle Uniform Loads With A Maximum Palletized Dimension of 48" clamping length x 48" clamping width x 60" clamping height. Simply add a replacement pallet to the top of the load, place pallet into the inverter, use the remote control to clamp the load, and rotate the load in approximately 15 seconds; entire cycle takes about one minute! An industrial grade, anti-friction turret bearing offers smooth rotation with minimal maintenance. Remote control interface is simple to use, and clamping pressure can be adjusted by the operator to prevent crushing delicate loads. Safety guard rails protect the operator and integral fork pockets allow for easy relocation by a fork lift. Requires 460 volt 3 phase power source. 2 Year Limited Warranty. Clamp Speed is 2" per second. Min Opening is 30in. Weights Dimensions Length 85 in Width 96-5/16 in Height 81-3/4 in Weight 3715 lbs Max Weight Capacity 4400 lbs Product Details Assembly Required No Type Pallet Rotator Lift Type Electric-Hydraulic Voltage 460 V Control Hand Operated Material Steel Operation Powered Phase 3 Manufacturers Part Number SR-44-60 Brand Southworth
