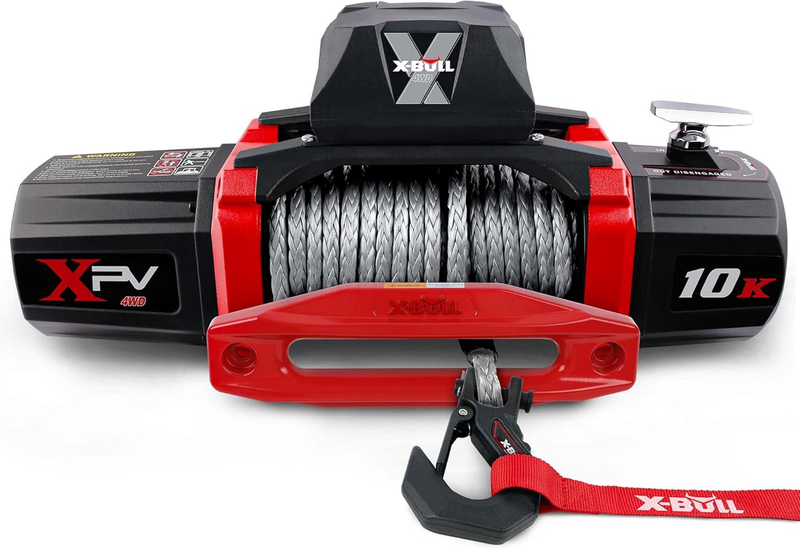

12V Synthetic Rope Winch,Waterproof IP67 and similar items

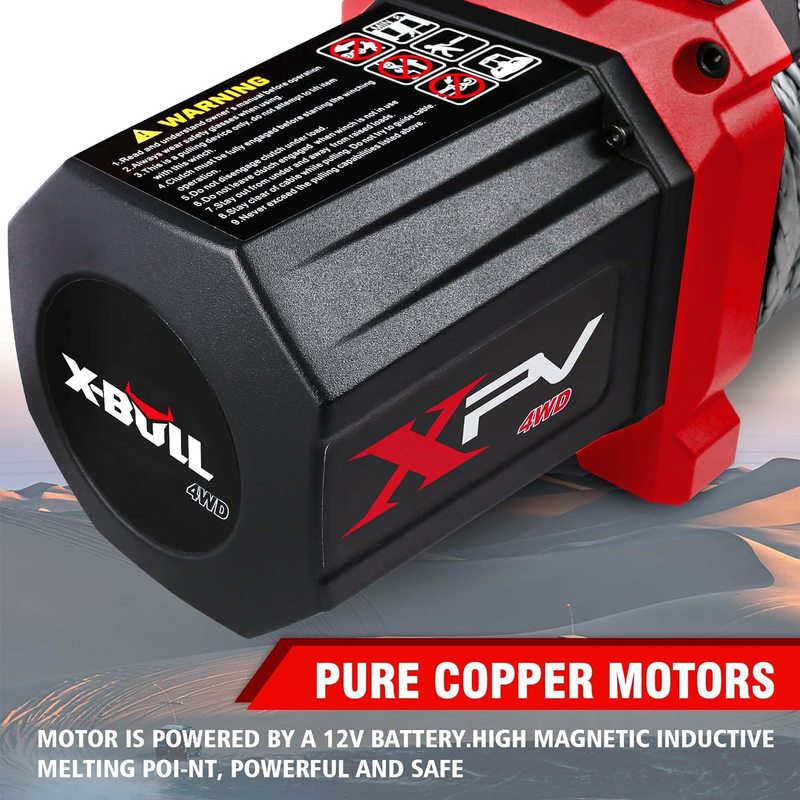

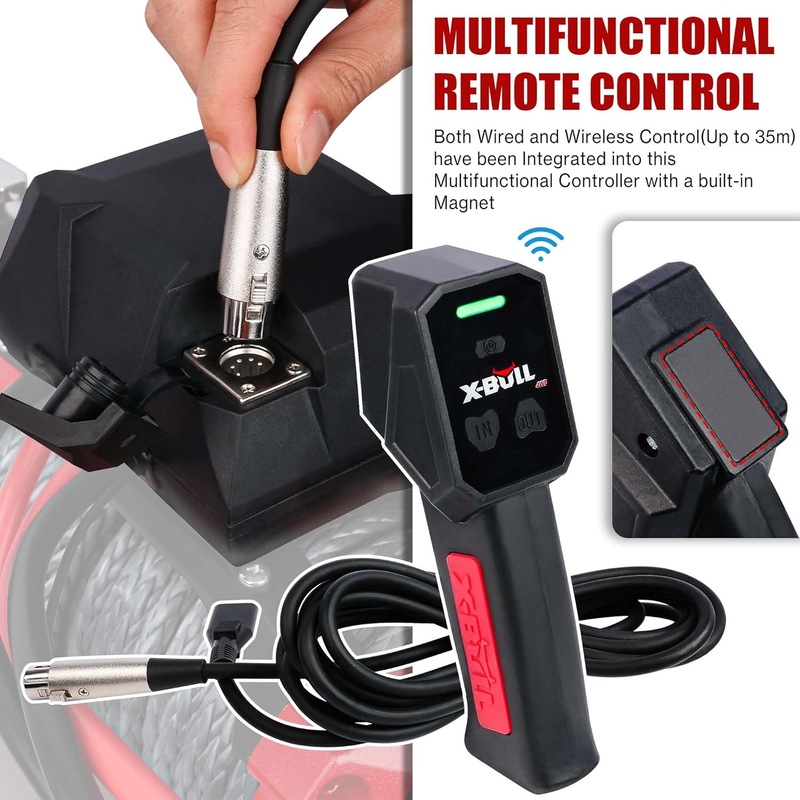

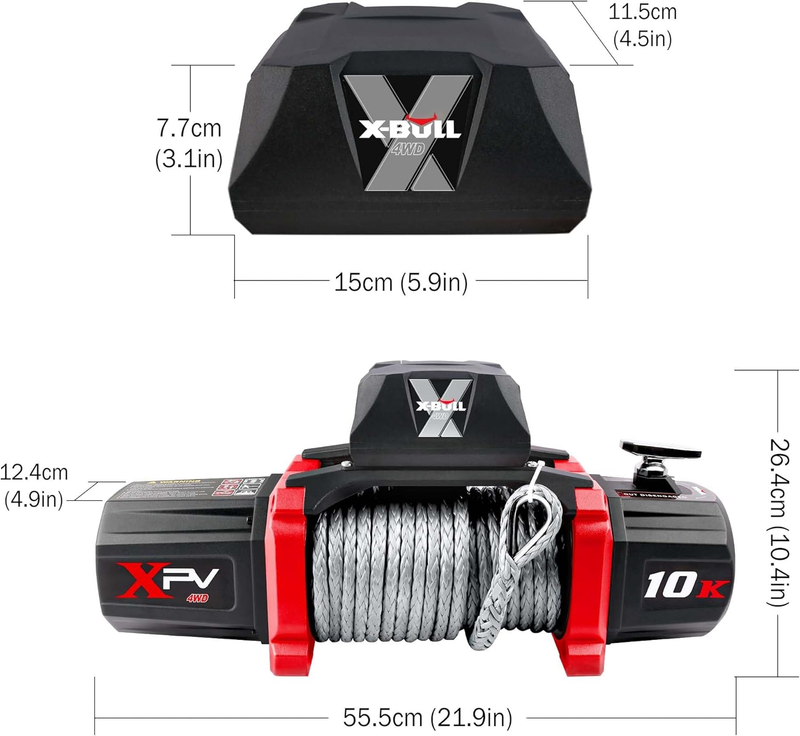

Fast Shipping On All Items 30 Days Money Guarantee Customer Support Excellent Service 100% Satisfaction Satisfaction Guaranteed We ship to US territories and worldwide. Please contact us if you have any special shipping instructions. 12V Synthetic Rope Winch,Waterproof IP67 Electric Winch with Hawse Fairlead-Grey Rope Specification Item model number USAM-XBEW012 Brand X-BULL Country of Origin China Manufacturer Part Number USAM-XBEW012 Item Weight 60.2 pounds Model USAM-XBEW012 Manufacturer X-BULL Product Dimensions 21.9 x 4.9 x 10.4 inches Size 10000 lbs- Grey Rope 4.9 inches x 21.9 inches x 10.4 inches. Weight: 60.2 lb Features: Our winch has a new generation of wireless remote control, with an IP67 waterproof grade, that can operate accurately from a distance regardless of terrain or weather. This versatile controller incorporates wired and wireless control (up to 35m) Electric Winch: The 10000 lb. winch powered by a 4.5kw/5.6hp output series wound motor 12V motor. The new solenoid successfully implements the principles of heat insulation, toughness, high stability, avoid the problem of capstan damage or motor burning caused by insufficient solenoid power. The connection between the clutch and the gear is strengthened by the new clutch system, making it more difficult to damage the clutch Safety: For positive load control, there is a Power in Power out motor. The powerful current can not only support the motor's operation smoothly and work within its rated current without any current impact, but also ensure the electric winch safety and your safety at all times. A 3 stage, 5.6 HP series wound motor comes with a 218:1 planetary gear ratio Gear System: With its modern and effective 3 planetary gear system, free spooling clutch and ability to deliver strong traction under load and higher linear speed, this electric winch will prove to be an invaluable travel companion Installation Dimensions: ( length X width X height ) 20.8"X 6.5" X 10.24", mounting bolt type: 10.00 0.015" 4.50 0.010". Synthetic rope: 3/8"x 80 feet Product Description INSTRUCTION: To pull out the rope, move the clutch handle to the released position. Re-engage the clutch by moving the clutch handle to the engaged position. To pull out the rope, move the clutch handle to the released position, slide the loop of the hook strap over the hook, then pull on the hook strap to pull out the rope. TIPS: Leave at least five full turns of wire rope on the drum.To pull out the rope, move the clutch handle to the released position, slide the loop of the hook strap over the hook,then pull on the hook to pull out the rope. If the winch is overloaded, the steel shell can protectthe winch body well. Black frosted paint will not rust. DUTY CYCLE Avoid damage to the Winch by not winching for more than the prescribed duty cycle time. The Duty Cycle defines the amount of time,within a 15minute period,during winch a Winch can operate at its maximum capacity without overheating. For example,this Winch with a 5% duty cycle at its maximum load must be allowed to resent for at least 14 minutes,15 seconds after every 45 seconds of continuous operation. Motor is powered by a 12 volt battery. When the winch is connected to the control box, make sure that the protective sleeves on the wires are in place. The wire must not touch any conductors to avoid short circuit Size:10,000 Lb.- Synthetic Rope Winch X-BULL 12V Synthetic Rope Electric Winch Three-stage Planetary Gear System/Super Big Power,High Tensile Synthetic Cable/Power In Power Out Motor for Positive Load Control/Braker for Maximum Safely Free Spooling Clutch for Fast Wire Rope Payout/Heavy Duty Sealed Contactor/Wire/Wireless Remote Control Model for Easy Operation Overall Dimensions(L X D X H):21.25? X 6.3125? X 10.125? (540x160x257mm). Mounting Pattern:10? x 4.5? (254mm) Pendant Controller:Wired, 12 ft (3.7m) long HOW TO ACTIVE REMOTE CONTROL When the green light is on, it is the wireless state When the red light is on, it is the wired state Match colors and secure Black Battery NEG ?-? wire and Black Solenoid Ground wire will share same Terminal Post SECURE Synthetic winch rope is made of 12 fine stranded rope Pure copper motors Have the characteristics of high magnetic inductive melting poi-nt, high temperature resistance 1 REMOTE CONTROL 2 SOLENOID TO WINCH 3 SYNTHETIC ROPE 4 MOTOR I only received the wired remote, the wired remote is missing. Wired and wireless remote control is integrated. Motor runs but Winch Drum does not turn Free Spooling Clutch not engaged. Motor does not turn on Rocker Switch not connected properly/Loose battery cable connections./Defective Rocker Switch./Defective Motor./Solenoid sticking. Motor overheating. Winch run time too long. SHIPPING . We ship to US territories and worldwide. Please contact us if you have any special shipping instructions. Return Policy ? We guarantee against any defective or misrepresented products. The original shipping label must be sent back to us to validate the return. A full refund can only be issued during the first 30 days upon receipt of the product. ? Returns will be voided if the product is mishandled or physical damaged by customer. ? Buyer will be responsible for all kind of return shipping/shipment to the seller for resolving the problem. ? Returns made for all non-defective, undamaged products are subject to a 15% restocking fee. Shipping and handling fees are absolutely non-refundable. If an item is returned to us due to an address issue, we do charge a reshipping fee to reship. If you would like a refund, there will be a 15% restocking fee applied. ? All returned products need to be assigned an RMA # (Return Merchandise Authorization #) prior to return. Please contact us through's messaging system to obtain an RMA# for the return. Any returned product without an RMA # on package will not be accepted or processed. ? Please contact us before returning. Feedback ? We appreciate your feedback and our system will automatically leave feedback for you after bid ends. ? Please contact us through message center if you have any problems, we will always try our best for 100% customer satisfaction. Payment Options Shop With Confidence
