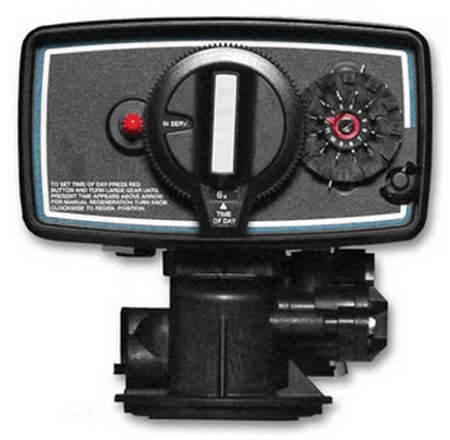

Fleck (F5600C-CSA) 5600 5 Cycle, Standard and 50 similar items

Features Simple mechanical design is easy to understand Two valve body designs: one for down flow regeneration and one for up flow (covers every valve in the 5600 family - quick access to all internal components) Injector/drain modules containing the brine valve, flow controls and injector are removable from the valve's exterior Ruggedly built timer is designed with heavy-duty 3/8" wide plastic gears 5600 controls are user friendly and easy to program Non-corrosive, UV-resistant fiber-reinforced polymer valve body Choice of 7 or 12 day clock or demand regeneration with either mechanical or electronic meter Economical - small annual power consumption; keeps the time and activates the piston/valve mechanics with a single motor Designed with double backwash Valve Specifications Valve material Fiber-reinforced polymer Inlet/Outlet 3/4 , 1 , 1-1/4 Cycles 7 Flow Rates (50 psi Inlet) - Valve Alone Continuous (15 psi drop) 20 GPM Peak (25 psi drop) 26 GPM CV (flow at 1 psi drop) 5.0 Max. backwash (25 psi drop) 7 GPM Regeneration Down flow/Up flow Both Adjustable cycles Brine fill only Time available 180 minutes/regen Meter Information Meter accuracy range .25 - 15 GPM +/- 5% Meter capacity range (gal.) Standard: 125 - 2,125 Extended: 625 - 10,625 Dimensions Distributor pilot 0.8125 or 1.050 pipe O.D. Drain line 1/2 NPTF Brine line 1600 - 3/8 Mounting base 2-1/2 - 8 NPSM Height from top of tank 7 Typical Applications Water softener 6 -12 diameter Iron filter 6 -10 diameter Sediment filter 6 -10 diameter Carbon filter 6 -10 diameter Neutralizing filter 6 -10 diameter Additional Information Injector brine system 1600 Electrical rating 24 v, 110 v, 220 v - 50 Hz, 60 Hz Max. VA 3 Estimated shipping weight Time clock: 5 lbs. Metered valve: 6 lbs. Pressure Hydrostatic: 300 psi Working: 20 - 125 psi Temperature 34 - 110 F
