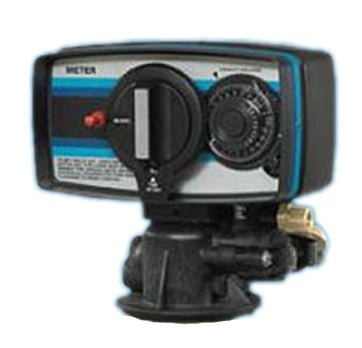

Fleck (F5600M-CSA) 5600 5 Cycle, Standard and 50 similar items

Features Simple mechanical design is easy to understand Two valve body designs: one for down flow regeneration and one for up flow (covers every valve in the 5600 family - quick access to all internal components) Injector/drain modules containing the brine valve, flow controls and injector are removable from the valve's exterior Ruggedly built timer is designed with heavy-duty 3/8" wide plastic gears 5600 controls are user friendly and easy to program Non-corrosive, UV-resistant fiber-reinforced polymer valve body On Demand regeneration with a mechanical meter Economical - small annual power consumption; keeps the time and activates the piston/valve mechanics with a single motor Designed with double backwash Valve Specifications Valve material Fiber-reinforced polymer Inlet/Outlet 3/4", 1", 1-1/4" Cycles 7 Flow Rates (50 psi Inlet) - Valve Alone Continuous (15 psi drop) 20 GPM Peak (25 psi drop) 26 GPM CV (flow at 1 psi drop) 5.0 Max. backwash (25 psi drop) 7 GPM Regeneration Down flow/Up flow Both Adjustable cycles Brine fill only Time available 180 minutes/regen Meter Information Meter accuracy range .25 - 15 GPM +/- 5% Meter capacity range (gal.) Standard: 125 - 2,125 Extended: 625 - 10,625 Dimensions Distributor pilot 0.8125" or 1.050" pipe O.D. Drain line 1/2" NPTF Brine line 1600 - 3/8" Mounting base 2-1/2" - 8 NPSM Height from top of tank 7" Typical Applications Water softener 6"-12" diameter Iron filter 6"-10"diameter Sediment filter 6"-10" diameter Carbon filter 6"-10" diameter Neutralizing filter 6"-10" diameter Additional Information Injector brine system 1600 Electrical rating 110 v 60 Hz Max. VA 3 Estimated shipping weight Metered valve: 6 lbs. Pressure Hydrostatic: 300 psi Working: 20 - 125 psi Temperature 34 - 110 F * DLFC (Drain Line Flow Control) is not included. Below are suggestions for the DLFC to be used in each size. Although it may vary, please keep in mind it is a suggestion. DLFC Button Tank Size 1.2 GPM 8" x 44" 1.5 GPM 9" x 48" 2.0 GPM 9" x 48" 2.4 GPM 10" x 54" 3.0 GPM 12" x 52" 3.5 GPM 13" x 54" 4.0 GPM 13" x 54" 5.0 GPM 14" x 65"
