SMC AR20K-01BG Size 20 Pneumatic Regulator and 49 similar items
SMC AR20K-01BG Size 20 Pneumatic Regulator W/Gauge and Fittings
$23.60
(It may be possible to pay only $20.60 instead of $23.60 when you
use your bCredits at checkout)
Sign up and get $5.00 bCredits free to use at checkout and another $5.00 bCredits when you make your first purchase. More info
Share & earn! Sign in, share this or any listing, and you’ll get commission when it sells.
Learn more
View full item details »
Shipping options
Offer policy
OBO - Seller accepts offers on this item.
Details
Return policy
Buyer must return the item within 30 days.
Buyer is responsible for any shipping costs associated with the return. Details
Purchase protection
Payment options
PayPal accepted
PayPal Credit accepted
Venmo accepted
PayPal, MasterCard, Visa, Discover, and American Express accepted
Maestro accepted
Amazon Pay accepted
Nuvei accepted
View full item details »
Shipping options
Offer policy
OBO - Seller accepts offers on this item.
Details
Return policy
Buyer must return the item within 30 days.
Buyer is responsible for any shipping costs associated with the return. Details
Purchase protection
Payment options
PayPal accepted
PayPal Credit accepted
Venmo accepted
PayPal, MasterCard, Visa, Discover, and American Express accepted
Maestro accepted
Amazon Pay accepted
Nuvei accepted
Item traits
| Category: | |
|---|---|
| Quantity Available: |
4 in stock |
| Condition: |
Used |
| MPN: |
AR20K-01BG |
| Brand: |
SMC |
| Country of Origin: |
China |
| Type: |
Pneumatic Air Regulator |
| Port Size: |
1/8 inch |
| Body Size: |
20 |
| Pressure Gauge: |
Included |
| Fittings: |
Two elbow push-in fittings |
| Regulation Method: |
Knob adjustment with lock mechanism |
| Set Pressure Range: |
0.05 to 0.85 MPa |
| Maximum Operating Pressure: |
1.0 MPa |
| Proof Pressure: |
1.5 MPa |
| Operating Temperature: |
-5 to 60 °C |
| Construction: |
Relieving type |
| Flow Capacity: |
Approx. 600 L/min |
| Mounting: |
Bracket included |
| Dimensions: |
40 mm (W) × 120 mm (H) × 50 mm (D) |
| Weight: |
0.25 kg |
| Gauge Diameter: |
30 mm |
| Material: |
Aluminum body, resin knob |
| Certifications: |
RoHS compliant |
Listing details
| Seller policies: | |
|---|---|
| Shipping discount: |
Shipping weights of all items added together for savings. |
| Posted for sale: |
More than a week ago |
| Item number: |
1602824908 |
Item description

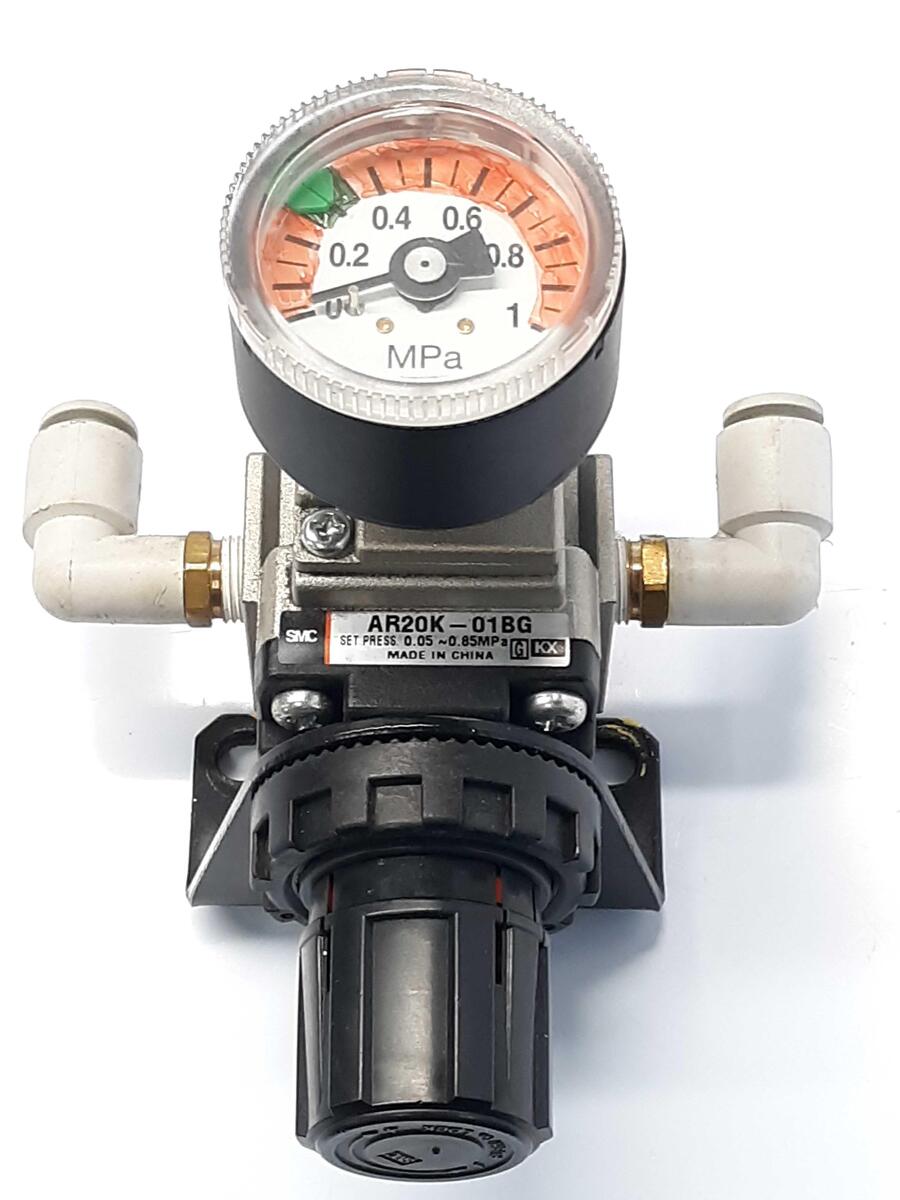

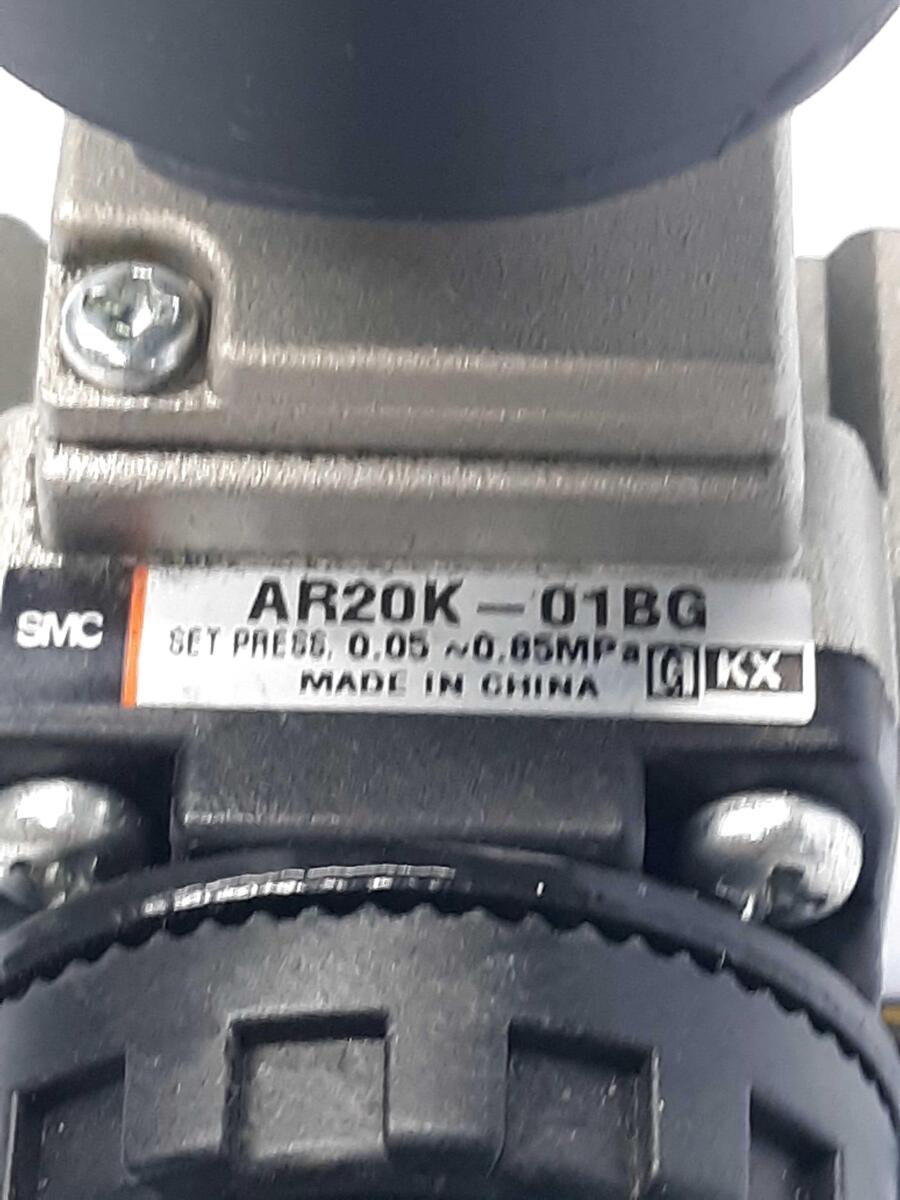

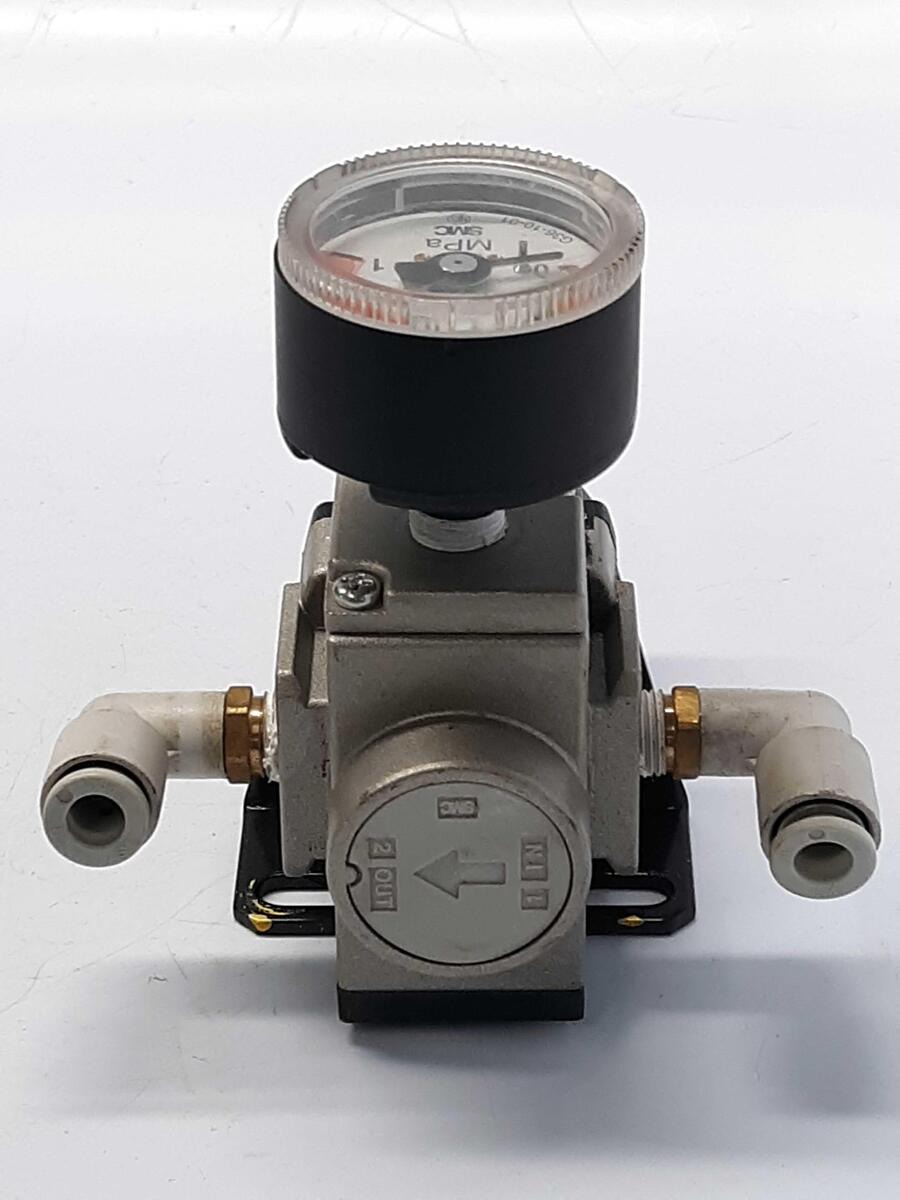

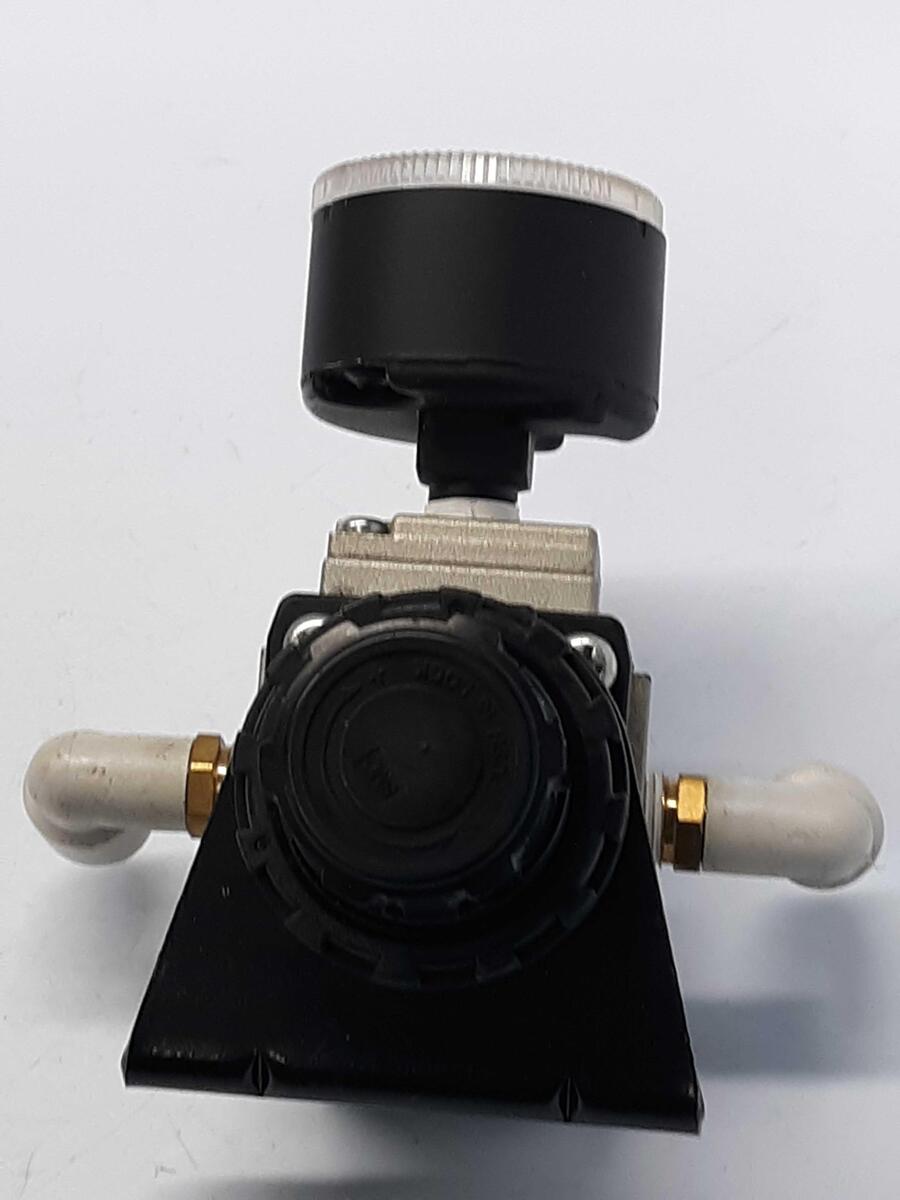

SMC AR20K-01BG Size 20 Pneumatic Regulator W/Gauge and Fittings
Condition: Used
Dimensions: 7.00 x 7.00 x 4.00 inches (L x W x H)
Weight: 0.90 Lbs.
Compact air regulator for precise pressure control in pneumatic systems. Includes integrated pressure gauge and elbow fittings for easy installation.
Technical Specifications
Manufacturer: SMC Corporation
Country of Manufacture: China
Model: AR20K-01BG
Series: AR20
Product Type: Pneumatic Air Regulator
Port Size: 1/8 inch (Rc, NPT, or G depending on variant)
Body Size: 20 (compact type)
Pressure Gauge: Included (MPa scale)
Fittings: Two elbow push-in fittings included
Regulation Method: Knob adjustment with lock mechanism
Set Pressure Range: 0.05 to 0.85 MPa
Maximum Operating Pressure: 1.0 MPa
Proof Pressure: 1.5 MPa
Operating Temperature: -5 to 60 C (no freezing)
Construction: Relieving type
Flow Capacity: Approx. 600 L/min (at 0.5 MPa inlet, 0.35 MPa outlet)
Mounting: Bracket included
Dimensions (approx.): 40 mm (W) 120 mm (H) 50 mm (D)
Weight: 0.25 kg (250 g)
Gauge Diameter: 30 mm
Material: Aluminum body, resin knob
Certifications: RoHS compliant Please review pictures carefully and let us know if you have any questions!
