Agilent 8495G Programmable Step Attenuator, and 48 similar items

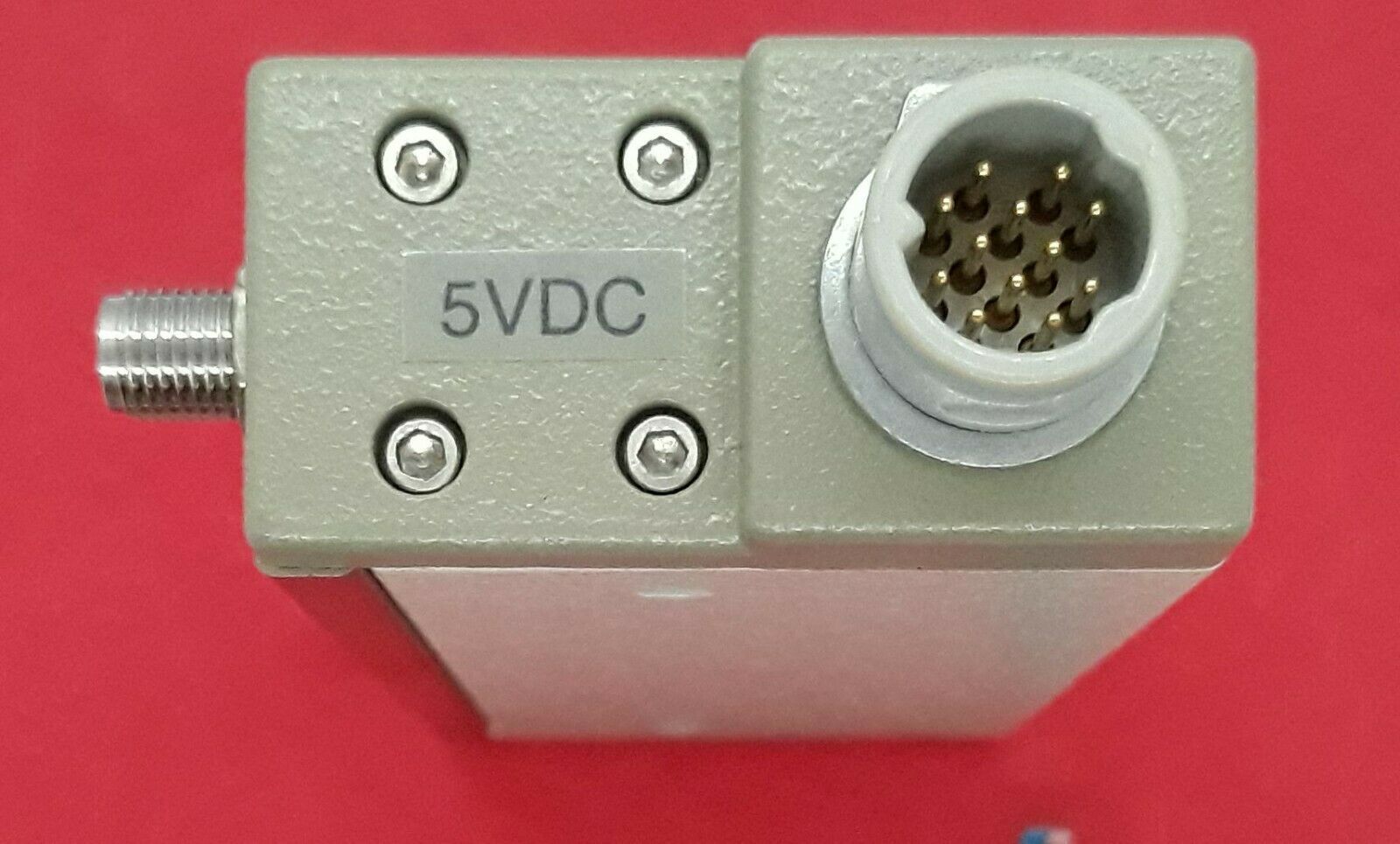

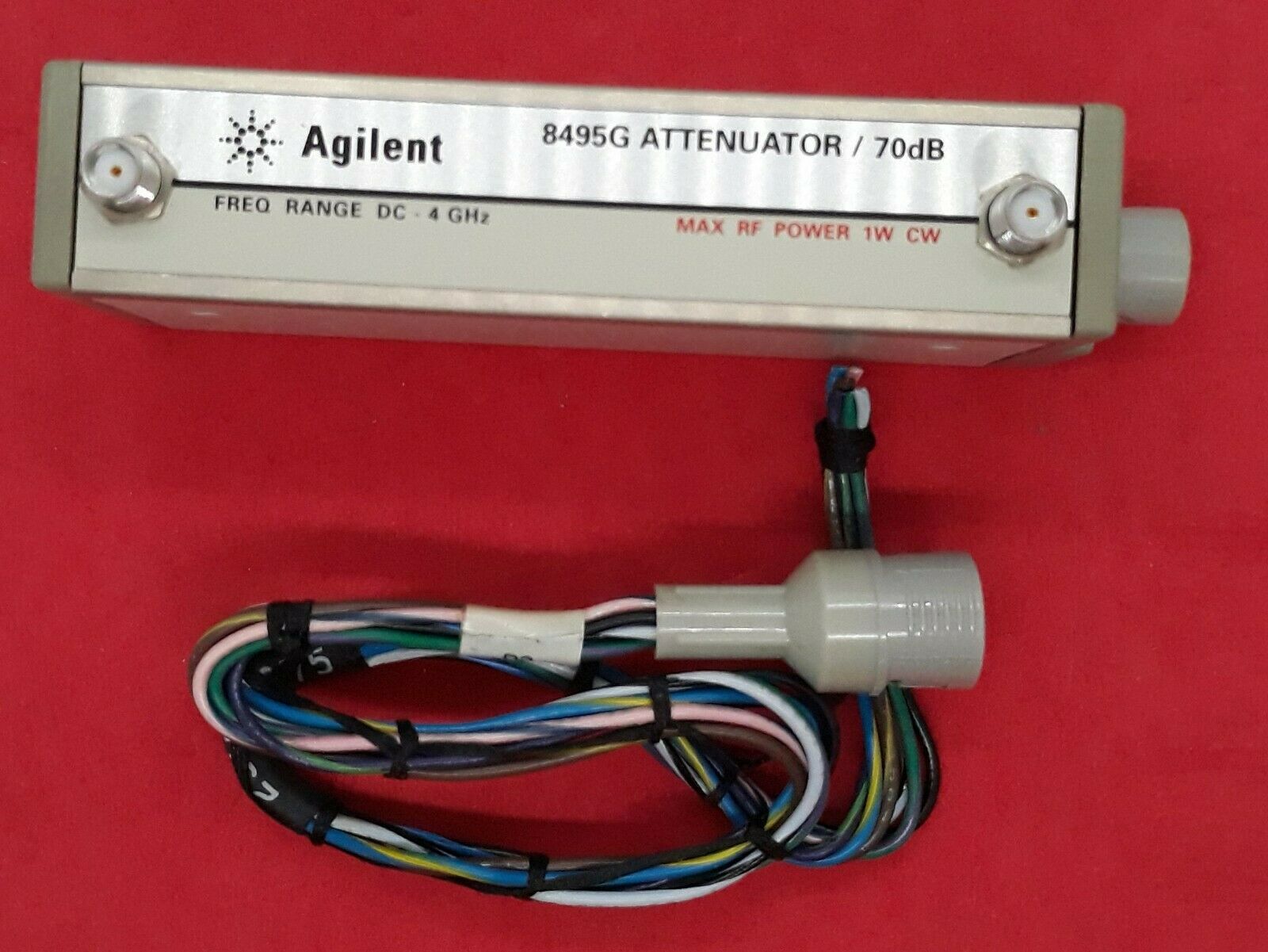

Agilent 8495G Programmable Step Attenuator, DC to 4 GHz, 0 to 70 dB, 10 dB steps In good working condition.Came from a working environment. Key Features Specifications Superior RF Performance Frequency range: dc to 4 GHz Insertion loss at 0 dB: 0.4 dB + 0.07 dB/GHz Maximum SWR: 1.35 Repeatability and Life Span Repeatability life: 0.03 dB max 5 million cycles per section, typical 5 million cycles per section Power Handling Maximum RF input power: 1 W (average), 100 W (peak) Features Connector type: choice of type-N female, SMA female, APC-7 Programming connector: 12-pin Viking, optional 14-pin DIP Description The Keysight 8495G dc to 4 GHz programmable step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 70 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option UK6. A maximum switching time of 20 ms (including contact settling) speeds automatic testing. Custom step attenuator/switch combinations are possible. The Keysight 11716A/B/C interconnect kits provide quick connection of Keysight 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.
