51512-5 Tech Products Shock / Vibration and similar items

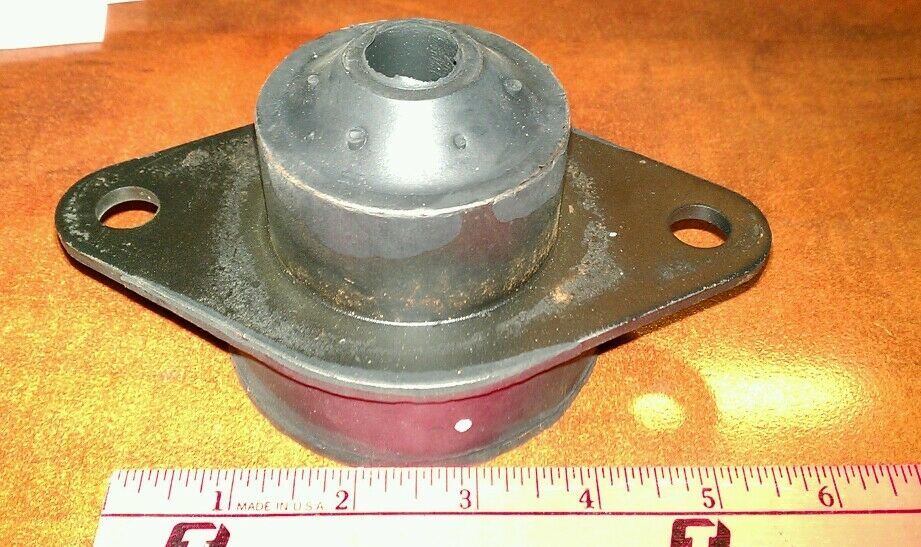

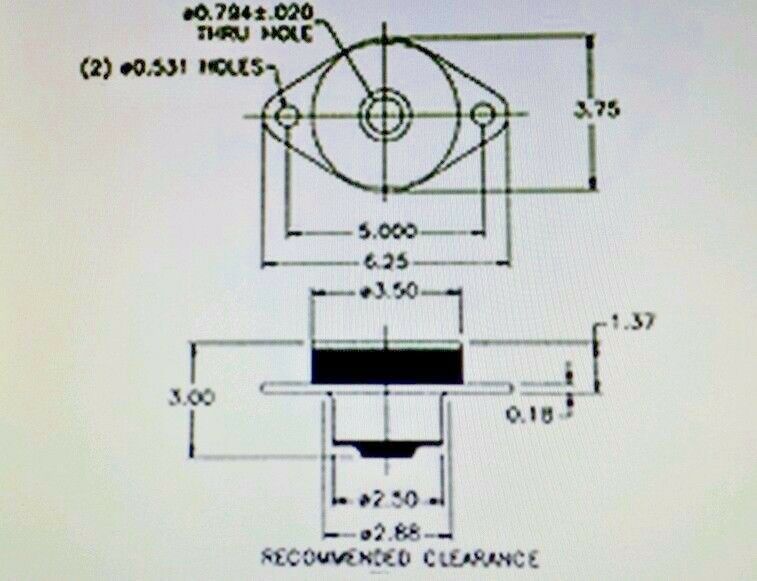

PLEASE GO TO MY STORE AND CLICK ON vibration engine mounts store category to see other TECH MOUNTS 515 SHOCK/VIBRATION MOUNT Click to open expanded view Max Axial Load 1500 Max Radial Load 1000 Snubbing Washer 00308-3 Color Code White 5 1512-5 TECH PRODUCTS ARMOUR PLATED UNIVERSAL MOUNT VIBRATION ISOLATOR MOTOR MOUNT large end is 3.5" diameter small end is 2.5" 3" overall length center hole is about 13/16" ID mounting holes are 5" on centers 1500 # MAX AXIAL LOAD 1000 # MAX RADIAL LOAD CODED WHITE Compact 515 Series all-attitude mounts are a money-saving way to protect equipment from vibration and shock. High load capacity, stability, and the ability to be installed at any mounting angle make them ideal for a wide variety of applications, including vehicle cabs; truck, bus and marine engines; generators; air conditioning units; motors and electronic equipment.. You can install them at any convenient mounting angle thanks to their "shouldered" core design that makes optimum use of the neoprene elastomer shear and compressive properties. They offer a fail-safe installation when the proper snubbing washers are used. Oil, fuel and solvent-resistant neoprene-with a temperature range of -20 to +180F- provides isolation in all planes, regardless of the direction of the exciting forces. At maximum load, the natural frequency of these mounts is about 8.5 Hz. providing effective isolation from disturbing frequencies of 12 Hz. and above. Please look at my other items in my STORE and add me to your favorites list. Click on See all Categories for additional products. PLEASE GO TO MY STORE AND CLICK ON vibration engine mounts store category to see other TECH MOUNTS
