TBS2605 2 channels 4K or 5 Channels 1080P and similar items

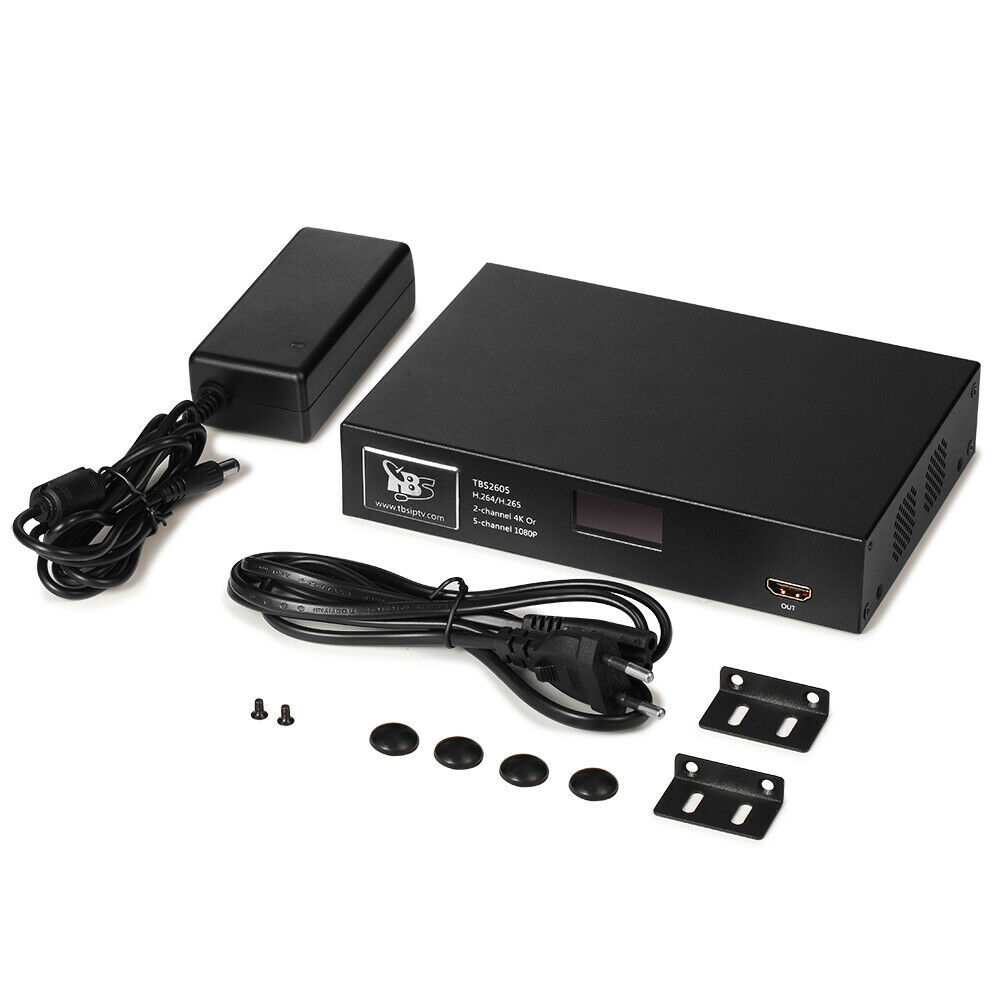

TBS2605 is a professional 4K/H.265 HDMI encoder, which is also our newest HD audio video encoding device with powerful functionality. It supports real 4K, up to max 3840 x 2160P@30fps. TBS2605 HDMI Video encoder not only supports 2 channels 4K or 5 channels H.265 encoding, but also supports multiprotocol output. Each channel supports HTTP/HLS/RTMP/RTSP/UDP protocols outputting simultaneously, which is ideal for the customers who need to output with different protocols. TBS2605 is coupled with Web UI managing system and telnet remote access, and equipped with video mix and split screen display function, which provide users flexible choices to control the encoder at anytime and anywhere. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries. 5 x HDMI 1.4 inputs Support Network streams in for video mix or protocol converting H.265/H.264 Encode Multiple protocol outputs: HTTP/HLS/RTMP/RTSP/UDP (Multicast, Unicast) Support video mix and split screen function ( 1, 3, 4, 9 screens for your choices ) Support OSD logo, text, mosaic Single LAN port output and management WebUI control LCD display for IP, encode status and bitrate info Why you choose TBS2605 ? Supports 5 channels 1080P 60hz encode or 2 channels 4K encode 3840 x 2160P@30fps. Max Resolution (4K/UHD) Real-time encoder supporting resolutions up to 4K with HEVC and H.264 encoding. Efficient encoding leads to bandwidth savings, even at high resolutions. Ideal for future-proofing workflows that need to move to 4K UHD and for those that require the highest video quality. Multiprotocol output Compliant with HTTP/HLS/RTMP/RTSP/ UDP protocols Each channels have multiple protocols for outputting Video mix function, multiplex and split screen display Video mix function allow you to choose the channels from HDMI and IP , merges them together and provide one new TS, then decode them , with the screen display function , offer users flexible choices to control and monitor the channels at anytime and anywhere. Single LAN port output and management TBS2605 supports multiple HDMI inputs with only one LAN port for output and management, which greatly save source and space for you. And reliable Web UI let you easy to setup and manage. Application IPTV - Topology Video Mix and monitoring - Topology Specification: Model Number TBS2605 Video Input 5x HDMI 1.4 Audio Input HDMI embedded audio Video Resolution Input: 3840x2160, 3392x2208, 2592x1520, 2560x1440, 2304x1296, 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 640x480, 360x240, and etc. Output: 3840x2160@30fps, 1920x1080@60fps, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 640x480, 360x240, and etc. Encode H264 base line, H264 Main, H264 High, H265 Main Data Rate 0.5Mbps~20Mbps Rate Control CBR/VBR Protocol HTTP/HLS/RTMP/RTSP/ UDP Audio Encoding AAC, MP3 Sampling rate: 16K, 32K, 44.1K, 48K Sampling precision 16 bit Data Rate 64Kb/s ~ 256Kb/s Network Stream Input Video H.264 / H.265 Audio MPEG 1/2, MP3, AAC Protocol HTTP / RTSP / RTP / UDP (multicast, unicast) System Ethernet / RJ45 1000 Base-T Ethernet interface System WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64; LINUX Control WEBUI General Spec. Dimension 185 * 119 * 36mm(length, width, height) Power less than 15W
