Freightliner Fan Clutch Dm HOR-99A9561 and 15 similar items

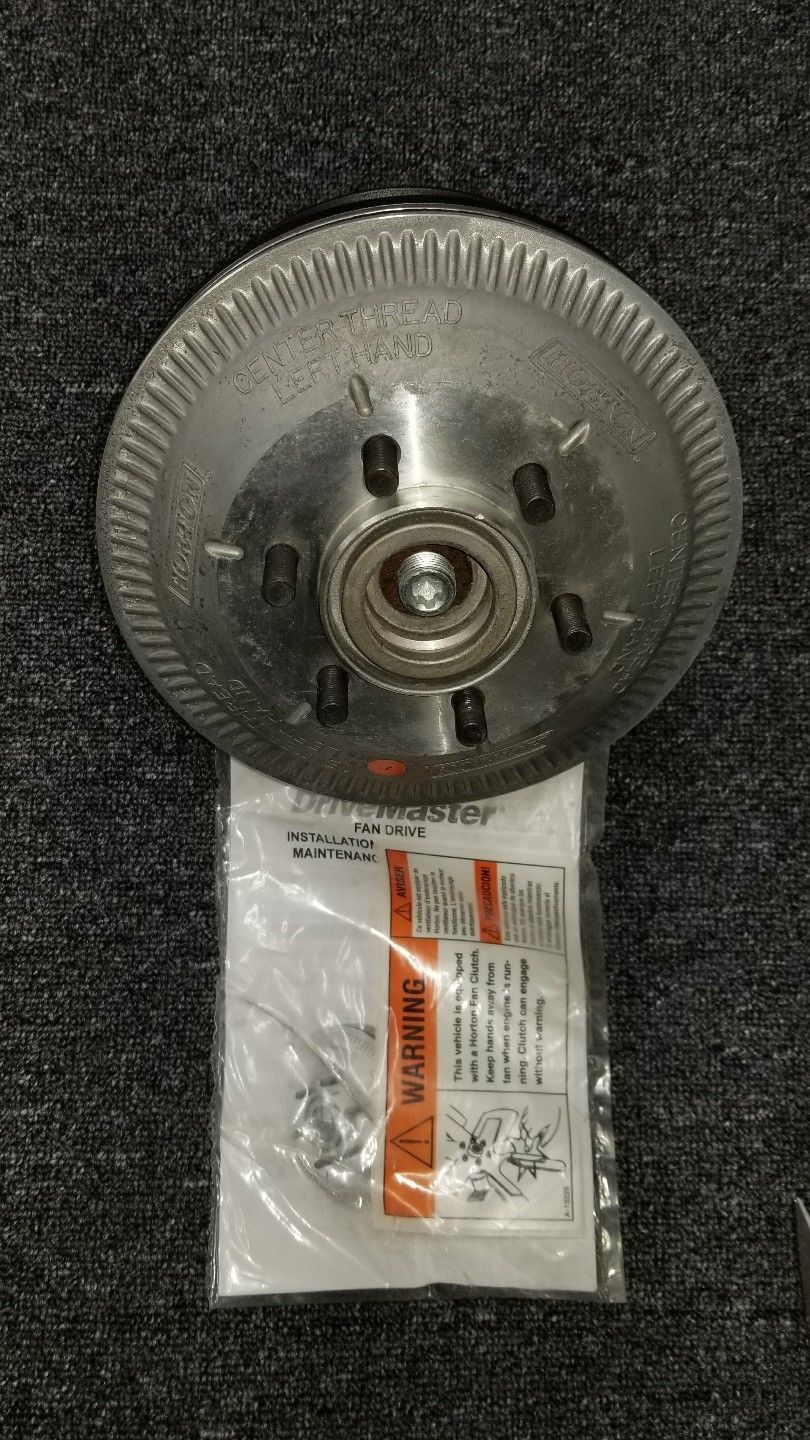

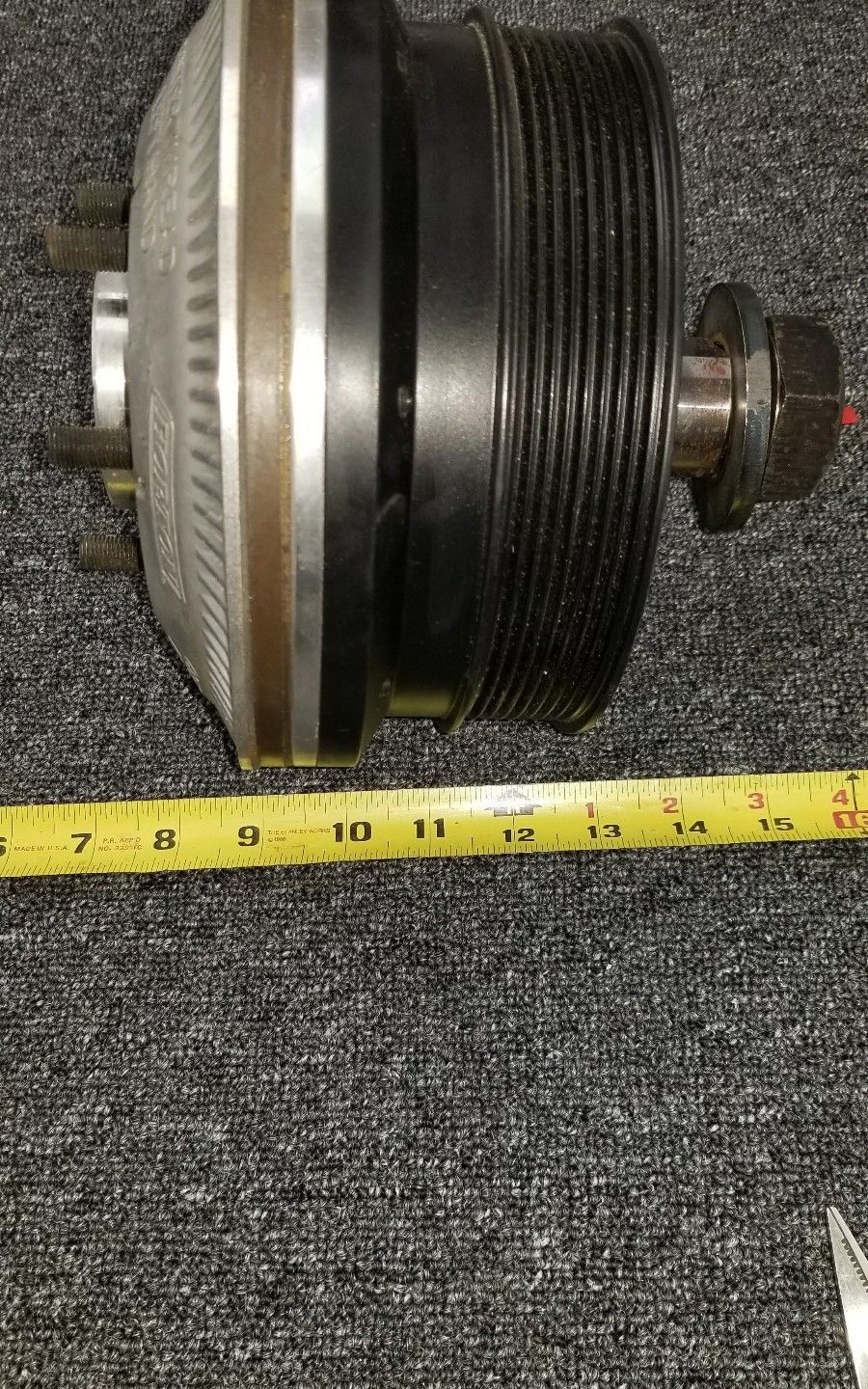

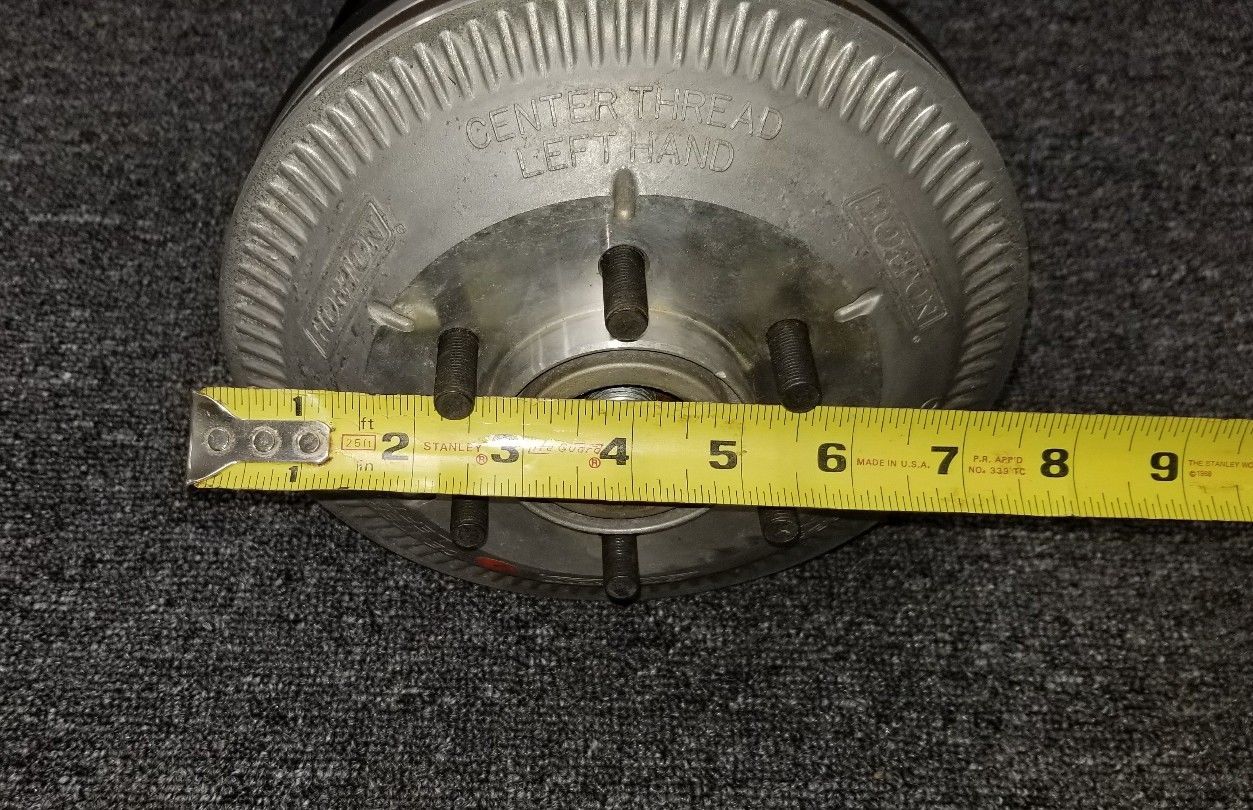

New Horton Clutch Fan DM Drive Master Part Number: Horton 99A9561 Horton 4091500S Oshkosh 3834765 DM Advantage On/Off Fan Drives are spring-engaged and air-disengaged for maximum efficiency. They are lighter, have high torque for turning larger fans, a fail-safe design and a low parts count for simplicity. The advantage is yours with the best, proven solution for the highest-heat under-hood applications. Horton’s latest innovations assure you of maximum reliability and long-life performance. APPLICATIONS SPECIFICATIONS Actuation Spring-engaged, air disengaged Minimum air pressure to disengage 90 psi [620.5 KPA] Out of box torque 2400 in.-lbs. [271 N-m] Friction disc diameter 7.9 in. [200.6 mm] Fan blade capacity (diameter) 32 in. [813 mm] Engine horsepower range 250-600 HP [186-447 KW] Friction liner wear limit, minimum thickness 0.23 in. [5.76 mm] FEATURES BENEFITS Premium sheave bearing and long-wearing friction liner for maximum reliability and long life On- and off- operation reduces noise and conserves fuel Low parts count for ease of installation and maintenance High torque capable of turning larger fans for a range of application Engine coolant temperatures kept at optimum operating efficiency to increase durability Superior solution for some of the highest heat-under-hood applications
