FX2200 Flaig FX Universal Lift Magnet and 49 similar items

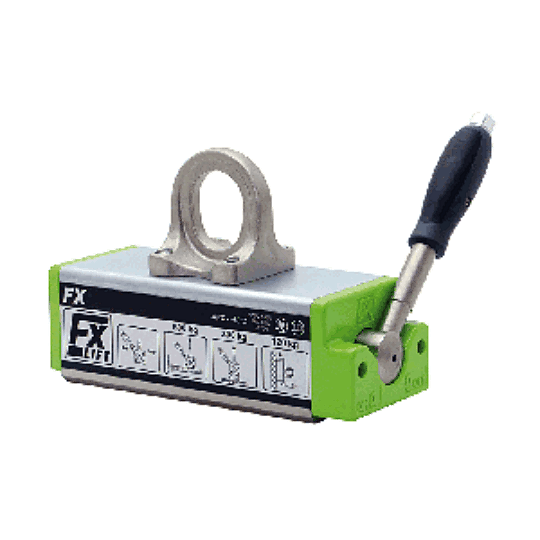

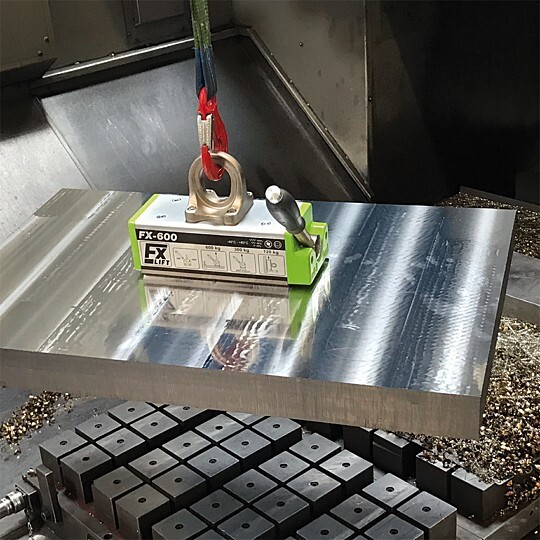

FX2200Flaig FX Universal Lift Magnet The FX Universal, on/off permanent lift magnets are ideal for various manufacturing applications where you?re mostly lifting flat material, but occasionally need to lift rounds. Benefits On/off rare earth permanent magnet On/off handle only requires 90 rotation and locks at both on/off positions Durable, recessed metal nameplates, not stickers Corrosion-resistant, plated-magnet surface Heat resistant up to 180F (82C) 3:1 design factor 2018 ASME B30.20 BTH-1 Design Category B, Service Class 3 Specifications: FX2200 Compare with other models Measurements in inches and lbs Height 9.4 Length 14.2 Weight 93 Bail Height 3 Bail Thickness 0.8 Bail Width 1 WLL- Working Load Limit 2200 Handle Length 10.2 Magnet Height 4.7 Magnet Length 12 Magnet Width 6 Magnetic Pole Quantity 2 FX2200 Flat Plate Working Load Limit (WLL) in lbs (kg) *Max Sheet Length Due To Sag For Material Thickness For Single Magnet Use FX2200 Flat Plate Working Load Limit (WLL) in lbs (kg) *Max Sheet Length Due To Sag For Material Thickness For Single Magnet Use SKU 1/4" PLATE (6' Ln) 3/8" PLATE (8' Ln) 1/2" PLATE (8' Ln) 3/4" PLATE (8' Ln) 1" PLATE (10' Ln) 2" PLATE (10' Ln) 3" PLATE (10' Ln) FX2200 NA 772 (350) 1984 (900) 2200 (998) 2200 (998) 2200 (998) 2200 (998) NOTE: Lifting Values for the Flaig FX Universal Magnets are stated at 33% of the actual value. We recommend when lifting sheets over 8?, use 2 or more lifts on a spreader bar to prevent sheet flexing, sagging or peel-off. Thin material is susceptible to magnetic bleed through, resulting in two sheets being lifted at once. Maximum sheet lengths are selected due to the sag characteristics of the specified sheet. The item to be lifted must cover the entire length and width of the magnetic poles to properly engage and release. CF = Consult Factory NA = Not Applicable (Magnets listed will not turn ?ON? on specified material thicknesses.) FX Round Lifting Working Load Limit (WLL) in lbs (kg) FX Round Lifting Working Load Limit (WLL) in lbs (kg) SKU Working Load Limit lbs(kg) Diameter Range (in) Minimum Thickness (in) FX2200 1100 (500) 4 - 18 3/4 NOTE: Lifting Values for the Flaig FX Universal Magnets are stated at 33% of the actual value. Consult the factory before specifying these magnets for use on round materials. Round Item Lifting Values are based on ideal conditions. Length, wall thickness, diameter and surface can all affect the magnet?s performance.
