110/220V Dual Voltage IGBT Inverter Plasma and 50 similar items

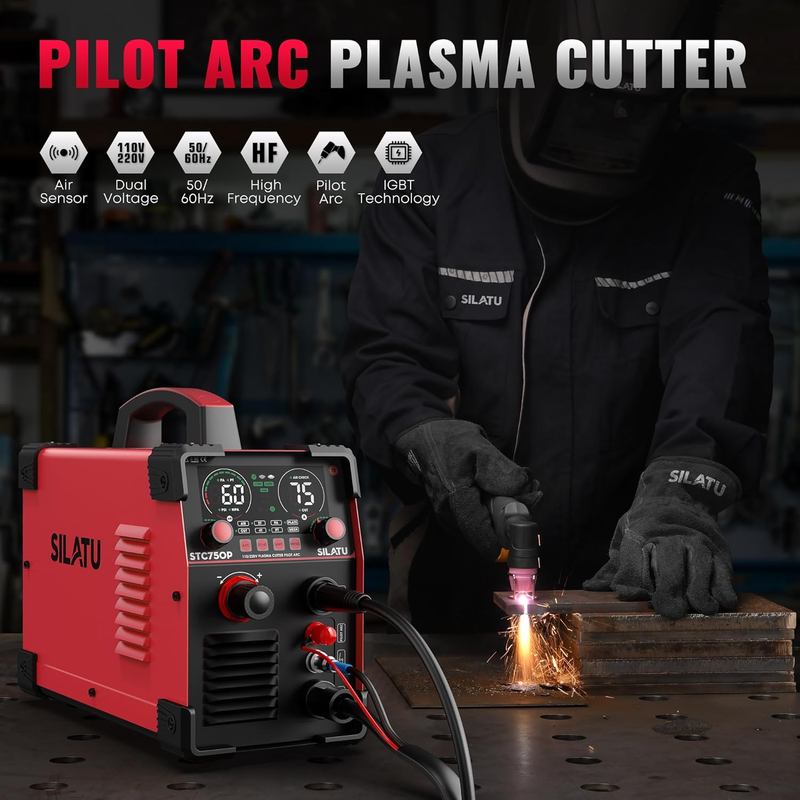

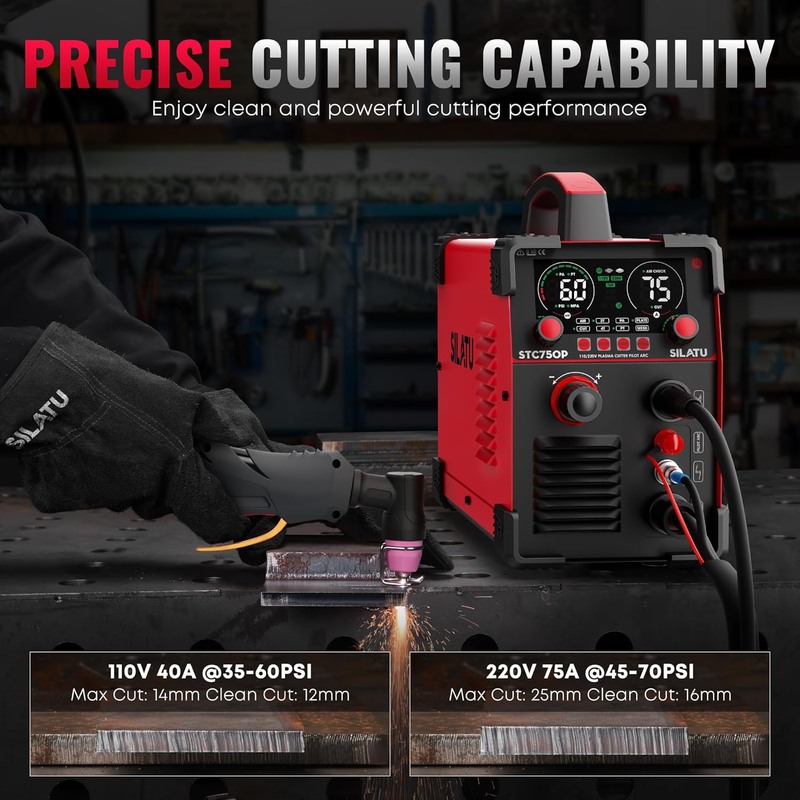

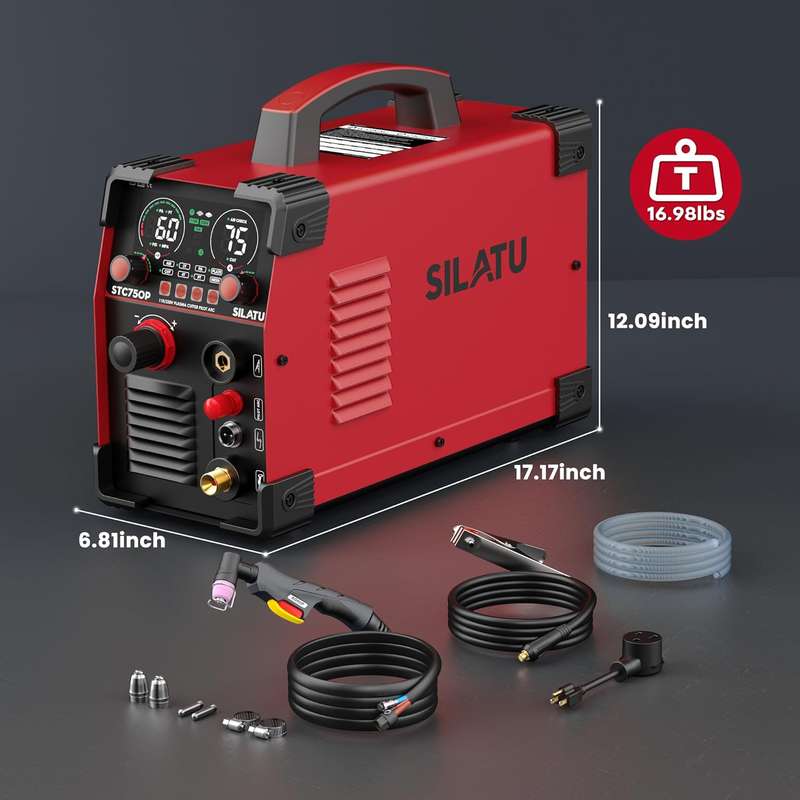

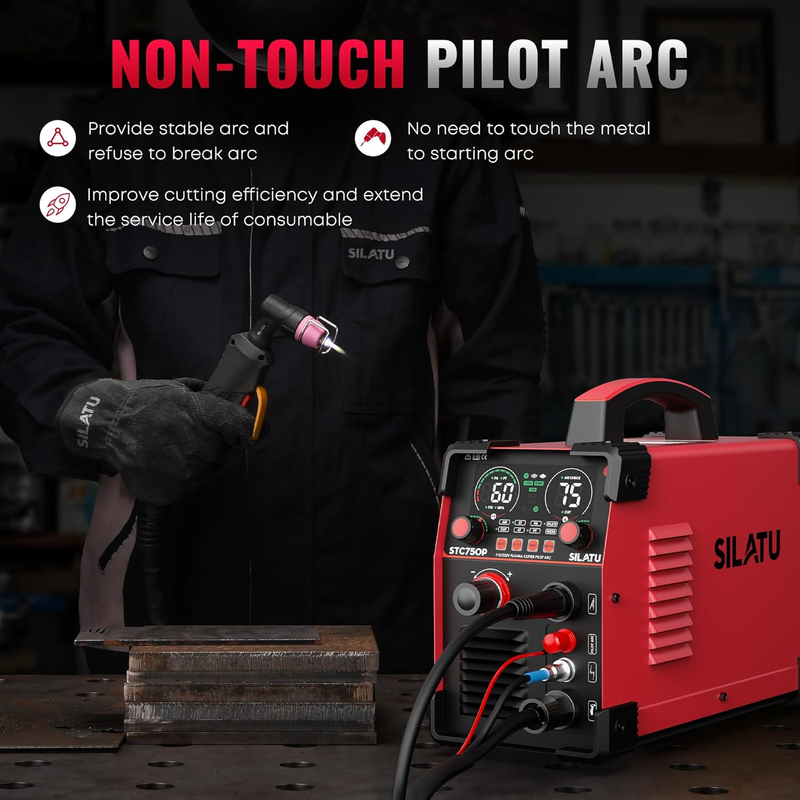

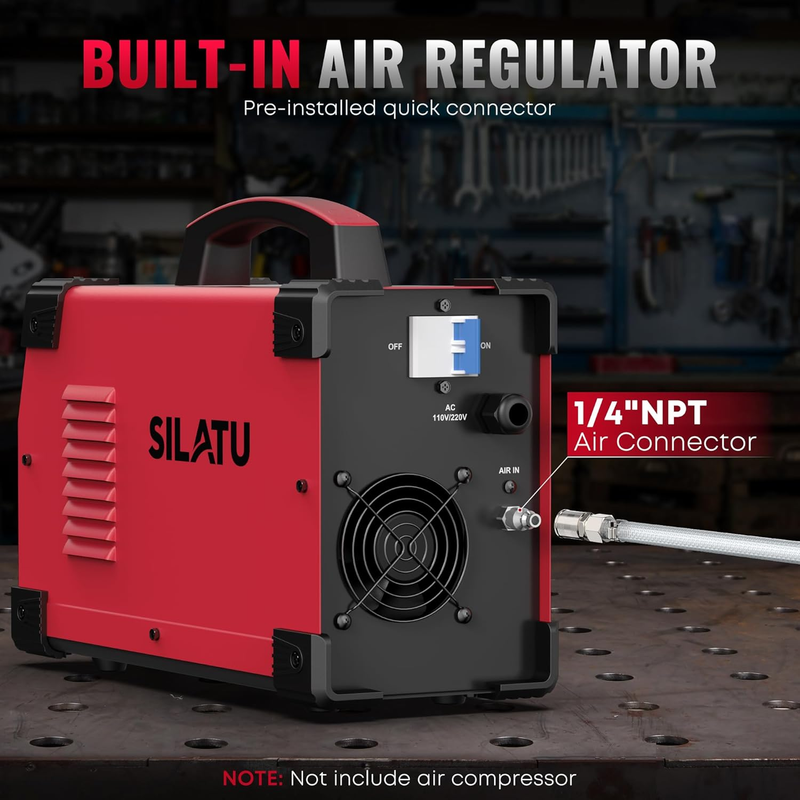

Fast Shipping On All Items 30 Days Money Guarantee Customer Support Excellent Service 100% Satisfaction Satisfaction Guaranteed We ship to US territories and worldwide. Please contact us if you have any special shipping instructions. 110/220V Dual Voltage IGBT Inverter Plasma Cutter Machine, 1'' Max Cutting Thickness for Beginners DIY (Red) Specification Item model number STC750P Red Part Number STC750P 110/220V Batteries Required? No Power Source ac Item Package Quantity 1 Color Red/Black Product Dimensions 17.17 x 6.81 x 12.09 inches Material Iron Item Weight 16.98 pounds Size STC750P 110/220V Voltage 110220 Volts Model STC750P Red Manufacturer SILATU Included Components Simple Operation: Built-in Air Regulator, Non Touch Pilot Arc; Powerful Performance: Max Cutting 25mm @220V 75A 70PSI 6.81 inches x 17.17 inches x 12.09 inches. Weight: 16.98 lb Plasma Cutting Thickness: The plasma cutting equipment with advanced IGBT inverter technology, the 50/60 Hz high-frequency pilot arc plasma cutter supports dual voltage inputs of 110V and 220V, and operates at 60% duty cycle. The 110V current range is 15-40A, which is suitable for home and workshop use. The 220V current range is 15-70A, which is suitable for DIY projects and heavy-duty tasks. The recommended maximum cutting thickness is 14mm at 40A and 45 PSI on 110V, And 25mm at 75A and 70 PSI on 220V Non Touch Pilot Arc Plasma Cutter: The STC750P plasma cutter with pilot arc function, It?s a high-frequency non-contact arc starting method, This means the torch head doesn't need to make contact with the metal plate. With the addition of a PA (Pilot Arc) adjustable function, the maintenance time of the pilot arc is extended, reducing energy consumption during non-cutting periods and minimizing electrode wear, extend consumables life Air Sensor Technology: The air sensor built in machine displays the air pressure on the front panel of the machine. Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). An air filter is installed at the back of the machine, equipped with a quick-connect 1/4 NPT air connector, ready for use right out of the box. Once connected to an air compressor, the recommended air pressure should be within 70 PSI, with a flow rate of 250 liters per minute.(Note: Purchase the air compressor separately) PT/2T/4T/PA Function: The post-time function can be adjusted between 3-15 seconds, helping to cool the torch head and extend the life of consumables. A cooling time of 4-8 seconds is generally recommended. The 2T and 4T modes offer automated cutting control, relieving the user's hand. 2T is semi-automatic control to ensure fast and flexible cutting; 4T is fully automatic control to achieve long-term cutting. The PA setting adjusts the duration of the pilot arc, with longer settings ideal for cutting mesh metal and shorter settings beneficial for extending the life of consumables Large Digital Screen Display: The digital display screen shows parameters like air pressure, voltage, and current, enabling users to monitor the equipment's status in real-time and make adjustments as needed, enhancing operational efficiency. In the event of a malfunction, the screen displays an error code, facilitating quick troubleshooting, ensuring system safety and extending machine life 100% Duty cycle in light work, 60% Duty cycle in heavy work; Max cutting thickness 9/16'' in 110V 45PSI 40Amps 100mm/min cutting speed, Max cutting thickness 1'' in 220V 70PSI 75Amps 150mm/min cutting speed Product description SILATU 75Amps HF Non-Touch Pilot Arc Plasma Cutter Machine 1 PRECISE CUTTING ABILITY 2 NON TOUCH PILOT ARC 3 2T/4T FUNCTION 4 PA/PT ADJUSTABLE 5 CUTTING SURFACE DISPLAY 1 SYSTEM SECURITY CODE 2 DUAL VOLTAGE 110/220V 3 BUILT-IN AIR REGULATOR 4 DIGITAL SCREEN DISPLAY 5 SAFETY RELIABLE 1 PANEL INSTRUCTION 2 ACCESSORIES 3 SPECIFICATION SILATU PLASMA CUTTING EQUIPMENT Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 163 4.3 out of 5 stars 163 4.3 out of 5 stars 163 4.3 out of 5 stars 163 4.3 out of 5 stars 163 4.3 out of 5 stars 163 4.3 out of 5 stars 163 Price $299.99$299.99 $149.99$149.99 $189.99$189.99 $279.99$279.99 $397.99$397.99 $547.49$547.49 $549.99$549.99 Max Current 75 Amps 55 Amps 65 Amps 75 Amps 65 Amps 85 Amps 85 Amps Input Voltage 110/220V 110/220V 110/220V 110/220V 110/220V 110/220V 110/220V Arc Starting Type Non Touch Pilot Arc Non Touch Pilot Arc Non Touch Pilot Arc Non Touch Pilot Arc Blow Back Pilot Arc Non Touch Pilot Arc Blow Back Pilot Arc HF/NON-HF HF HF HF HF NON-HF HF NON-HF Max Cutting Thickness 220V 25mm; 110V 14mm 220V 16mm; 110V 12mm 220V 18mm; 110V 12mm 220V 25mm; 110V 14mm 220V 25mm; 110V 14mm 220V 32mm; 110V 15mm 220V 35mm; 110V 15mm Clean Cutting Thickness 220V 16mm; 110V 12mm 220V 13mm; 110V 10mm 220V 14mm; 110V 10mm 220V 16mm; 110V 12mm 220V 15mm; 110V 12mm 220V 25mm; 110V 12mm 220V 25mm; 110V 12mm Plasma Torch Consumable AG60P Consumable AG60P Consumable AG60P Consumable AG60P Consumable IPT40 Consumable P80 Consumable IPT40 Consumable Duty Cycle 60% @75A 60% @55A 60% @65A 60% @75A 60% @65A 60% @85A 60% @85A Pre-installed Air Regulator ? ? ? ? ? ? ? 2T/4T Auto-Cutting ? ? ? ? ? ? ? PA/PT Function ? ? ? ? ? ? ? SHIPPING . We ship to US territories and worldwide. Please contact us if you have any special shipping instructions. Return Policy ? We guarantee against any defective or misrepresented products. The original shipping label must be sent back to us to validate the return. A full refund can only be issued during the first 30 days upon receipt of the product. ? Returns will be voided if the product is mishandled or physical damaged by customer. ? Buyer will be responsible for all kind of return shipping/shipment to the seller for resolving the problem. ? Returns made for all non-defective, undamaged products are subject to a 15% restocking fee. Shipping and handling fees are absolutely non-refundable. If an item is returned to us due to an address issue, we do charge a reshipping fee to reship. If you would like a refund, there will be a 15% restocking fee applied. ? All returned products need to be assigned an RMA # (Return Merchandise Authorization #) prior to return. Please contact us through's messaging system to obtain an RMA# for the return. Any returned product without an RMA # on package will not be accepted or processed. ? Please contact us before returning. Feedback ? We appreciate your feedback and our system will automatically leave feedback for you after bid ends. ? Please contact us through message center if you have any problems, we will always try our best for 100% customer satisfaction. Payment Options Shop With Confidence
