8536SBG2V02S 18A 460V~ 5HP 3P 3PH and 50 similar items

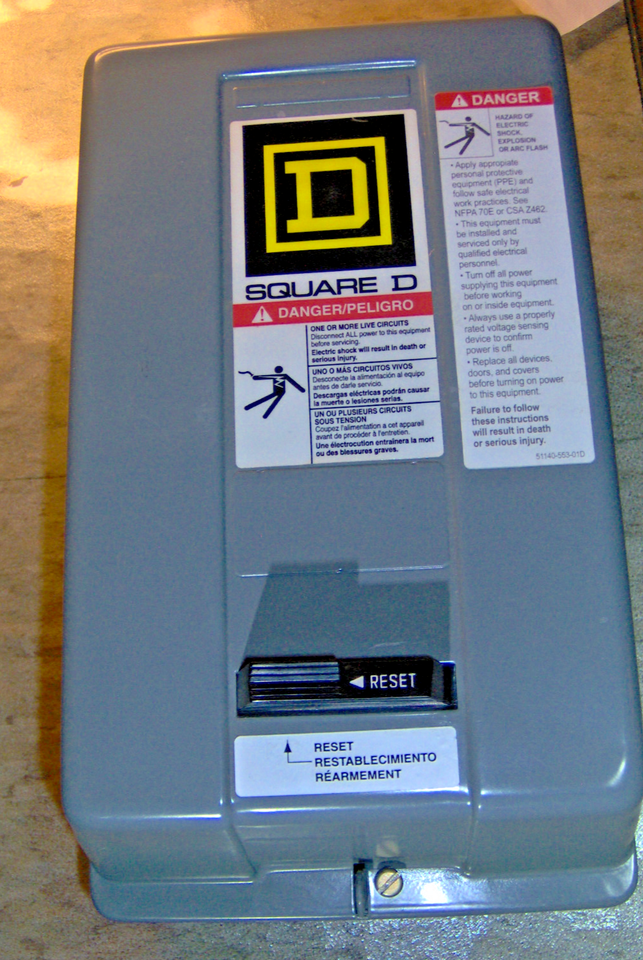

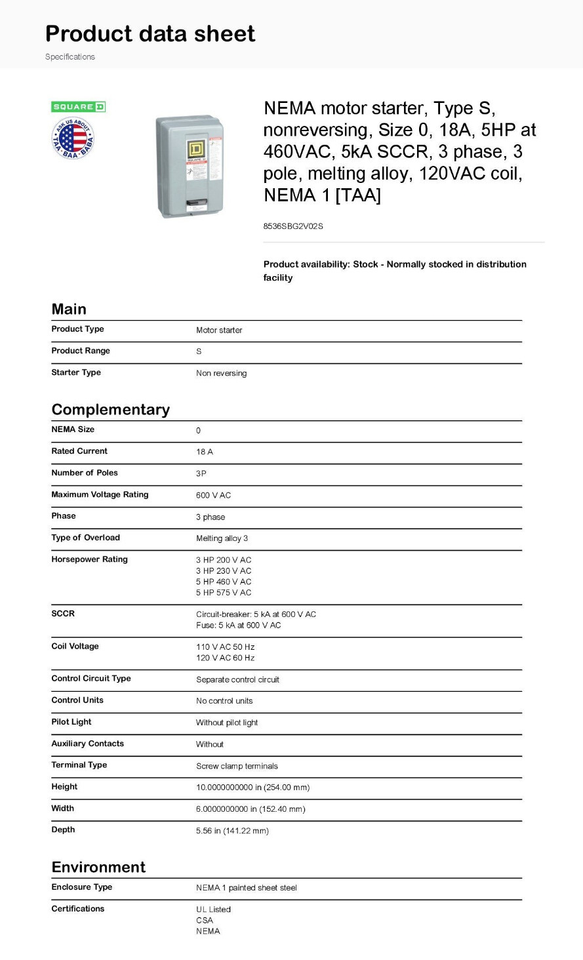

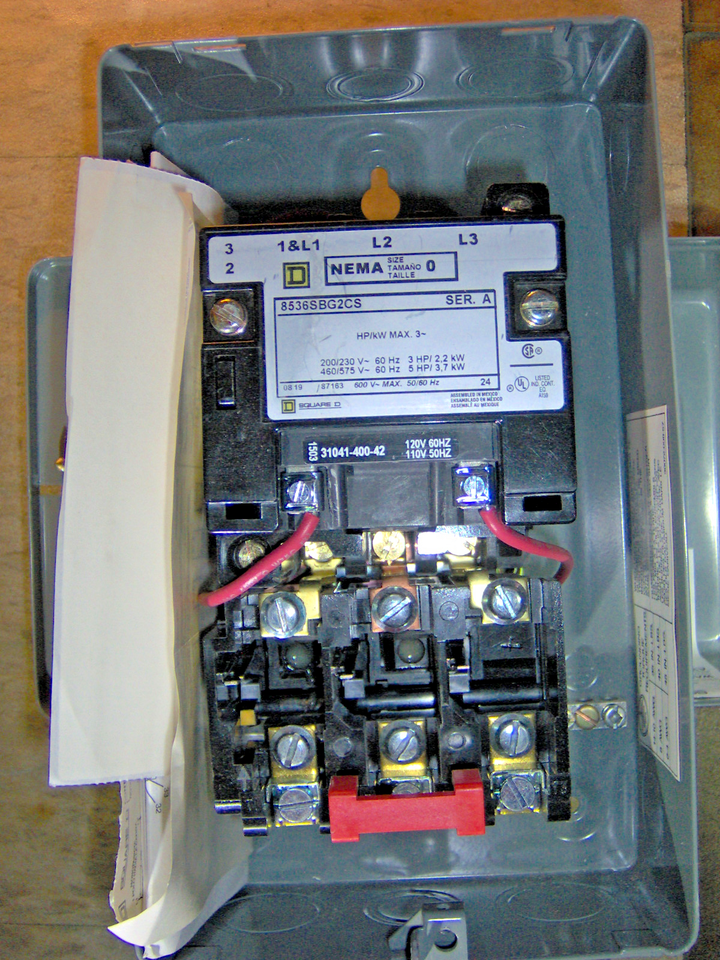

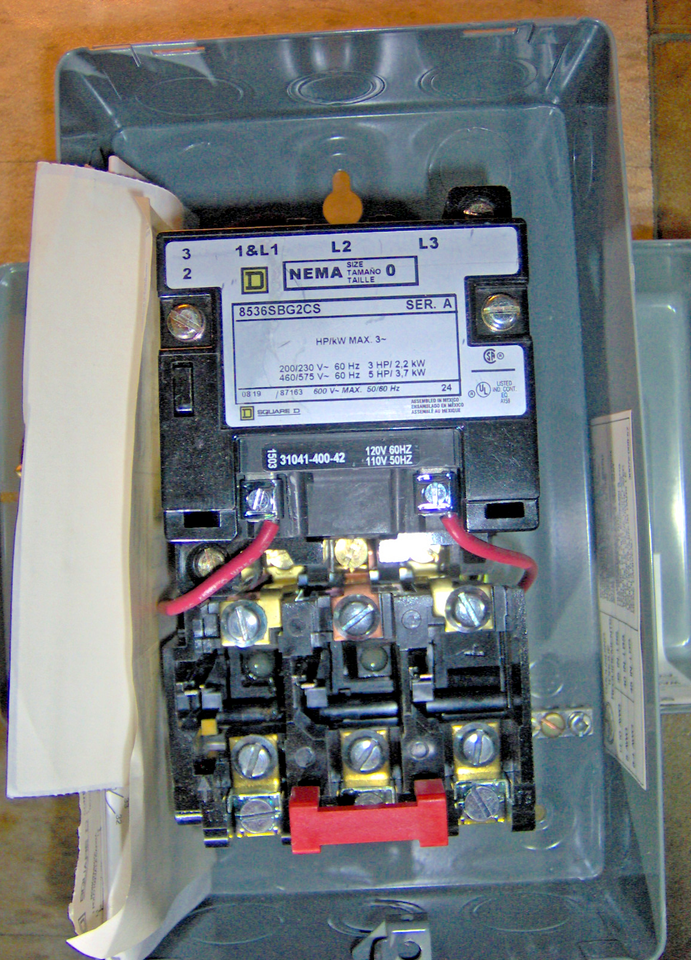

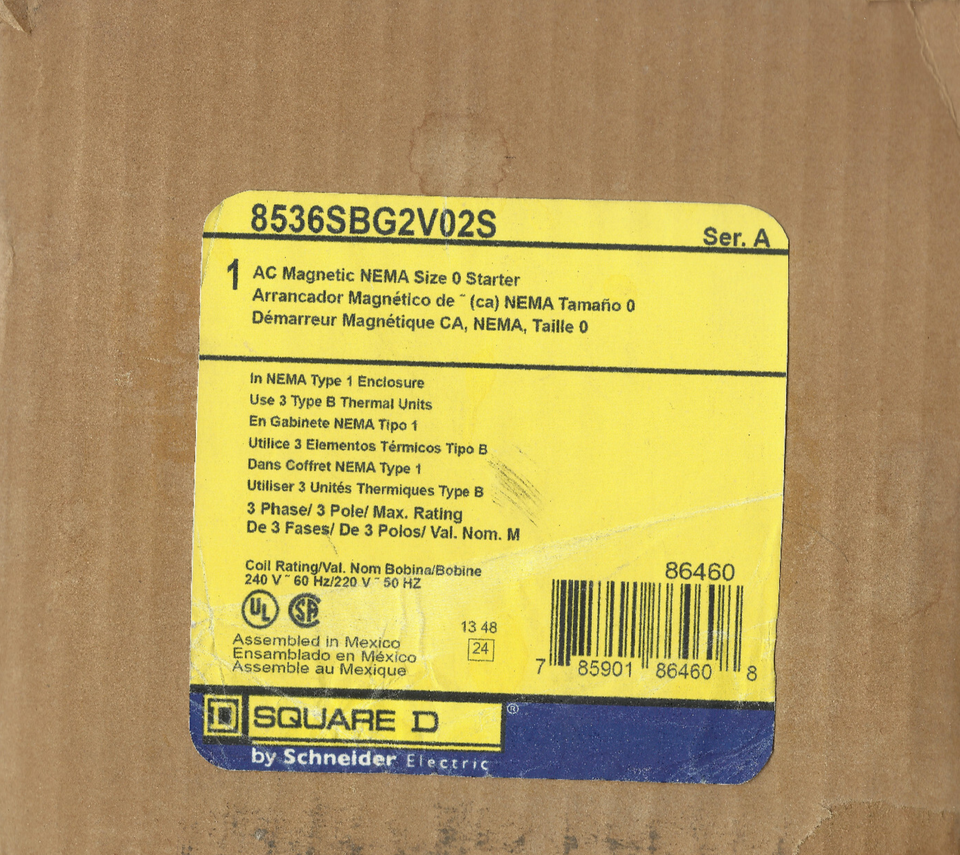

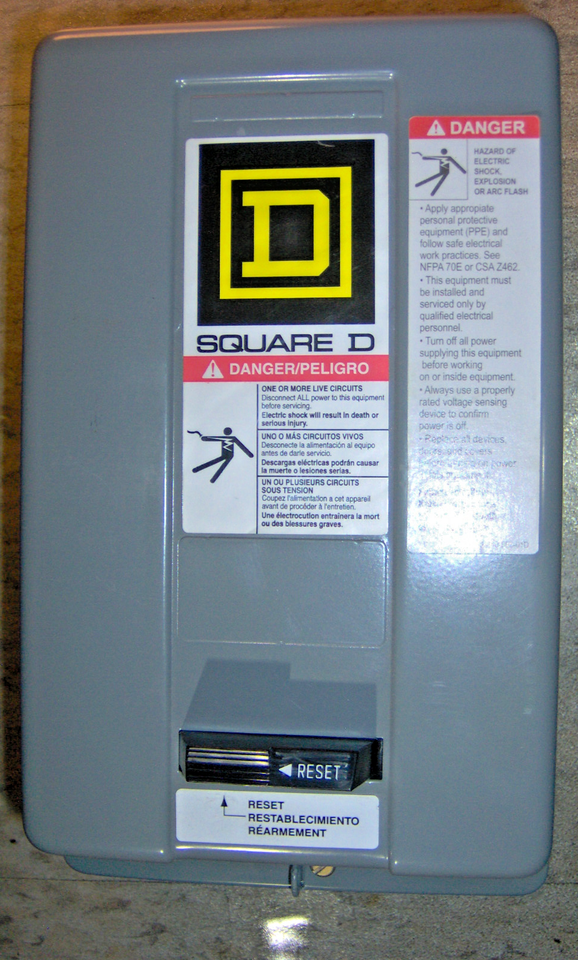

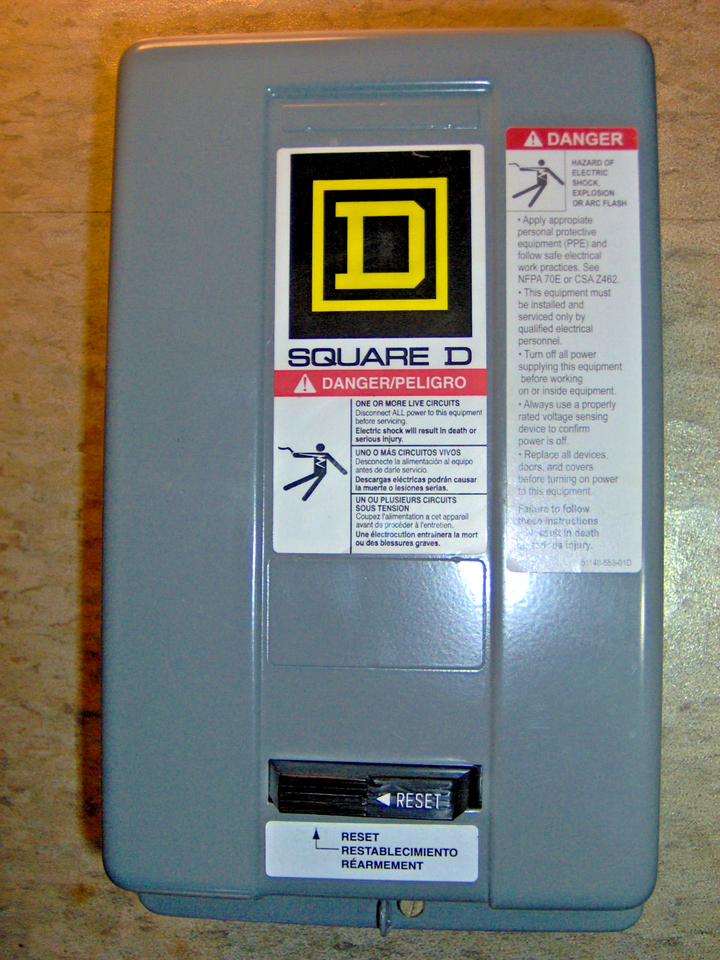

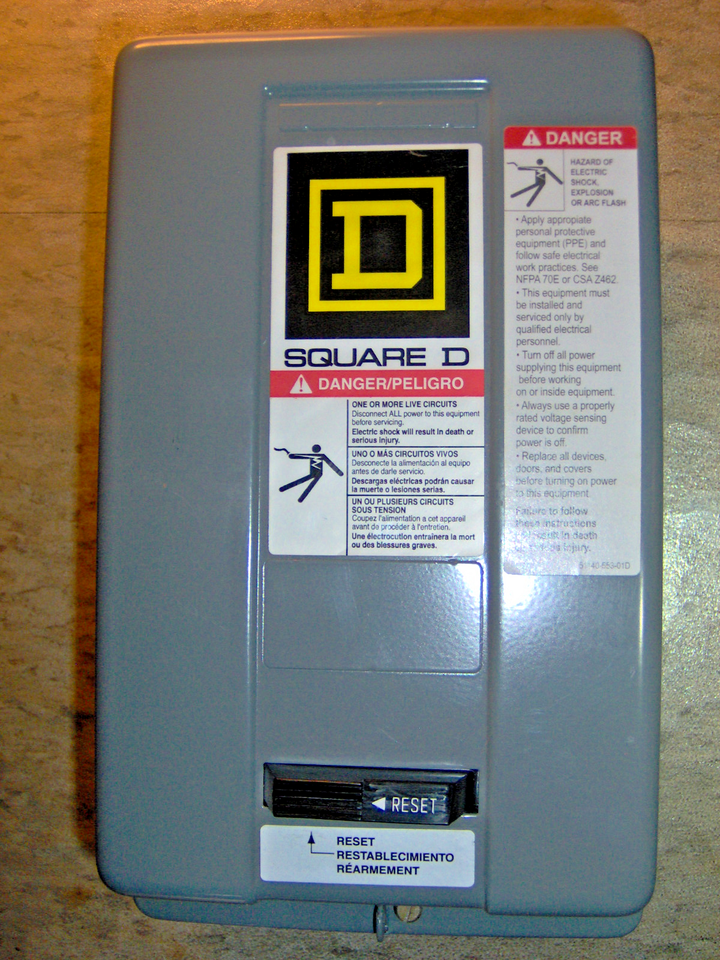

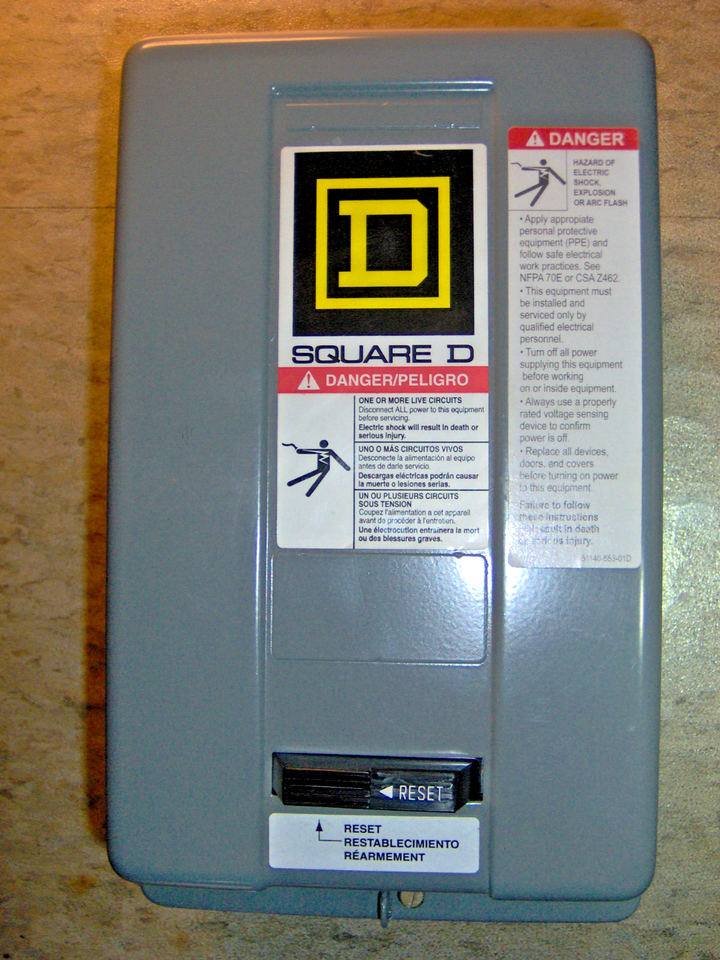

FOR SALE IS ONE (1) NEW SQUARE D brand AC MAGNETIC STARTER MANUFACTURED BY SCHNEIDER ELECTRIC MPN 8536SBG2V02S UPC# 785901864608. NEW IN FACTORY BOX WITH ALL DOCUMENTATION. THIS SQUARE D brand STARTER IS A TYPE S NON REVERSING MOTOR STARTER DESIGNED FOR CONTROLLING THREE PHASE AC MOTORS. THIS IS MANUFACTURED BY SCHNEIDER ELECTRIC UNDER THE SQUARE D BRAND.Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. Type S non-reversing NEMA motor starters are UL listed and CSA certified. NOTE - PLEASE REVIEW SPECIFICATIONS AND UPC# OF THIS ITEM, SQUARE D MANUFACTURERS slight VARIATIONS OF THIS 8536SBG2V02S USING DIFFERENT UPC #s. YOU WILL RECEIVE ONE (1) NEW SQUARE D brand MAGNETIC STARTER MPN 8536SBG2V02S UPC# 785901864608, AS PICTURED, SHIPPED BY MY SHIPPER OF CHOICE DUE TO WEIGHT..... Key Specifications Square D 8536SBG2V02S AC MAGNETIC STARTER BY SCHNEIDER ELECTRIC, UPC# 785901864608 (you will receive the exact item featured in pictures) NEMA Size: 0 Amperage Rating: 18 A Horsepower Ratings: 3 HP at 200/230 VAC 5 HP at 460/575 VAC Voltage: 600 VAC maximum Coil Voltage: 110/120 VAC, 50/60 Hz Number of Poles: 3 Phase: 3-phase Overload Relay Type: Melting alloy with Type B thermal units Short Circuit Current Rating (SCCR): 5 kA (when protected by appropriate circuit breaker or fuse) Enclosure: NEMA 1 (general purpose) Dimensions: 10.00" H x 6.00" W x 5.56" D Mounting: Screw clamp terminals Certifications: UL listed and CSA This starter is suitable for applications such as HVAC systems, conveyor belts, water pumps, and compressors, providing a dependable means of starting and stopping motors. Its compact design and robust construction ensure reliable operation in various industrial environments. type : Manual Motor Starter / Manual Motor Switch BID AND BUY HERE IN IN ABSOLUTE CONFIDENCE SINCE I HAVE THOUSANDS OF POSITIVE FEEDBACK AND TEN+ YEARS EXPERIENCE. I SHIP WITHIN TWO DAYS OF RECEIPT OF PAYMENT, OFTEN THE NEXT DAY. $5.81 ECONOMY GREEN SHIPPING USING RECYCLED PACKAGING MATERIALS AND ENVIRONMENTALLY FRIENDLY MATERIALS TO ANYWHERE USA. I DO NOT SHIP ANYWHERE ELSE. HAVE A GREAT DAY AND THANK YOU FOR STOPPING BY.
