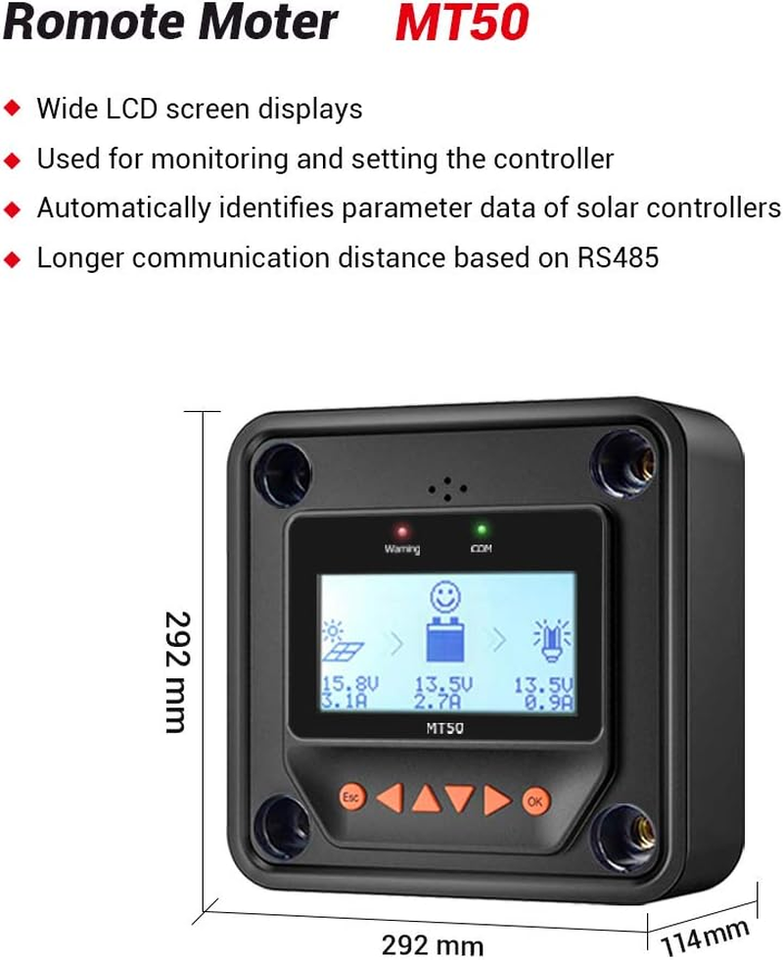

50A MPPT Solar Charge Controller and 50 similar items

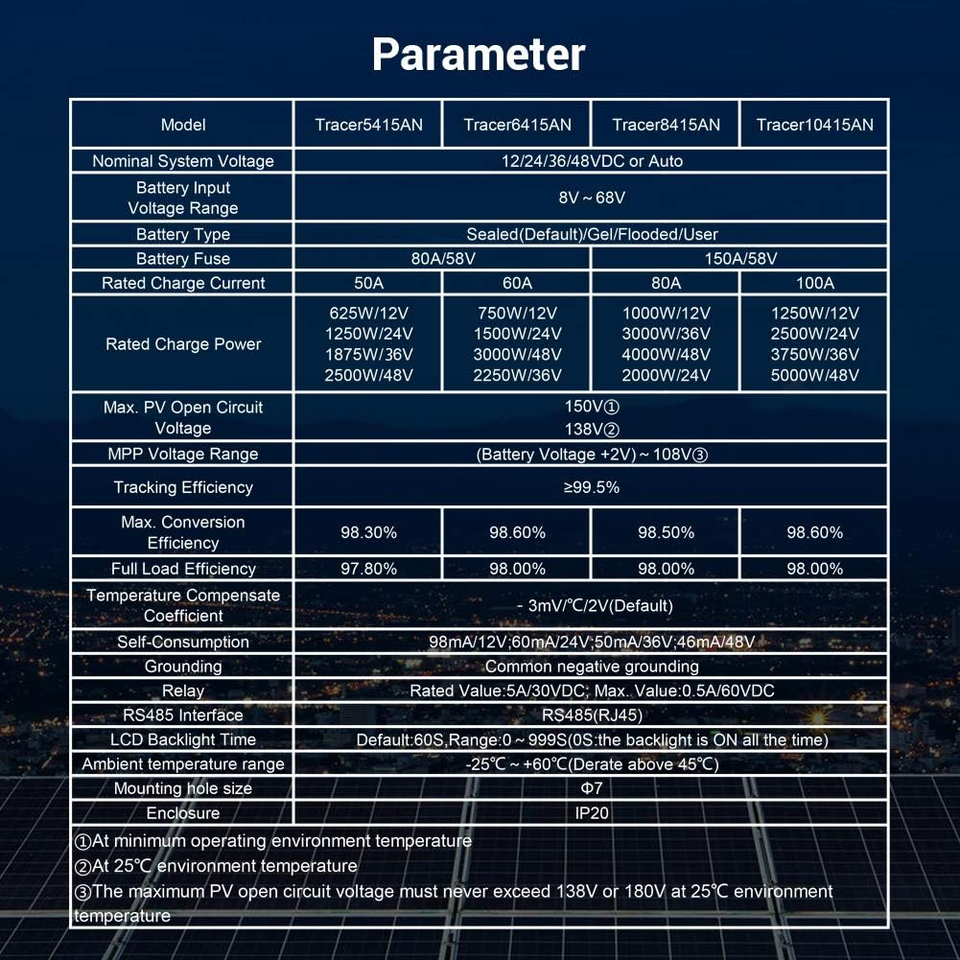

Fast Shipping On All Items 30 Days Money Guarantee Customer Support Excellent Service 100% Satisfaction Satisfaction Guaranteed We ship to US territories and worldwide. Please contact us if you have any special shipping instructions. 50A MPPT Solar Charge Controller 12V/24V/36V/48V Auto Max.Pv 150V Input Negative Ground Solar Panel Charge Regulator with MT50 Remote Meter Temperature Sensor RTS PC Communication Cable RS485 Specification Display Type LED Batteries required No Brand EPEVER Material Plastic Charging Port Type RS485 Item Weight 4.46 Kilograms Color 50A+MT50+RTS+RS485 Voltage 24 Volts Package Dimensions 13.46 x 10.94 x 7.28 inches Manufacturer EPEVER 10.94 inches x 13.46 inches x 7.28 inches. Weight: 4.46 kg MPPT solar charge controller advanced MPPT technology ultra-fast tracking speed, with tracking efficiency no less than 99.5%. High quality low failure rate components of ST and Infineon to ensure the product's life. With the adaptive three-stage charging mode based on digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of battery and significantly improve the system performance. The load, utility or generator auto-control relays make it easy to compose the hybrid power system. 48v/36v/24v/12v Auto identifying system voltage. Auto control system to limit the charging power current go over the rated value. Wide range of maximum power point operating voltage, improved photovoltaic module utilization, rated charging power charging current double automatic limiting function. Support 4 charging options: Sealed, Gel, Flooded and User. Standard Modbus communication protocol with RS485 interface, to monitor or set the parameters by using the phone Apps, MT50 Meter and PC software. Dual RS485 Port (RJ45 Connector), it support up to 8 charging in parallel to expand system and meet with different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household system and field monitoring etc. Product Description Tracer AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard. With the adaptive three-stage charging mode based on digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of battery and significantly improve the system performance. The load, utility or generator auto-control relays make it easy to compose the hybrid power system. The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customer to expand the application, it support up to 8 charging in parallel to expand system and meet with different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household system and field monitoring, etc. Back made of aluminum alloy, strong heat dissipation Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol Utility or generator auto-control relays make it easy to compose the hybrid power system CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3) High quality low failure rate components of ST and Infineon to ensure the product?s life Battery Type: Lead-acid batteries and Lithium-ion batteries. Auto control system to limit the charging power current go over the rated value. Hundred percent full load operation in working environment temperature range within charging discharging Battery temperature compensation function Real-time energy recording and statistical function Automatic over-temperature power reduction function To monitor or set the parameters by using the phone Apps or PC software. Always connect battery first Tracer AN series is a common-negative controller, according to the practical application, all the negative terminals of PV array, battery and load can also be ungrounded, but the grounding terminal on its shell must be grounded, which may effectively shield the electromagnetic interference from the outside, and prevent some electric shock to human body due to the electrification of the shell. For common-negative system, such as motorhome, it is recommended to use a common-negative controller; but if in the common-negative system, some common-positive equipment are used, and the positive electrode is grounded, the controller may be damaged. If the remote temperature sensor is not connected to the controller,, the default setting for battery charging or discharging temperature is 25 C without temperature compensation. Package includes: 1 * 5415AN Solar Charge Controller Nominal System Voltage: 12/24/36/48VDC or Auto Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V Battery Input Voltage Range: 8V?68V 1 * Remote Meter MT-50 MT50 can display various operating data and fault info the system. The information can be displayed on a backlit LCD screen The buttons are easy-to-operate, and the numeric display is readable. 1 * USB to RS485 cable USB to RS485 converter is used to monitor each controller using Solar Station PC software. The length of cable is 1.5m. TheCC-USB-RS485-150U connects to the RS485 Port on the controller. 1 * Remote Temperature Sensor Acquisition of battery temperature for undertaking temperature compensation of control parameters, the standard length of the cable is 3m. The RTS300R47K3.81A connects to the port on the controller. NOTE: The temperature sensor short-circuited or damaged, the controller will be charged or discharged at the default temperature 25 ºC. SHIPPING . We ship to US territories and worldwide. Please contact us if you have any special shipping instructions. Return Policy ? We guarantee against any defective or misrepresented products. The original shipping label must be sent back to us to validate the return. A full refund can only be issued during the first 30 days upon receipt of the product. ? Returns will be voided if the product is mishandled or physical damaged by customer. ? Buyer will be responsible for all kind of return shipping/shipment to the seller for resolving the problem. ? Returns made for all non-defective, undamaged products are subject to a 15% restocking fee. Shipping and handling fees are absolutely non-refundable. If an item is returned to us due to an address issue, we do charge a reshipping fee to reship. If you would like a refund, there will be a 15% restocking fee applied. ? All returned products need to be assigned an RMA # (Return Merchandise Authorization #) prior to return. Please contact us through's messaging system to obtain an RMA# for the return. Any returned product without an RMA # on package will not be accepted or processed. ? Please contact us before returning. Feedback ? We appreciate your feedback and our system will automatically leave feedback for you after bid ends. ? Please contact us through message center if you have any problems, we will always try our best for 100% customer satisfaction. Payment Options Shop With Confidence
