ISCAR GDMY 808 IC808 6404087 Carbide Inserts and similar items

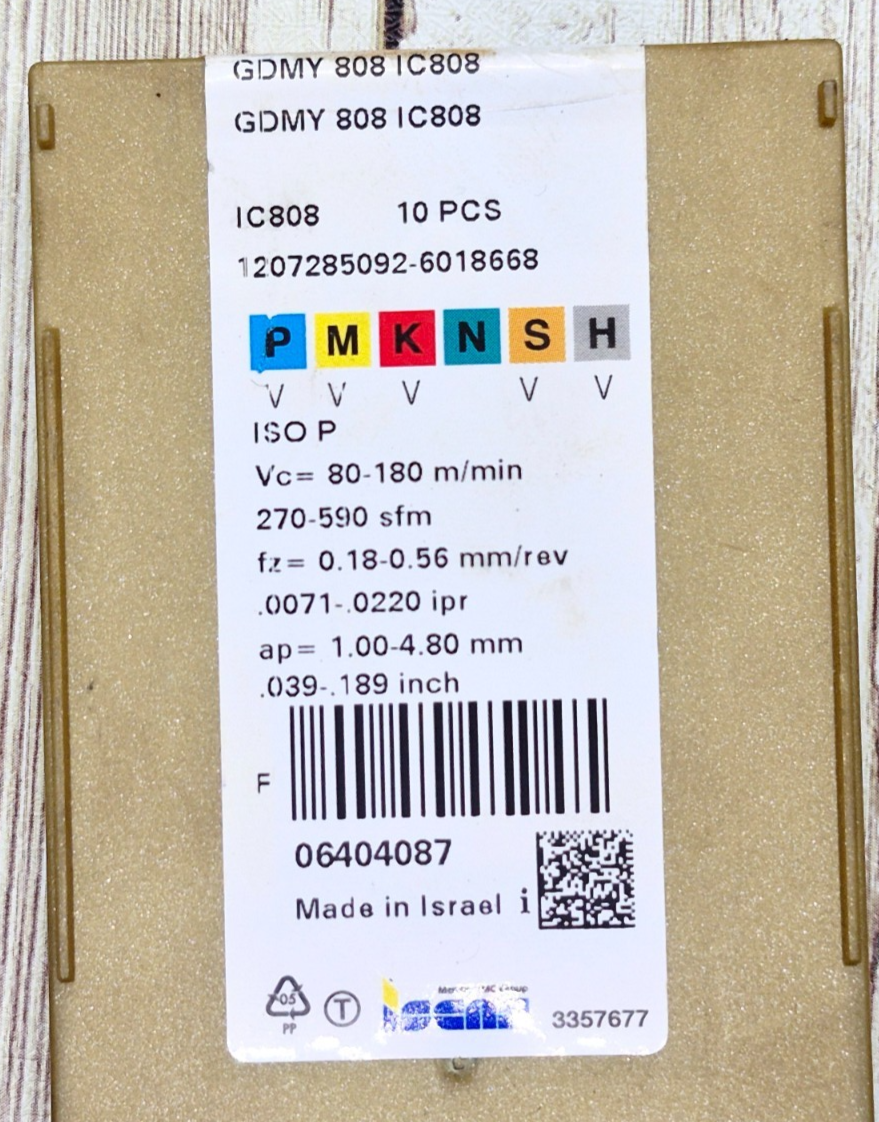

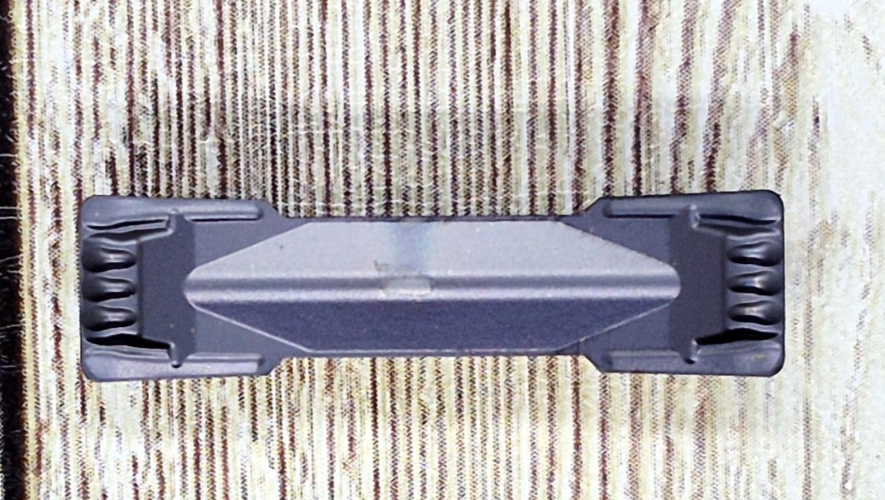

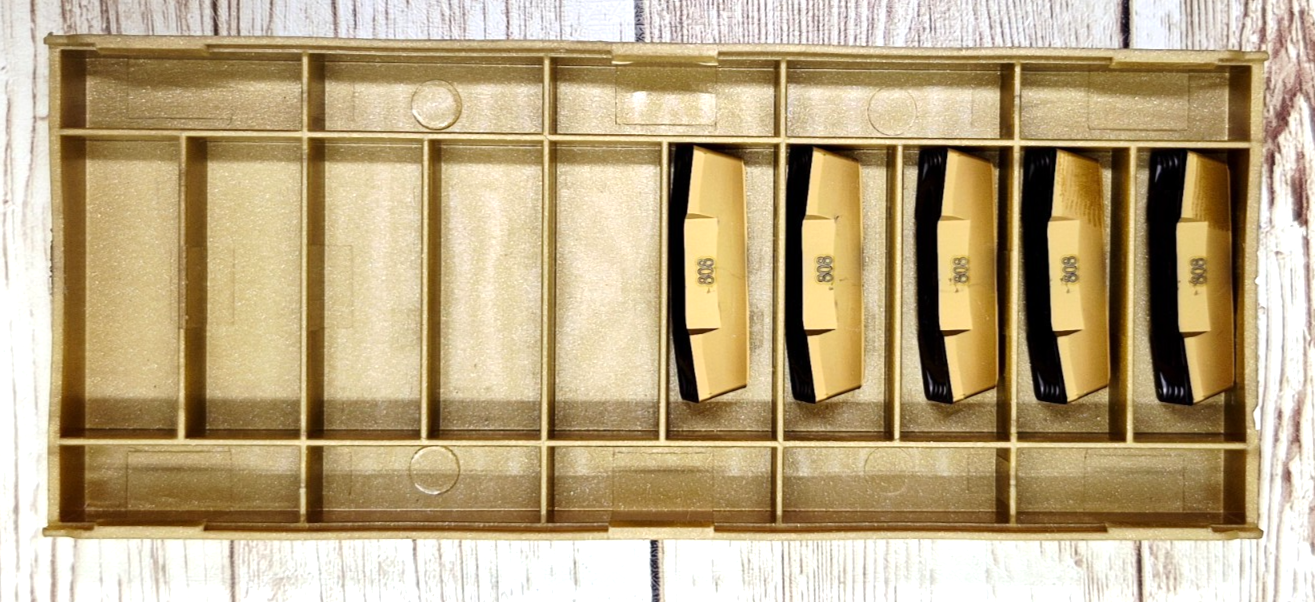

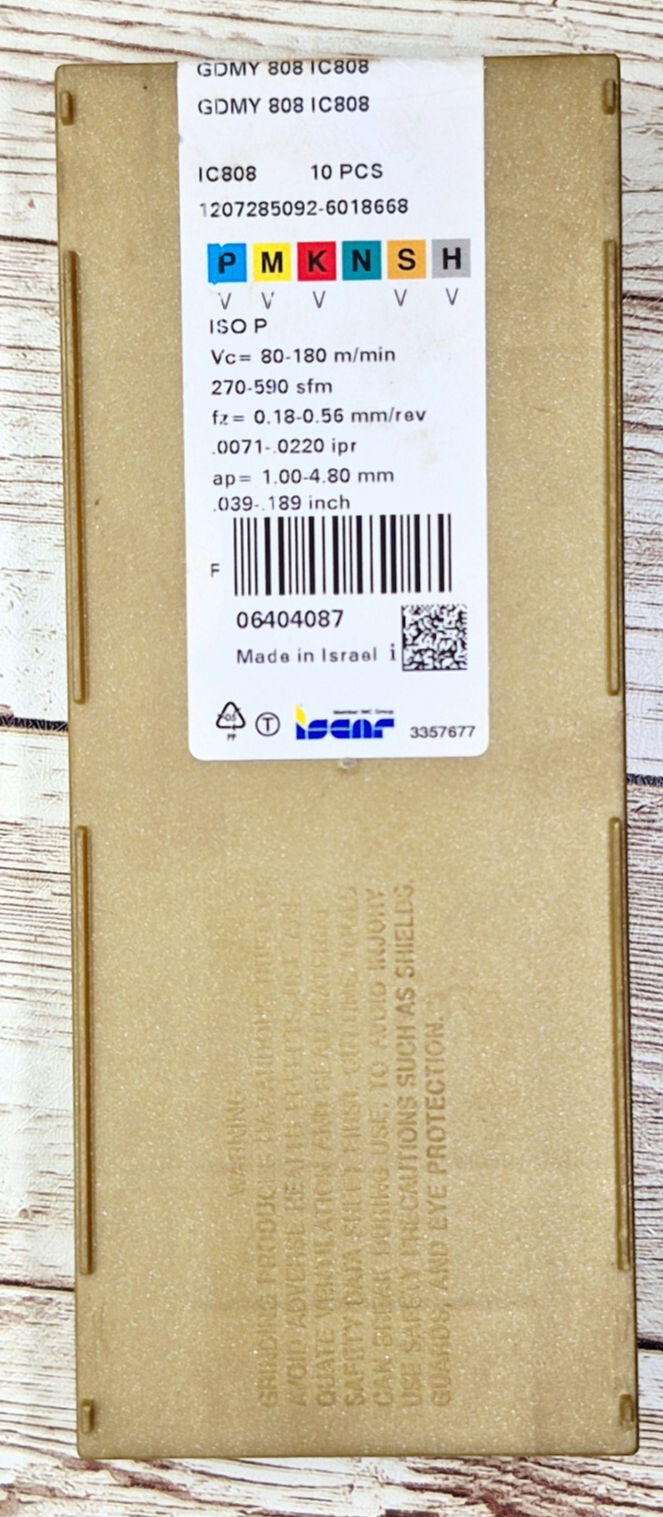

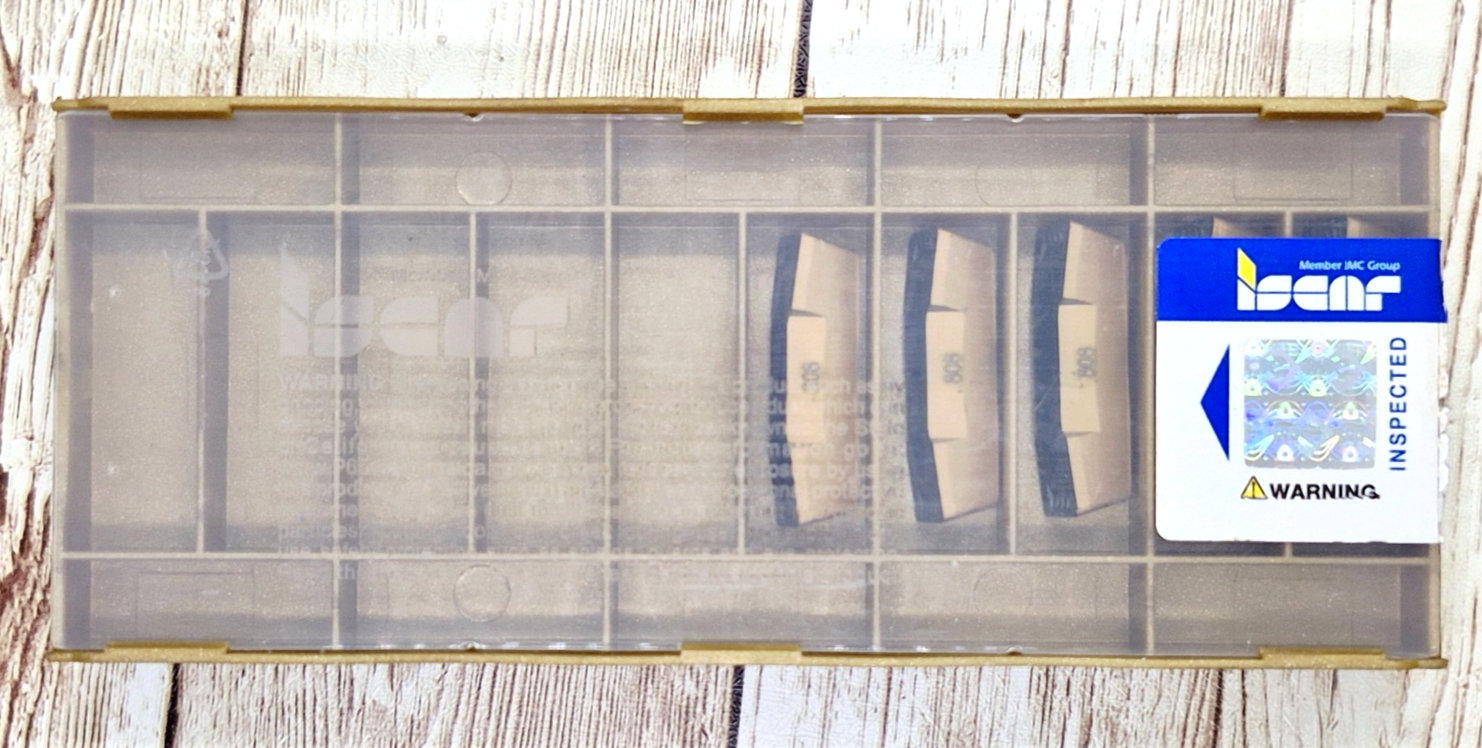

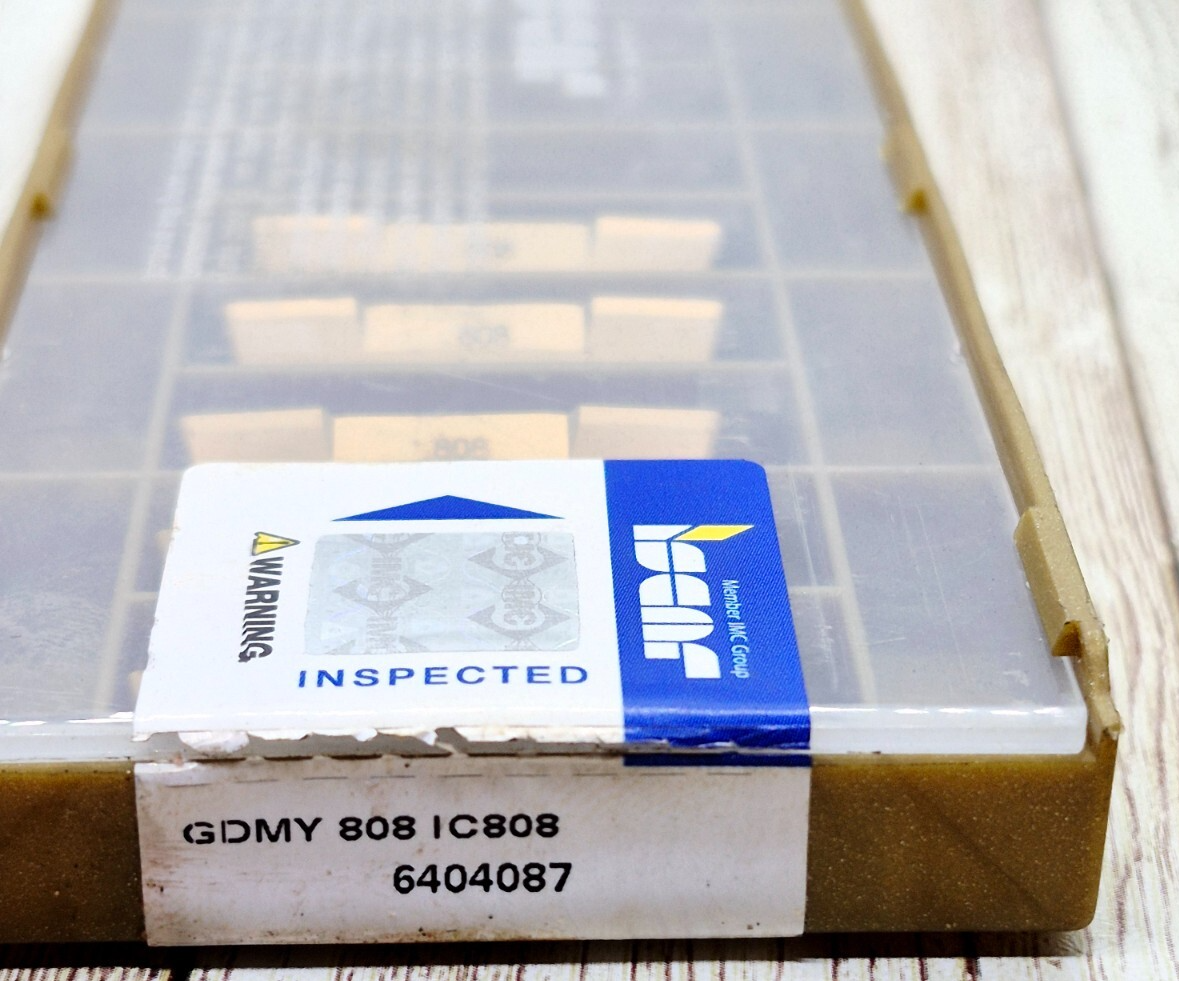

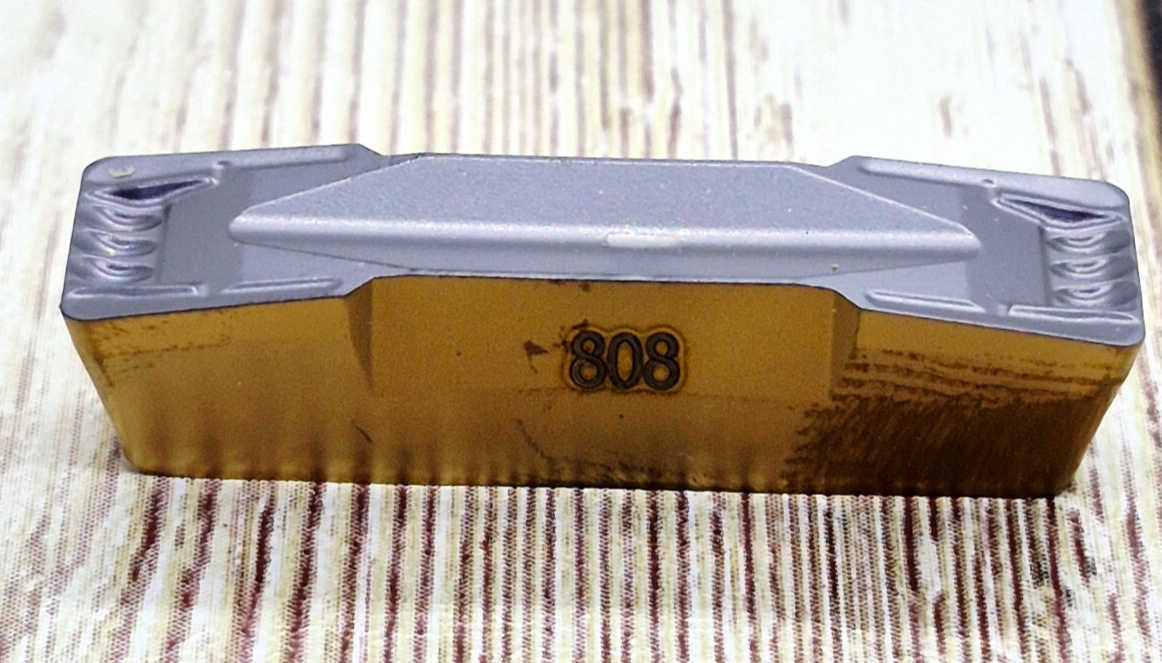

New, opened box. Buyer receives a pack of 5 inserts as shown. Specifications Insert Style GDMY Insert Size Code 808 Cutting Width (Decimal Inch) 0.3150 Cutting Width (mm) 8.00 Insert Hand Neutral Maximum Depth of Cut (Decimal Inch) 1.0630 Maximum Depth of Cut (mm) 27.00 Insert Material Carbide Manufacturer Grade IC808 Full Radius No Corner Radius (Decimal Inch) 0.0315 Corner Radius (mm) 0.80 Rake Positive Measurement Type Metric Insert Holding Method Clamp Insert Size 808 Material Grade Submicron Maximum Depth Of Cut Range (Decimal Inch) 1.0000+ Maximum Depth Of Cut Range (mm) 20.00+ Multi-use Tool Yes Series Cut Grip Coating Process PVD Rake Angle 7 Overall Length (Decimal Inch) 1.1811 Primary Workpiece Material Universal Primary Workpiece Material Code P; S; H; K; M Iso Code ISO 13399 Standards ISO 13399 UNSPSC Code 23242105 Chip Breaker Y Gage Diameter (Decimal Inch) 1.9685 Overall Width (mm) 8.00 Overall Width (Decimal Inch - 4 Decimals) 0.315 Coating/Finish AlTiN; TiN; TiAlN Country of Origin Israel
