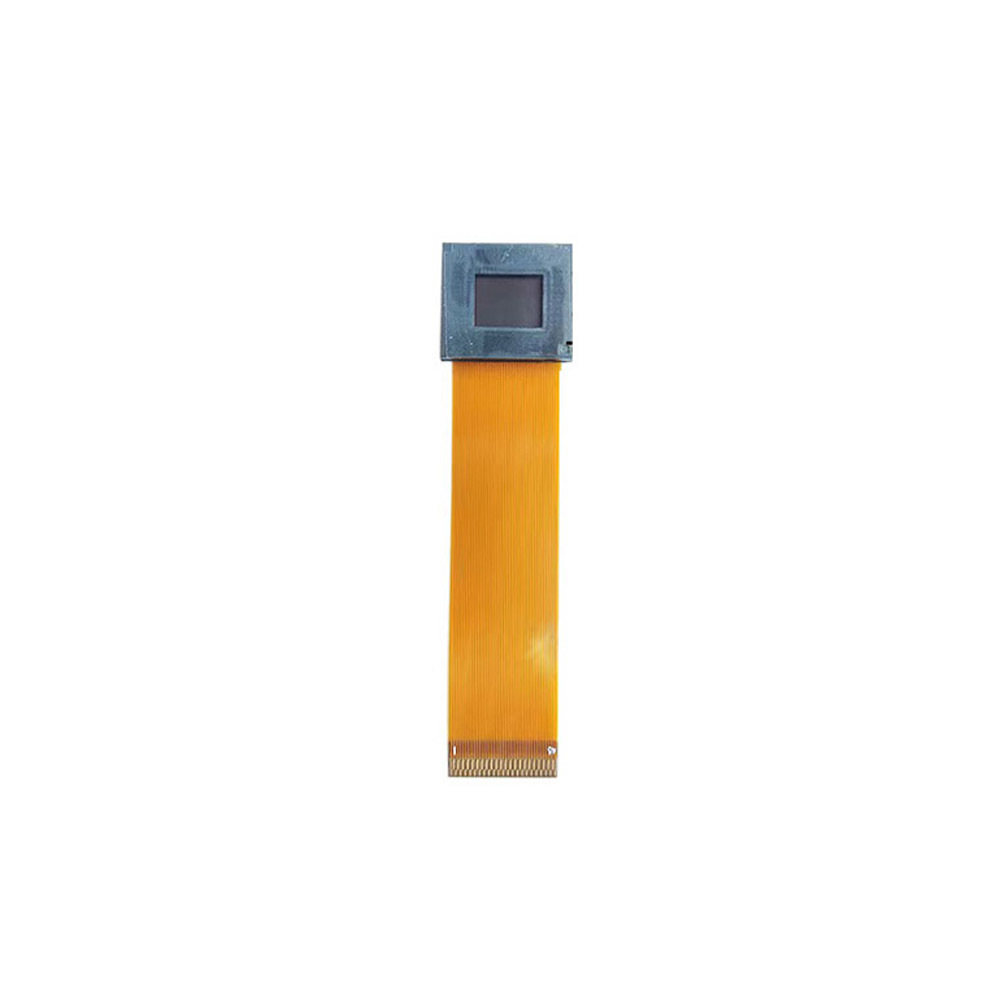

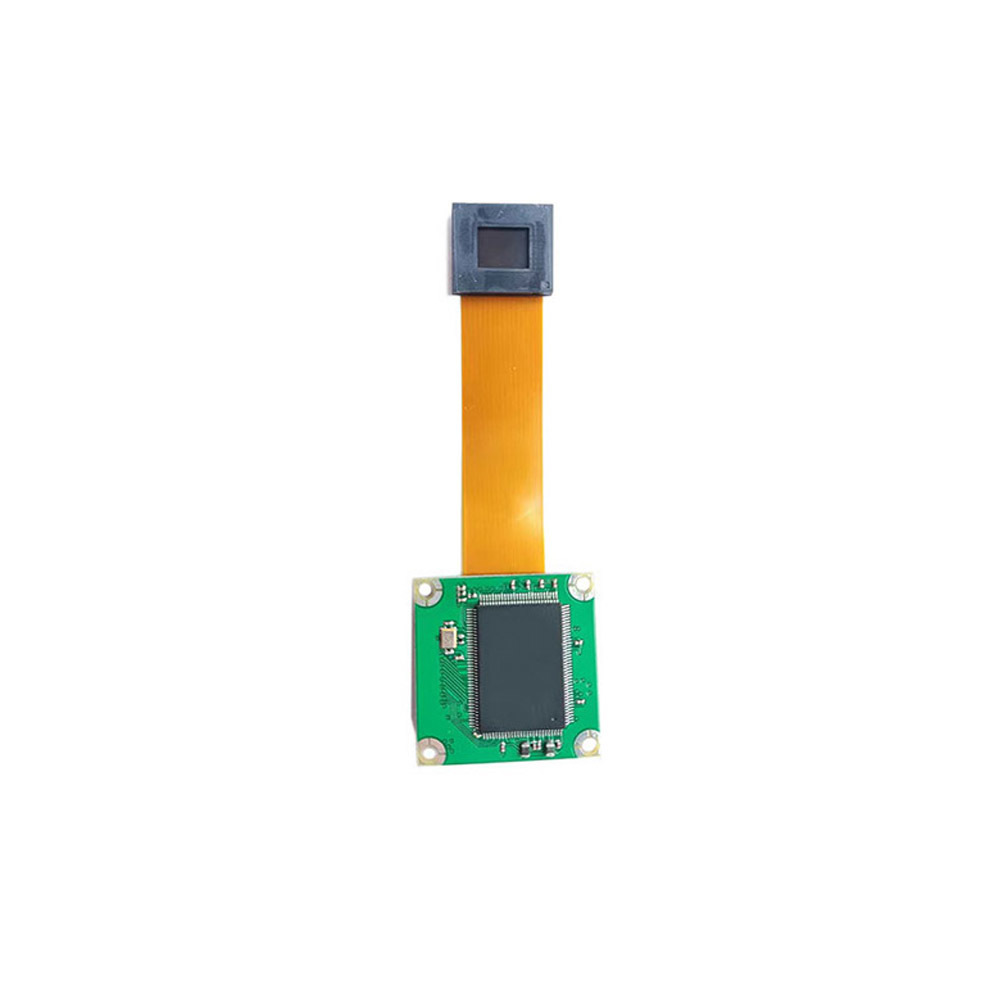

0.39 inch Micro Display 1024x768 for Military APPLICATION This 0.39 inch Microdisplay is a high-resolution emissive OLED microdisplay based on a CMOS backplane accessible through standard video interface; this micro display offers a high-resolution of 1024x768, a high display h igh contrast, excellent uniformity and grey level rendering; based on MICROOLED?s proprietary OLED-on-CMOS technology and this micro-oled screen module embeds low-latency video processing capabilities and manages look-up tables,it features?turing very high resolution at an extremely small footprint, low power consumption and excellent video picture quality, high industrial-level quality and specially used for Military devices. 0.39 inch Micro Display 1024x768 parameter: Part No:ZOMDP03CP Display Size: 0.39" Display Type: Micro SI-OLED Display module Resolution:Standard XGA resolution: 1024(H)x 768(V)20 extra lines and 20 extra columns for image position adjustment Number of pixels:1024 x 768 x4 sub-pixels active matrix = 3.2M dots Pixel arrangement:Square pixelarrangement Pixel pitch:7.6um x7.6um(sub-pixels 3.8umx3.8um) Active area:7.93mm x 5.99mm(0.39"diagonal) Luminance:MDP03CPFC: up to 250cd/m2, 73fL; MDP03CPWF: up to 400cd/m2: 117fL White color balance:ClExy(0.305,0.315)standard white @ 200 Cd/m2 (Other coordinates available on request) Video interface:Standard digital video interface (RGB 4:4:4, YCbCr 4:2:2);Compatible with Gray-encoded RGB 4:4:4 video data Latency:Minimal, constant latency guaranteed by design (less than 80uS @ 60Hz frame rate/63.5Mhz pixel clock) Frame rate:Typically 60 frames per second Control interface:Ic Non volatile memory: Embedded color correction and product traceability data Video processing: Embedded video processing for a perfect image quality and straightforward system integration Temperature sensor: Embedded dipitaltemperature sensor Operating voltage: Two modes available:Single supply mode= 3.3V-Li-lon battery compatible (lowest cost);Dual supply mode = 3.3V- Li-lon battery compatible and 1.8V (lowest power consumption) Voltage regulator:Embedded voltage regulators Cathode voltage:Embedded programmable negative cathode voltage generator Power consumption:~200mw in typical video mode Operating temperature range:MDP03CP:-40C to 70C Storage temperature:MDP03CP:-40C to 70C Mechanical Drawing Specification for CVBS Board: Packing details: 0.39" micro display 1024x768: 1pc Display adapter AV/CVBS driver board:1 pc
