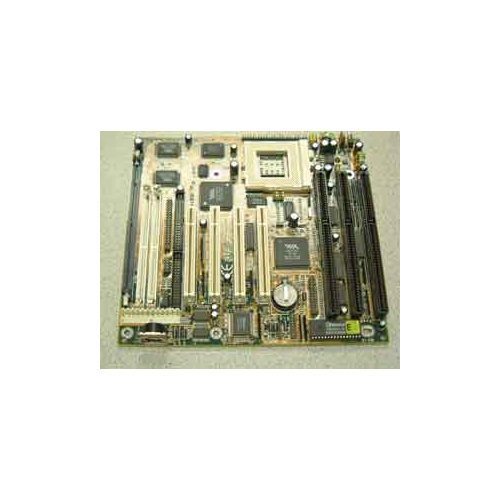

EPoX EP-5BVPXA Baby AT socket 7 motherboard and 50 similar items

Epox EP-5BVPXA Motherboard BIOS: Supports Award Plug Play BIOS The BIOS is stored in Flash EPROM form It provides better upgradeability for the system. Hardware Monitoring: Supports CPU Hardware sleep and SMM (System Management Mode) Accessories: 5BVPXA utilizes Lithium battery which provides environmental protection and longer battery life. Motherboard Specifications Model: Epox EP-5BVPXA Processor Support: Intel Pentium Processor, AMD K5/K6 Cyrix 6x86/6x86L/6x86MX operating at 90 ~ 333 MHz and P55C 321 ZIF socket 7 and scalability to accept faster Processors in the future. Chipset: VIA Apollo VIA VT82C585VPX PCIset chipset Onboard Cache: 512KB Onboard Pipelined Burst (synchronous) L2 Write Back/ Through Cache. Memory: Two 72-pin SIMM One 168-pin DIMM BIOS will automatically detect and configure FP/EDO and Synchronous DRAM Expansion Slots: Three 16 bit ISA slots Four 32 bit PCI slots Provides two independent high performance PCI IDE interfaces capable of supporting PIO Mode 3/4 and Ultra-DMA33 devices Rear Panel I/O Ports: 1 floppy port 1 parallel port (EPP,ECP port) 2 serial ports (16550 Fast UART compatible) and 1 USB Connector Supports a PS/2 style mouse and standard AT style keyboard connectors Internal I/O Interface: Two independent high performance PCI IDE interfaces capable of supporting PIO Mode 3/4 and Ultra-DMA33 devices The 5BVPXB supports four PCI Bus Masters and a jumperless PCI INT# control scheme which reduces configuration confusion when plugging in PCI I/O controller card(s) Form Factor: The hardware dimension is 8.66 x8.27 (220mm x 210mm ) with a four-layer-design technology.
