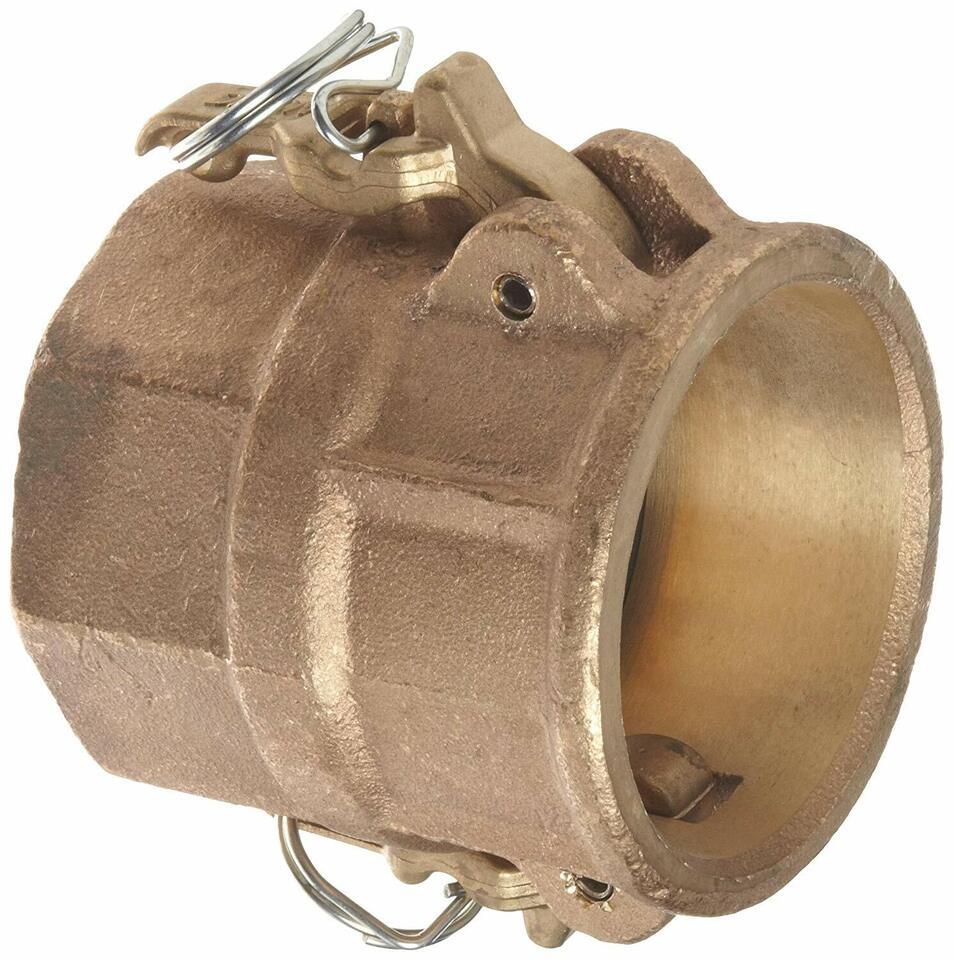

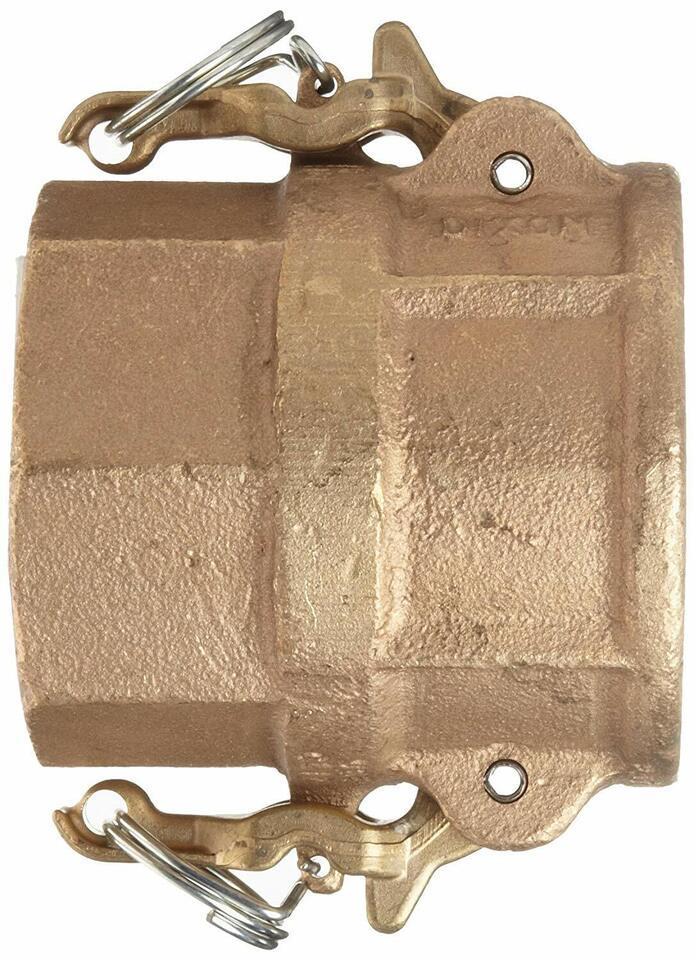

[Dixon BD250] Brass Boss Lock Type D Cam and and similar items

More Information BRAND Dixon Valve Coupling MPN BD250 SERIES Boss-Lock? PRODUCT Type D Coupler SIZE 2-1/2" MATERIAL Brass CONNECTION Female NPT PSI 150 PSI SEAL Buna-N CONSTRUCTION Buna-N gasket; Boss-Lock cam arms; Supplied with pull-ring safety clips APPLICATION Designed for use with liquids, consult Anderson Process for specific recommendations. SPECIFICATIONS Produced to interchange with all product produced to Commercial Item Description A-A-59326D. HOW IT WORKS To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter; The cast-in lugs allow safety clips to be attached once the lugs are passed through slots in the special cam lever arms providing a positive locking action. The pull ring safety clip simplifies the locking action on Boss-Lock couplers. No more inserting clips or dangling lanyards, just a twist and it's locked, giving you a low profile positive locking action.
