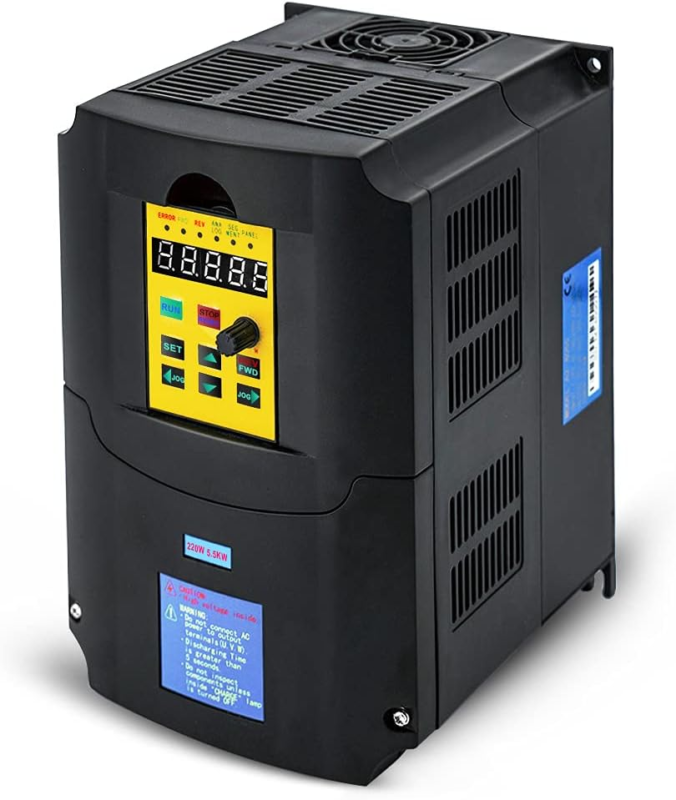

VFD 5.5KW 7.5HP 220V 1 or 3 Phase Input 3 and 48 similar items

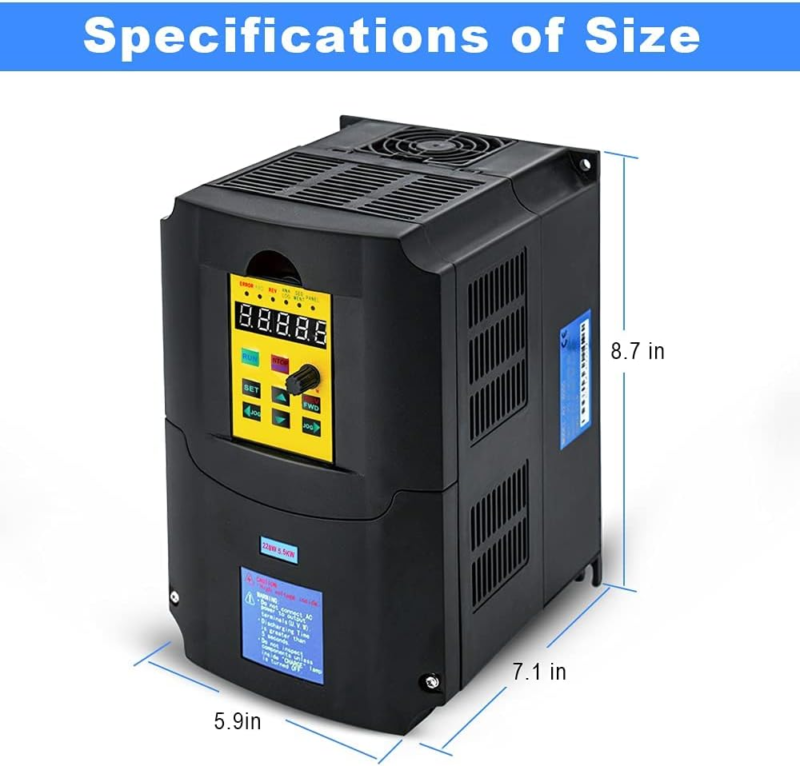

Fast Shipping On All Items 30 Days Money Guarantee Customer Support Excellent Service 100% Satisfaction Satisfaction Guaranteed VFD 5.5KW 7.5HP 220V 1 or 3 Phase Input 3 Phase 0-400HZ Output 36A Variable Frequency Drive Controller Vector Control Inverter Converter for CNC Motor Speed Control and Spindle Specification Display Type LCD Power Source 220v Brand Name HKS Standby Power Shutoff 90 Wattage 7.5 KW Input Voltage 220 Volts Item Dimensions L x W x H 10"L x 7"W x 6"H Model Number 5.5KW (7.5HP 220V) Style 5.5KW (7.5HP 220V) Item Weight 6.3 Pounds Output Voltage 220 Volts Output Power 5.5E+3 Kilowatts Voltage 220 Volts Model Name VFD 5.5KW 7.5HP Recommended Uses For Product CNC router, Spindle motor, Industrial machinery Frequency 400 Hz Electrical Output Waveform Pure Sine Wave Brand HKS Included Components Manual, VFD 7.0 "h x 10.0 "h x 6.0 "h. Weight: 6.3 lb Item Description ?Attention?External resistance is not supported, you can adjust the parameters to achieve the function of external resistor. If your motor is heavy duty, please choose a higher power VFD. ? (Delta) connection is recommended for this product. If you have complex needs, please do contact customer service before use to get accurate advice. Please attach pictures of the load equipment parameters ( e.g. nameplate of the motor). ?Product Parameters?Power: 5.5KW, input voltage: AC 220V(180-250V),output voltage 220V;input current 25A, output current 36A; input frequency 40-60HZ, output frequency: 0-400HZ; input phase: single-phase or three-phase, output phase: three-phase. ?Intuitive Display and Button?The display and keys of the product can let users get started quickly. After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. ?Various Protection?The product has overload protection, fuse protection, overvoltage protection (DC voltage 400), or low voltage protection (DC voltage 200), restart protection, stall protection, short circuit protection, and overheat protection. ?Good Noise Control?The product has the advantages of low noise and low electromagnetic interference, which are achieved by the excellent PMW control technology and component compatibility design. There is enough space for cooling between each component, and the product casing is designed with multiple holes, the above features can make this VFD have a longer service life. Product Description IMPORTANT NOTE This drive only works with 3-phase asynchronous motors. Please make sure your motor is a 3-phase asynchronous motor before purchasing. To protect the VFD, be sure to press the red button "Stop" and turn off the power when you stop using it.When the VFD is working, the inside of the heat sink may reach about 176? (80?), please pay attention to the protection measures! The motor ( or other loads ) and the VFD can only be connected by wire without anything between ?eg. No switch can be installed between them).If you want to use the switch to control the load, please refer to the following method to connect the terminals. The two ends of the switch are connected to FWD and GND, turn on the switch, the motor is turning positive, turn off the switch, the motor stops working.The two ends of the switch are connected to REV and GND, turn on the switch, the motor reverses, turn off the switch the motor stops working.Select the function you want to achieve to connect the switch. Panel Operation Instructions Advanced Features Independent control panel and detachable for remote control. Parameters can be set to achieve the braking function. Support 5V or 10V PWM control frequency. Single/Three-phase: We offer single-phase 220V and three-phase 220V inputs. When used for single-phase, the other phase can be used as a spare line. Use the parameter setting to achieve the effect similar to the external resistor. A high capacitance with low output torque 0.5HZ-150% and low speed operation. Superior anti-interference performance. Simple operating guide?motor) Connecting load devices (eg.motor) If the input power is single-phase 220v, then connect to R and T. S is empty and does not need to be connected? If the input power is three phase 220v then connect to R, S and T?For 3KW power models, only L and N need to be connected and the other wire is empty. The three wires of the motor are connected to U,V,W, Motor junction box needs to be changed to ? wiring method (You can see the motor nameplate is generally marked delta for three-phase 220v, Y for three-phase 380v, if you do not understand the motor name plate to take photos to us). Set The Initial Test Parameters: pn32=6, pn02=rated frequency of the motor, pn03=2, pn04=1?pn10=rated frequency of the motor?pn12=rated frequency of the motor After setting as above, press the RUN button to start and STOP button to stop, FWD/REV button to switch forward and reverse, and the panel up / down buttons to adjust the speed. Add to Cart Add to Cart Add to Cart Customer Reviews 3.9 out of 5 stars 104 3.9 out of 5 stars 104 3.9 out of 5 stars 104 Price $79.99$79.99 $94.99$94.99 $104.99$104.99 Power / Horsepower 0.75KW/1HP 1.5KW/2HP 2.2KW/3HP Suitable Motor ?0.75KW (1HP) ?1.5KW (2HP) ?2.2KW (3HP) Input Voltage AC 220V?180-250V) 1 or 3 Phase AC 220V?180-250V) 1 or 3 Phase AC 220V?180-250V) 1 or 3 Phase Input Current 3.5A 7.5A 10A Output Voltage 220V 3 Phase 220V 3 Phase 220V 3 Phase Output Current 5A 10A 15A Input Frequency 40-60HZ 40-60HZ 40-60HZ Output Frequency 0-400HZ 0-400HZ 0-400HZ Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 3.9 out of 5 stars 104 3.9 out of 5 stars 104 3.9 out of 5 stars 104 3.9 out of 5 stars 104 Price $149.99$149.99 $169.99$169.99 $209.99$209.99 $234.99$234.99 Power / Horsepower 3KW/4HP 4KW/5HP 5.5KW/7.5HP 7.5KW/10HP Suitable Motor ?3KW (4HP) ?3.7KW (5HP) ?5.5KW (7.5HP) ?7.5KW (10HP) Input Voltage AC 220V?180-250V) 1 or 3 Phase AC 220V?180-250V) 1 or 3 Phase AC 220V?180-250V) 1 or 3 Phase AC 220V?180-250V) 1 or 3 Phase Input Current 14A 18A 25A 35A Output Voltage 220V 3 Phase 220V 3 Phase 220V 3 Phase 220V 3 Phase Output Current 20A 26A 36A 50A Input Frequency 40-60HZ 40-60HZ 40-60HZ 40-60HZ Output Frequency 0-400HZ 0-400HZ 0-400HZ 0-400HZ Cooling Fan With fan cooling and efficient heat dissipation capability, it makes sure the internal temperature of VFD is suitable for long and consistent operation. Excellent Material The drive board is cleaned and spray painted. A high torque, high precision, fully adjustable speed drive with unique control method enables it to adapt to harsh grid, temperature, humidity and dust interference capability.(Protection class IP30) Widely Applications Used in mechanical winders, mixers, extruders, slitters, winders, compressors, ventilators, pumps, grinders, elevators, and other speed control machines. Return Policy ? We guarantee against any defective or misrepresented products. The original shipping label must be sent back to us to validate the return. A full refund can only be issued during the first 30 days upon receipt of the product. ? Returns will be voided if the product is mishandled or physical damaged by customer. ? Buyer will be responsible for all kind of return shipping/shipment to the seller for resolving the problem. ? Returns made for all non-defective, undamaged products are subject to a 15% restocking fee. Shipping and handling fees are absolutely non-refundable. If an item is returned to us due to an address issue, we do charge a reshipping fee to reship. If you would like a refund, there will be a 15% restocking fee applied. ? All returned products need to be assigned an RMA # (Return Merchandise Authorization #) prior to return. Please contact us through's messaging system to obtain an RMA# for the return. Any returned product without an RMA # on package will not be accepted or processed. ? Please contact us before returning. Feedback ? We appreciate your feedback and our system will automatically leave feedback for you after bid ends. ? Please contact us through message center if you have any problems, we will always try our best for 100% customer satisfaction. Payment Options Shop With Confidence
