2Pcs V23061-A1004-A402 Siemens Miniature and 50 similar items

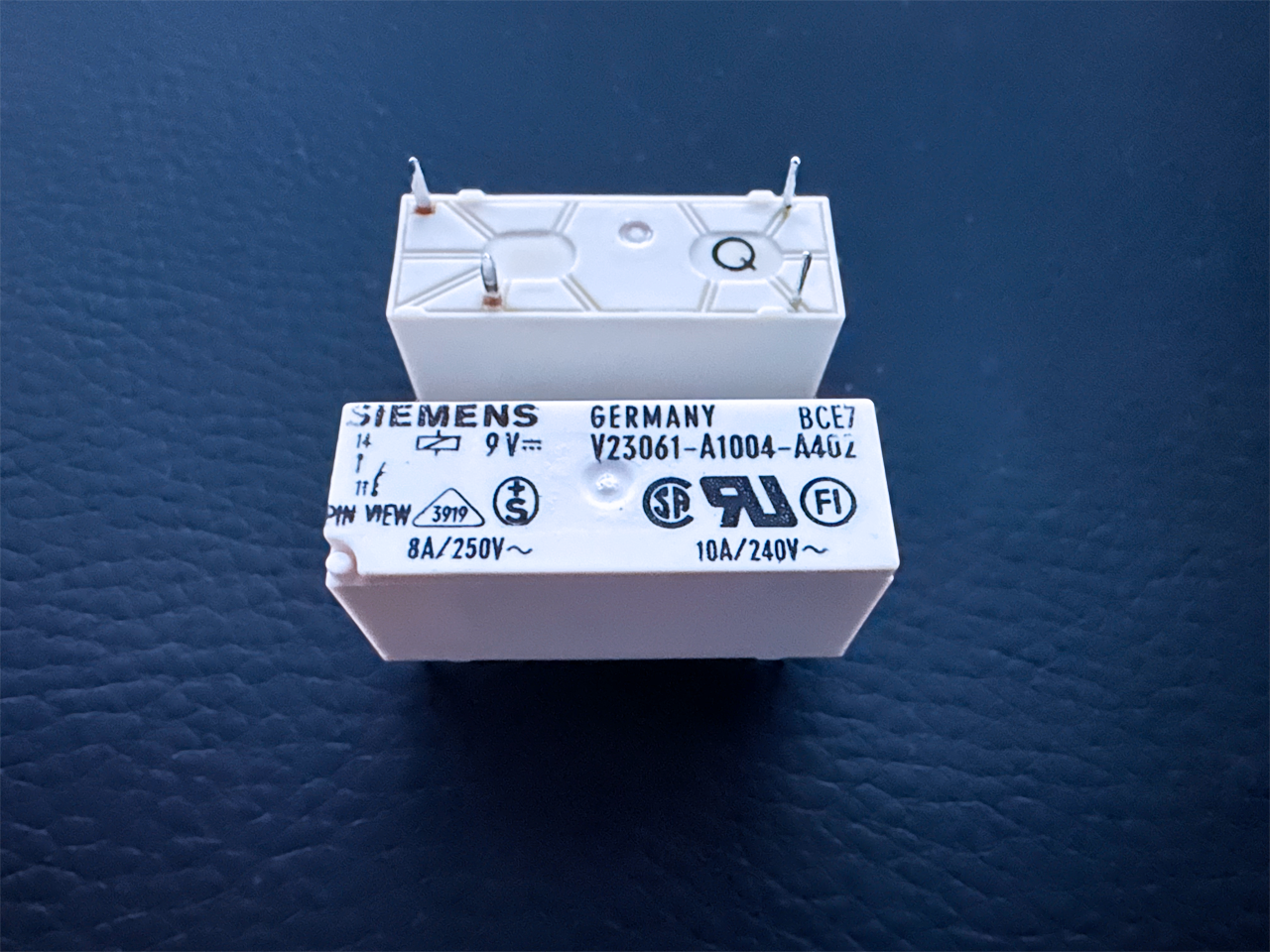

Store Seller Profile Feedbacks Contact Relays Timers General Purpose Relays DC Coil Power Relays close V23061-A1004-A402 SIEMENS Miniature Power Signal Relay 9VDC SPST-NO 10A Monostable Ready to Ship Ask a Question 30-Day Return Description Disclaimer Specifications Shipping Return Policy V23061-A1004-A402 SIEMENS Miniature Power Signal Relay 9VDC SPST-NO 10A Monostable Sofitrek Product Disclaimer Nature of Goods: All products offered by Sofitrek are surplus items. These products may originate from older batches, series, or have earlier date codes compared to those currently provided by the original manufacturers or their authorized dealers. Non-Affiliation: Sofitrek operates independently and is not an authorized distributor, nor is it affiliated or associated with the manufacturers of the products sold. Consequently, Sofitrek does not represent the manufacturers of these products in any capacity. Exclusion of Manufacturer's Warranty: Since Sofitrek is not an authorized distributor, the original manufacturer's warranties are explicitly not applicable to the products sold. This includes any implied warranties of merchantability or fitness for a particular purpose. Firmware and Software: Some products may include pre-installed firmware or software. However, Sofitrek does not guarantee the presence, compatibility, or the revision level of such firmware or software as suitable for your specific application. Furthermore, Sofitrek expressly disclaims any representation regarding your right or ability to download, obtain, or install any firmware or software for the products from any source, including the original manufacturers or their distributors. Limitation of Liability: Sofitrek shall not be held liable for any form of damages?direct, indirect, incidental, consequential, or otherwise?arising from the use, misuse, or inability to use any product sold. This includes, but is not limited to, damages for loss of profits, goodwill, use, data, or other intangible losses. The buyer assumes all responsibility for the safe and lawful use of the product and agrees to indemnify and hold harmless Sofitrek against any claims, liabilities, or expenses related to the product's use. Compliance and Responsibility: The buyer is solely responsible for adhering to all terms of any End-User License Agreement or similar documentation related to the products, particularly concerning the obtaining, installation, and use of firmware or software. By purchasing from Sofitrek, the buyer acknowledges having read, understood, and agreed to this disclaimer in its entirety. Specification Model V23061-A1004-A402 Manufacturer SIEMENS Type Miniature Power Signal Relay Coil Voltage 9VDC Configuration SPST-NO Current Rating 10A Contact Arrangement 1 make contact Contact Material AgCdO Coil Type Monostable Operate Time 6ms Release Time 2.5ms / 10ms Bounce Time 0.5ms / 4ms Max. Switching Rate Without Load 1200 min? Max. Switching Rate With Rated Load 30 min? Ambient Temperature Range -40C ... 70C Thermal Resistance 75 K/W Coil Temp. Rise Due to Rated Contact Current Approx. 7 K Max. Permissible Coil Temperature 115C Protection Class Immersion cleanable IP 67, Suitable for soldering lines IP 50 Electrical Endurance (AgCdO, Make, 230V~) 1 x 10? operations Electrical Endurance (AgCdO, Make, Motor Load 230V~) 4 x 10? operations Electrical Endurance (AgSnO2, Make, AC15 3A according to VDE 660/IEC 947, 230V~) 2 x 10? operations Electrical Endurance (AgCdO, Make, Valve Load 0.1A, 230V~) 1 x 10? operations Electrical Endurance (AgNi 0,15, Make, Hydraulic Valves 2A, 24V~) 1 x 10? operations Electrical Endurance (AgSnO2, Make, Lamp Load 6A, 230V~) 1 x 10? operations Mechanical Endurance Approx. 1 x 10? operations Flammability According to UL 94 V-0 Solder Bath Temperature/Max. Duration 260C / 5s Mounting Position Any Processing Information Wherever possible, ultrasonic cleaning should not be used; if absolutely necessary, then only after consultation with the manufacturer. Weight 11g Insulation Resistance 1000M? (at 500VDC) Dielectric Strength (Contact-Coil) 4000V~rms Surge Voltage (Contact-Coil) 8000V Dielectric Strength (Open Contacts) 1000V~rms Clearance/Creepage Distances 8mm / 8mm Rated Insulation Voltage 250V Rated Impulse Withstand Voltage 2500V Pollution Degree 2 Overvoltage Category III Tracking Resistance of the Fundamental Frame CTI 250 Contact Resistance (initial value) ? 100 m?/1 A/24 V Max. Continuous Current at Max. Ambient Temperature 8A Inrush Current (Max. 4s at 10% Duty Cycle) 15A Max. Switching Voltage 440V~ / 300V? Max. Switching Capacity (AC Voltage) 2000 VA Max. Switching Capacity (DC Voltage) See load limit curve Recommended for Loads 500 mA, 12 V~/V? Nominal Voltage 9V Operate Voltage at 20C 6.1V Operating Voltage Range at 20C (Oper. Voltage) 6.4V Operating Voltage Range at 20C (Max. Voltage) 22V Coil Resistance (?) 365 37 Shipping Policy Our go-to options for small to medium items are USPS Ground Advantage and USPS Priority Mail, known for their reliable tracking and peace of mind. Smaller items might qualify for USPS First Class Mail. Contact us to discuss this option before purchasing. Note: This method is less recommended due to the potential for delays. Return Policy We offer a 30-day return policy, no questions asked. If you choose to provide a reason for the return, it will assist us in improving and fix the issue. Packaging Our items are packaged according to their needs?some in ESD bags with pins secured in protective sponge, others in foam-enclosed boxes. For larger quantities, options include broken tubes for transistors or cartons. We welcome your suggestions for packaging preferences. Links Shop Feedbacks Contact Us Sofitrek
