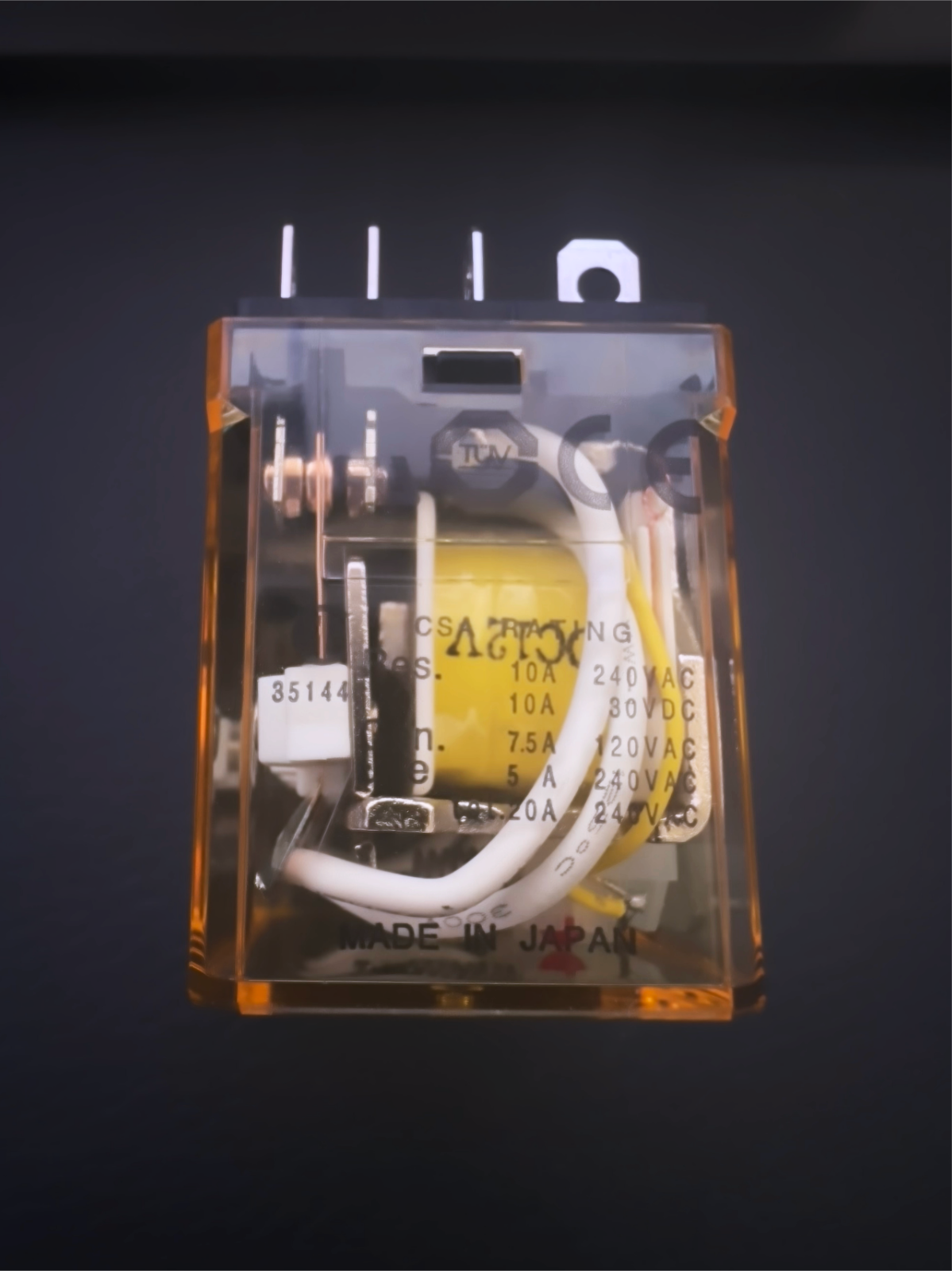

RH4B-ULDC12V Idec Plug-in Power Relay 12VDC and 50 similar items

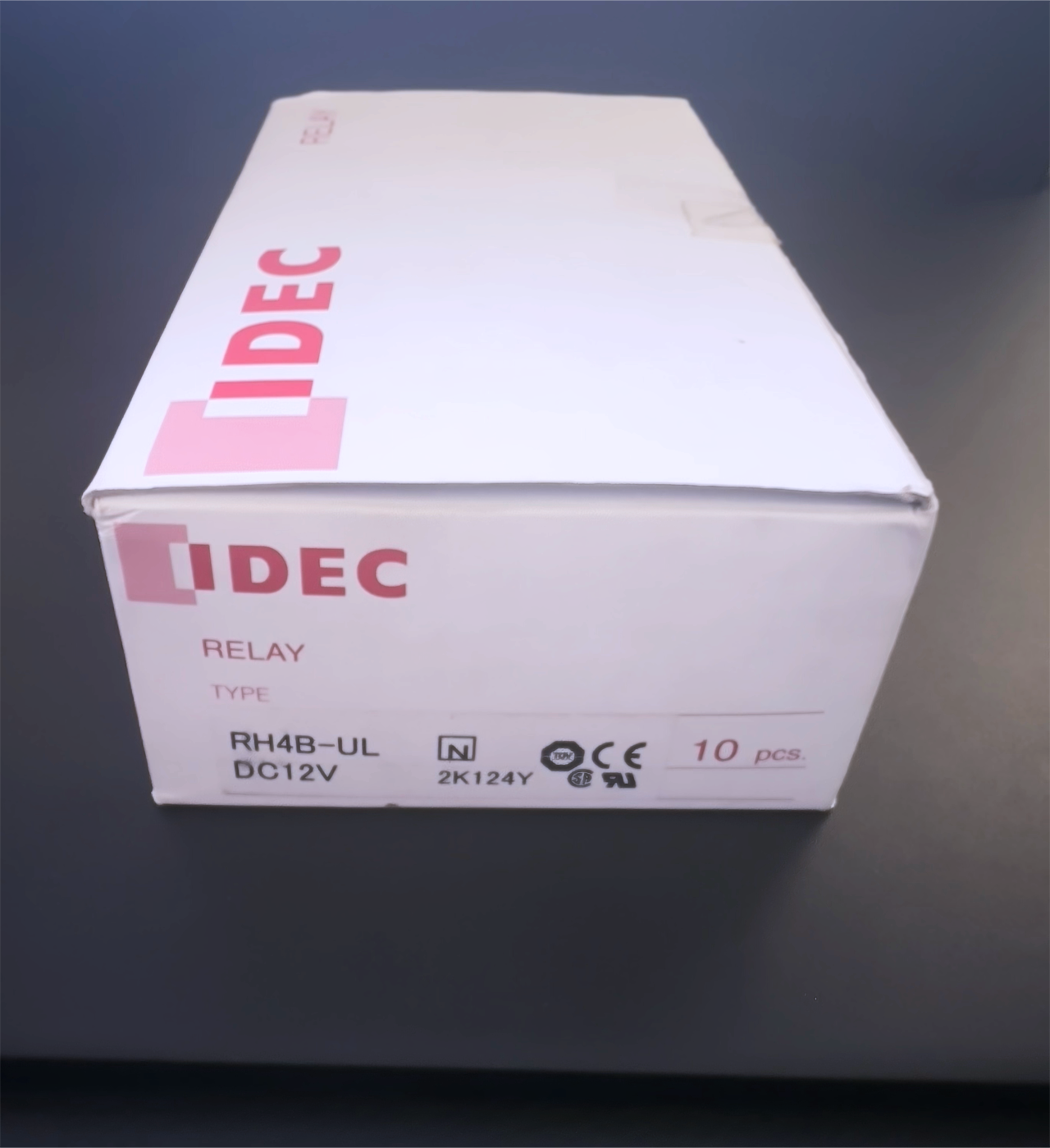

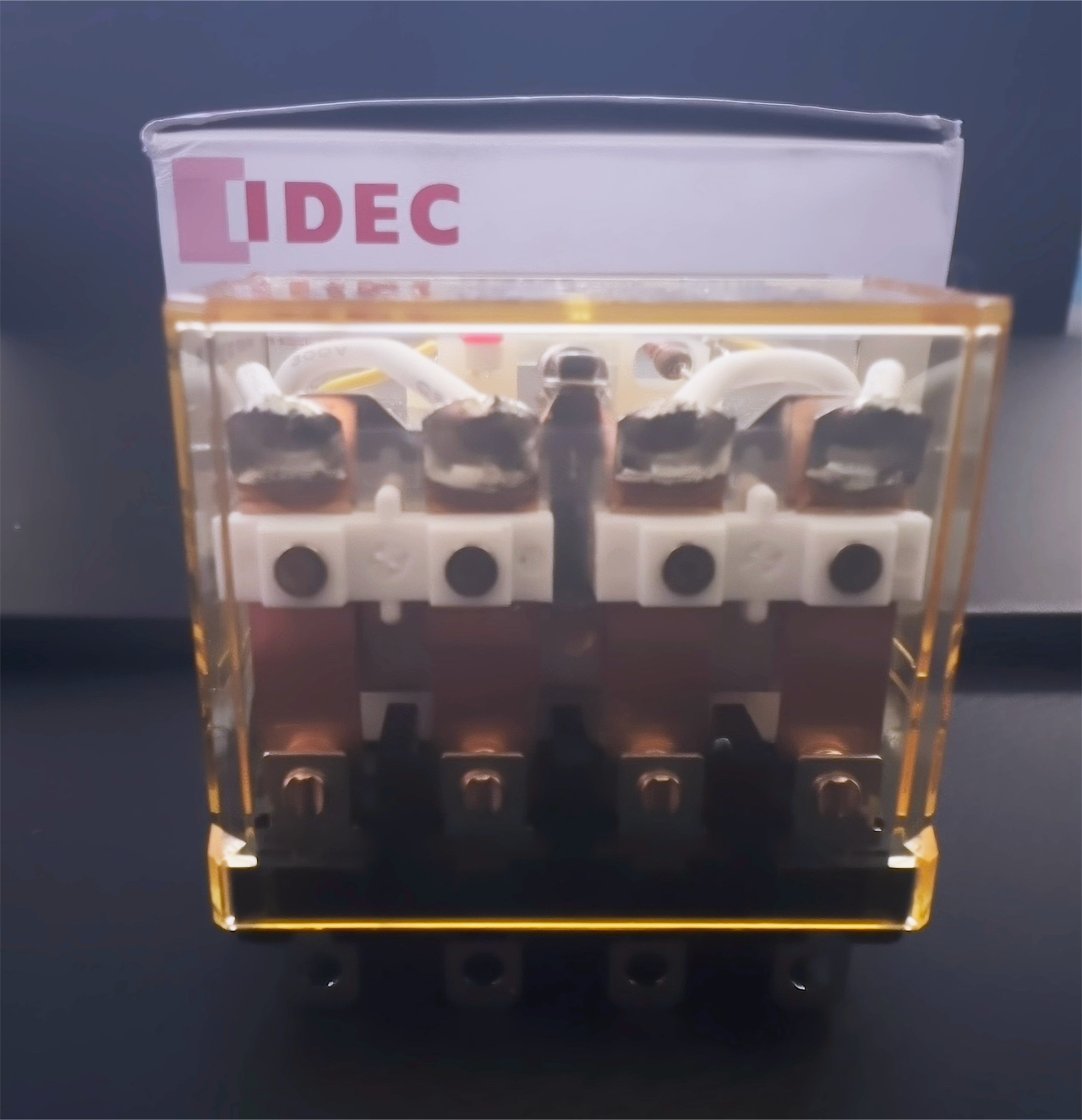

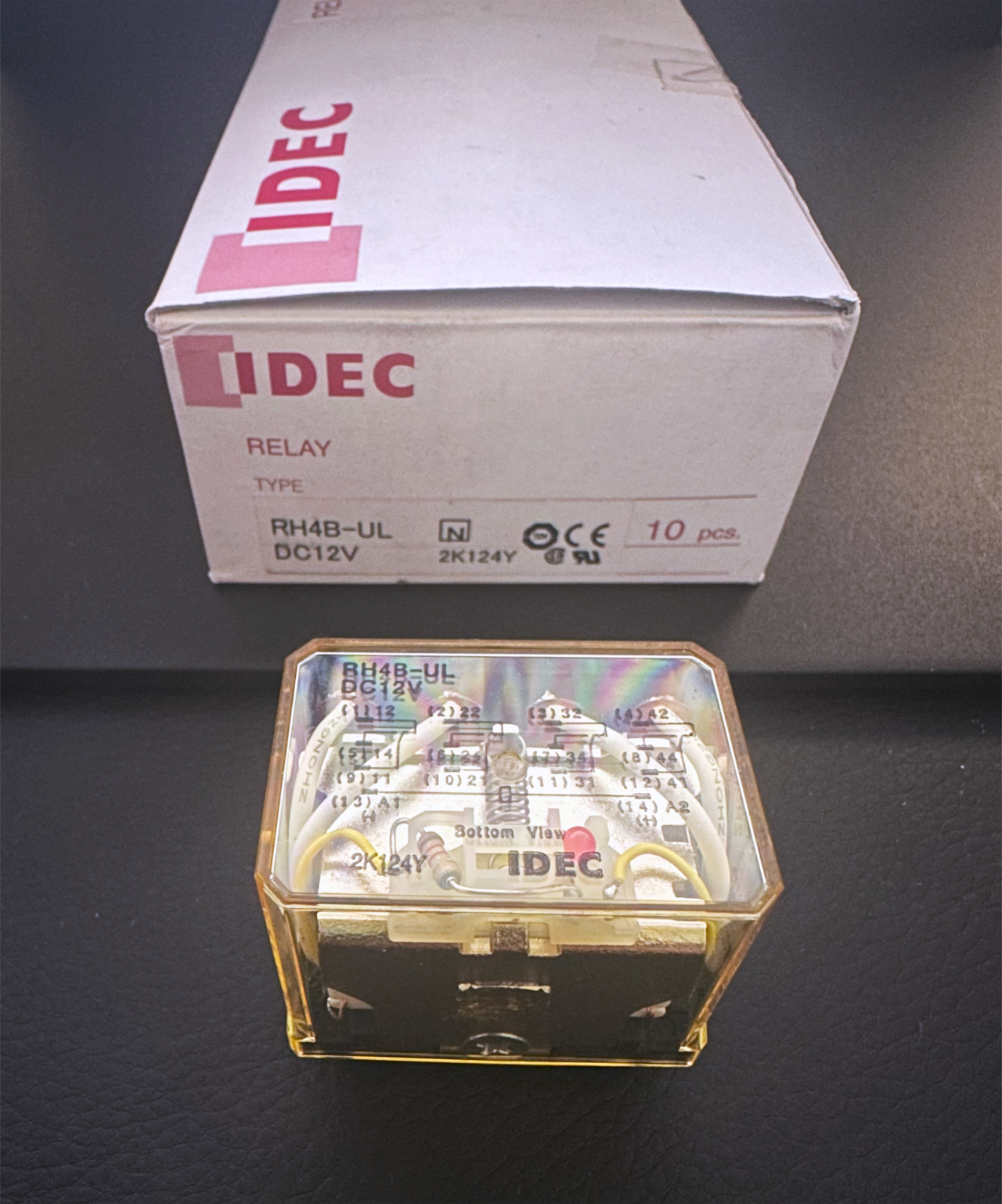

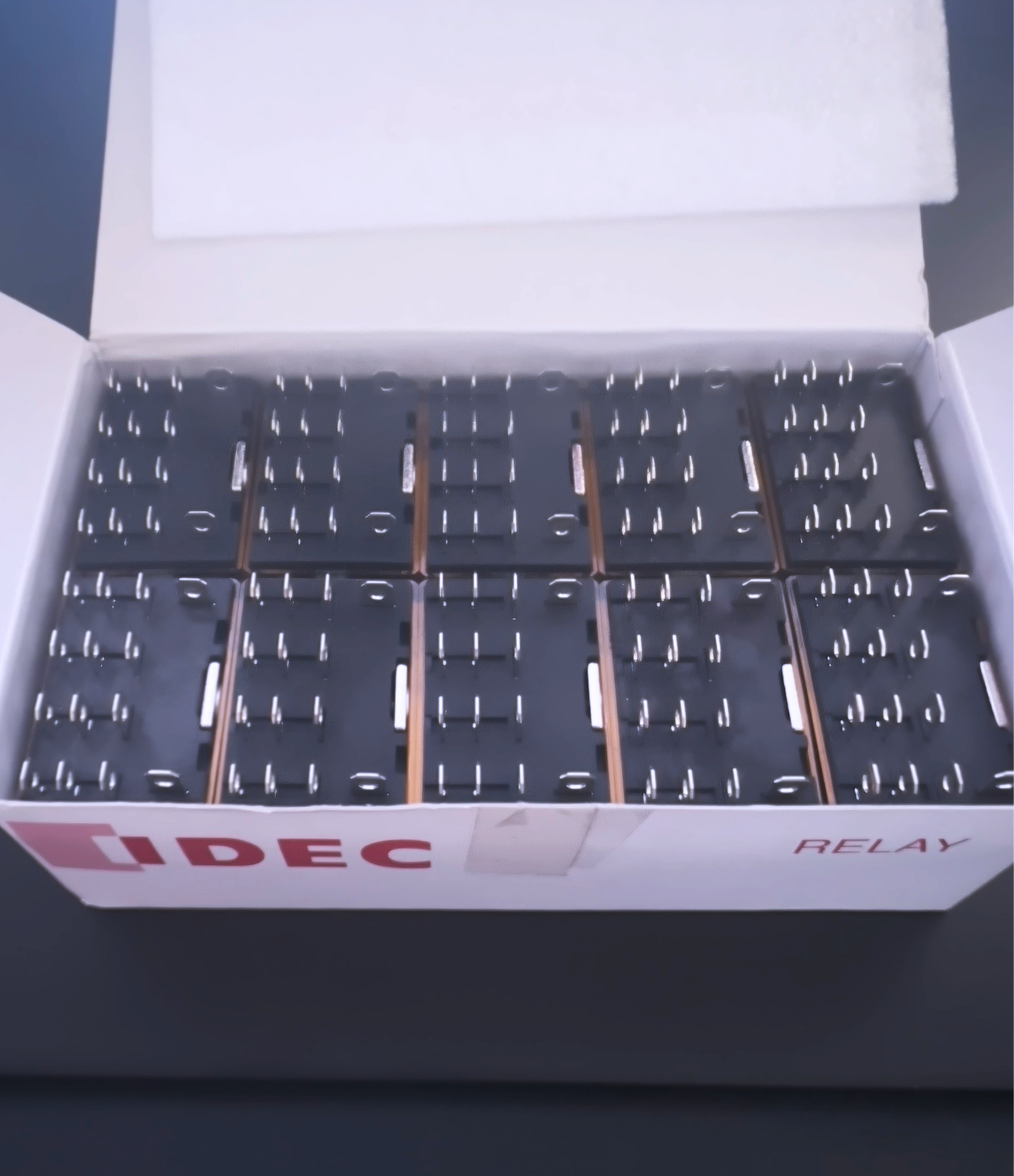

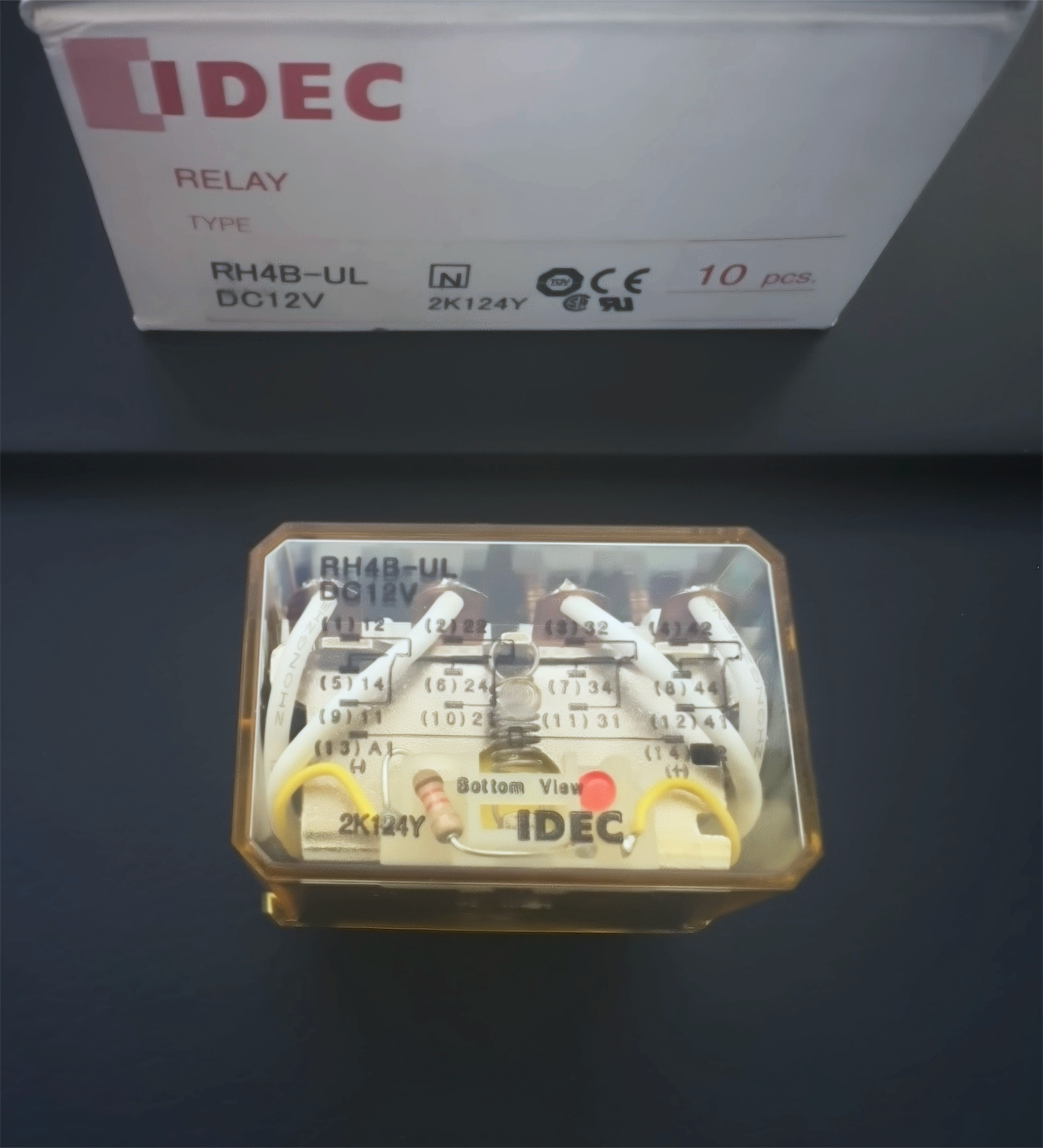

Store Seller Profile Feedbacks Contact Relays Timers General Purpose Relays DC Coil Power Relays close 1X RH4B-ULDC12V IDEC Plug-in Power Relay 12VDC 10A 4PDT Blade W/ LED Indicator Ready to Ship Ask a Question 30-Day Return Description Disclaimer Specifications Shipping Return Policy 1 Unit of RH4B-ULDC12V IDEC Plug-in Power Relay 12VDC 10A 4PDT Blade W/ LED Indicator Sofitrek Product Disclaimer Nature of Goods: All products offered by Sofitrek are surplus items. These products may originate from older batches, series, or have earlier date codes compared to those currently provided by the original manufacturers or their authorized dealers. Non-Affiliation: Sofitrek operates independently and is not an authorized distributor, nor is it affiliated or associated with the manufacturers of the products sold. Consequently, Sofitrek does not represent the manufacturers of these products in any capacity. Exclusion of Manufacturer's Warranty: Since Sofitrek is not an authorized distributor, the original manufacturer's warranties are explicitly not applicable to the products sold. This includes any implied warranties of merchantability or fitness for a particular purpose. Firmware and Software: Some products may include pre-installed firmware or software. However, Sofitrek does not guarantee the presence, compatibility, or the revision level of such firmware or software as suitable for your specific application. Furthermore, Sofitrek expressly disclaims any representation regarding your right or ability to download, obtain, or install any firmware or software for the products from any source, including the original manufacturers or their distributors. Limitation of Liability: Sofitrek shall not be held liable for any form of damages?direct, indirect, incidental, consequential, or otherwise?arising from the use, misuse, or inability to use any product sold. This includes, but is not limited to, damages for loss of profits, goodwill, use, data, or other intangible losses. The buyer assumes all responsibility for the safe and lawful use of the product and agrees to indemnify and hold harmless Sofitrek against any claims, liabilities, or expenses related to the product's use. Compliance and Responsibility: The buyer is solely responsible for adhering to all terms of any End-User License Agreement or similar documentation related to the products, particularly concerning the obtaining, installation, and use of firmware or software. By purchasing from Sofitrek, the buyer acknowledges having read, understood, and agreed to this disclaimer in its entirety. Specification Manufacturer IDEC CORP Contact Material Silver cadmium oxide Contact Resistance 50m? max Minimum Applicable Load 24V DC, 30 mA; 5V DC, 100 mA Operating Time 25ms max Release Time 25ms max Power Consumption (DC) 1.5W Insulation Resistance 100M? min (500V DC megger) Dielectric Strength (Live and Dead Parts) 2000V AC, 1 min Dielectric Strength (Contact and Coil) 2000V AC, 1 min Dielectric Strength (Diff. Poles) 2000V AC, 1 min Dielectric Strength (Same Pole) 1000V AC, 1 min Operating Frequency (Electrical) 1800 ops/h max Operating Frequency (Mechanical) 18000 ops/h max Vibration Resistance (Damage Limits) 10 to 55Hz, 0.5mm Vibration Resistance (Operating Extremes) 10 to 55Hz, 0.5mm Shock Resistance (Damage Limits) 1000m/s (100G) Shock Resistance (Operating Extremes) 200m/s (20G) Mechanical Life 50,000,000 ops min Electrical Life 200,000 ops min (120V AC, 10A) Operating Temperature -25 to +70C (no freezing) Operating Humidity 45 to 85% RH (no condensation) Weight 50g Maximum Contact Capacity 1100VA, 225W Continuous Current 10A Rated Load (30V DC) 10A Rated Load (220V AC) 7.5A Rated Load (110V AC) 10A Coil Voltage 12V DC Rated Current 37.5 mA Coil Resistance 96? Max. Continuous Applied Voltage 110% Pickup Voltage 80% max Dropout Voltage 10% min Contact Form 4PDT Model RH4B-UL Special Feature With Indicator Part Number RH4B-UL DC12V Shipping Policy Our go-to options for small to medium items are USPS Ground Advantage and USPS Priority Mail, known for their reliable tracking and peace of mind. Smaller items might qualify for USPS First Class Mail. Contact us to discuss this option before purchasing. Note: This method is less recommended due to the potential for delays. Return Policy We offer a 30-day return policy, no questions asked. If you choose to provide a reason for the return, it will assist us in improving and fix the issue. Packaging Our items are packaged according to their needs?some in ESD bags with pins secured in protective sponge, others in foam-enclosed boxes. For larger quantities, options include broken tubes for transistors or cartons. We welcome your suggestions for packaging preferences. Links Shop Feedbacks Contact Us Sofitrek
