300W/400W Wind Turbine Control Panel with and 50 similar items

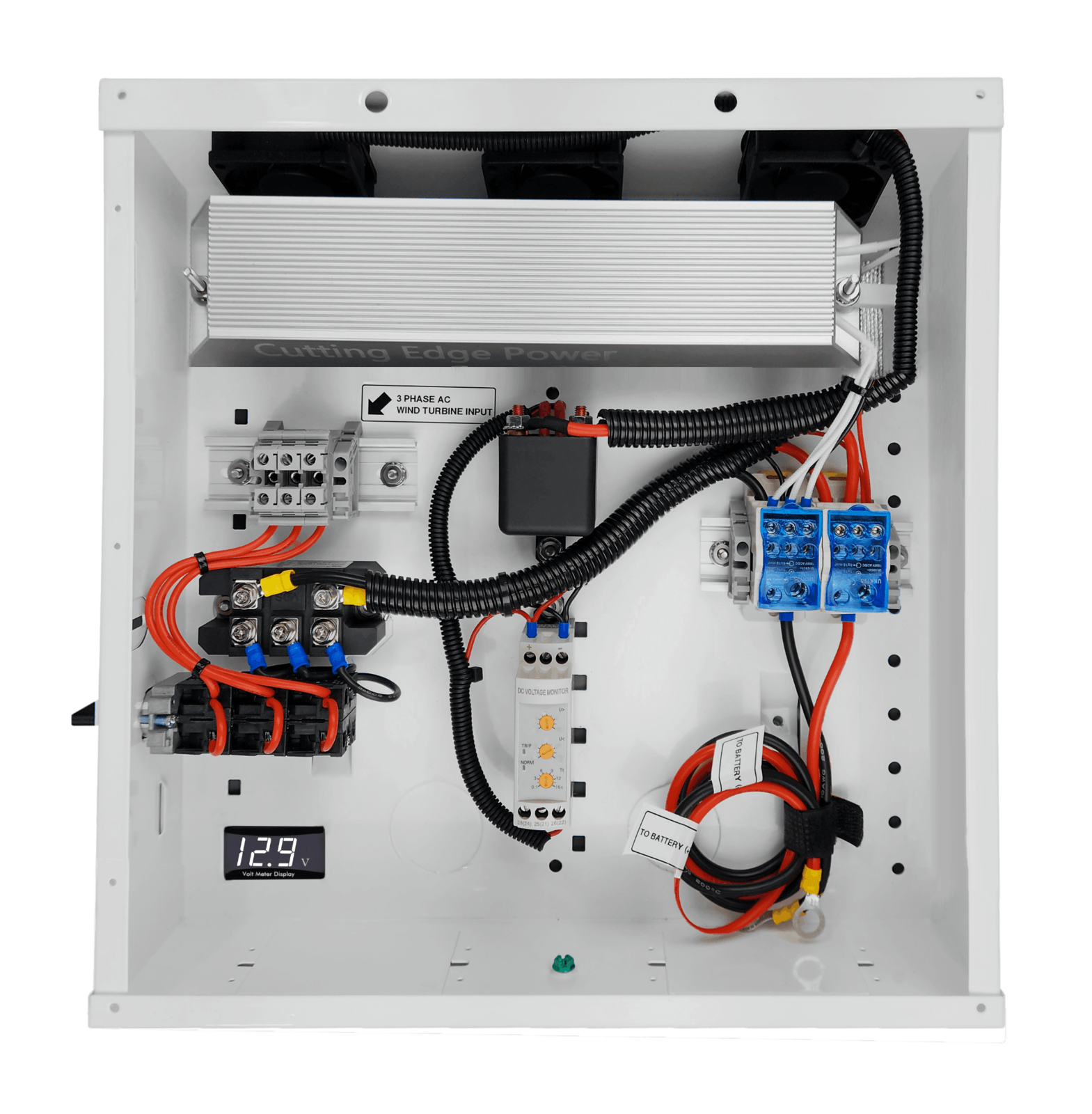

This panel is pre-wired and ready to go! Hook up your turbine and battery and absolutely no additional wiring is needed! Features: Totally pre-wired and ready to go: Connect battery and up to a 400W 3 phase AC wind turbine generator Includes panel cover plate, which allows the entire enclosure to be closed safely with no exposed wiring. Aluminum dump load resistor runs cooler and lasts longer than traditional ceramic resistors while still dissipating 400W. Automatic temperature controlled fans for cooling dump load resistor and solenoid relay. Includes panel cover plate, which allows the entire enclosure to be closed with no exposed wiring. Safe and easy to use. Wind turbine brake with 3 Phase AC input connectors ready to connect wind turbine. Rectifier converts 3 phase AC input to DC battery charging voltage. Extra space for mounting YOUR devices like timers, power meters, and other control equipment. DIN rail mounted components for easy customization. Completely assembled and quality checked in USA. Perfect for off-grid installations at home, industrial use, commercial use, etc. Specifications: Battery voltage: 12VDC Max battery quantity: none Minimum battery requirement: 1,200 Wh (100Ah) Max wind turbine power: 400W Wind turbine power input: 3 phase "wild" AC Solenoid rating: 200A max Default settings (adjustable): Dump load resistors / solenoid engaged: 14.4V DC Charging resumed and resistors disengaged: 12.0V DC 16" tall x 11" wide x 4" deep Weight: 11 lbs Downloads
