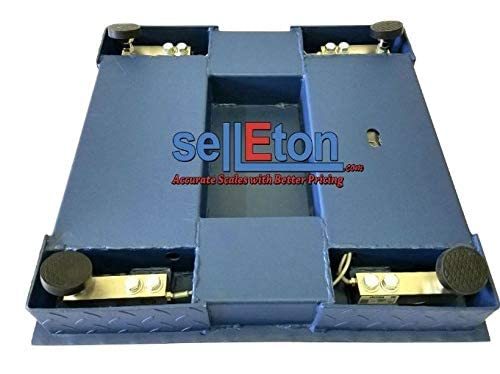

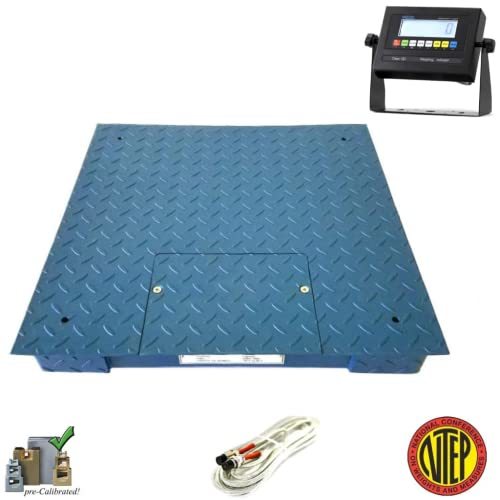

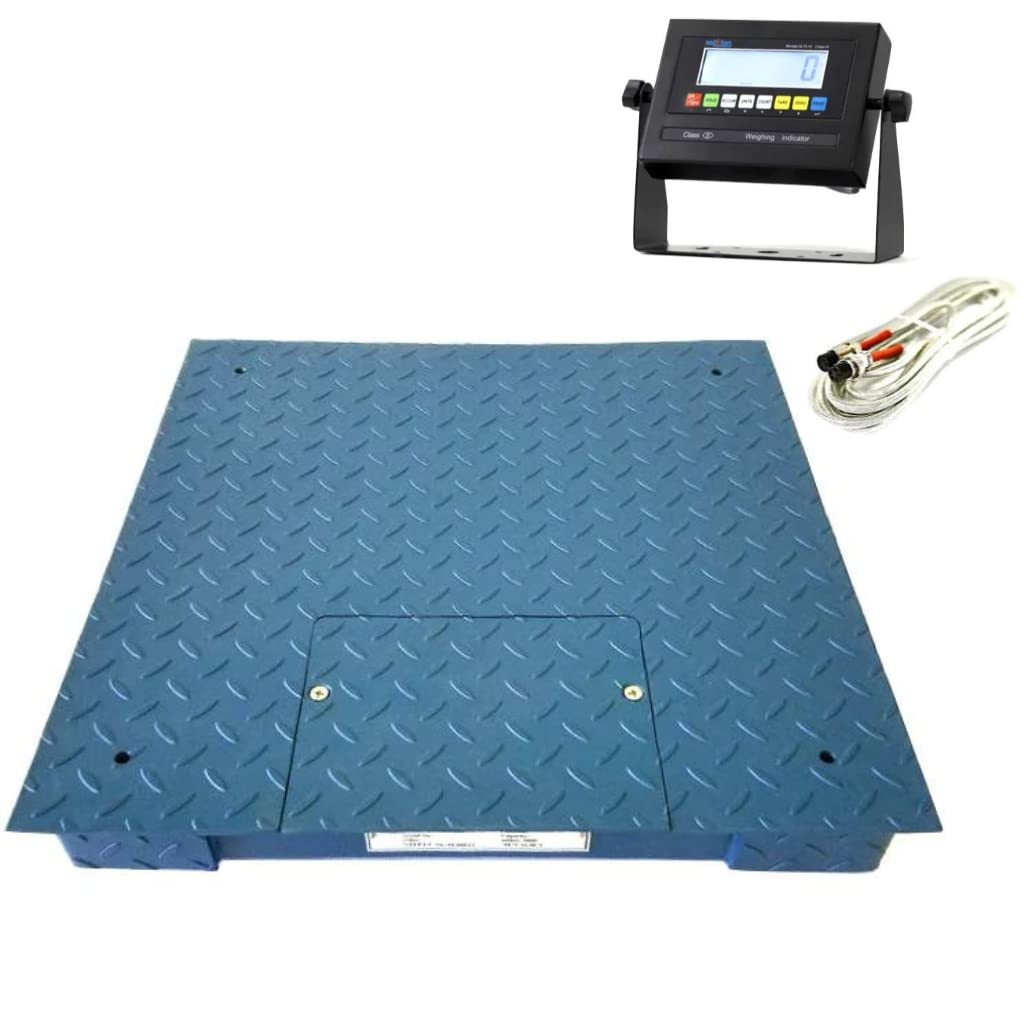

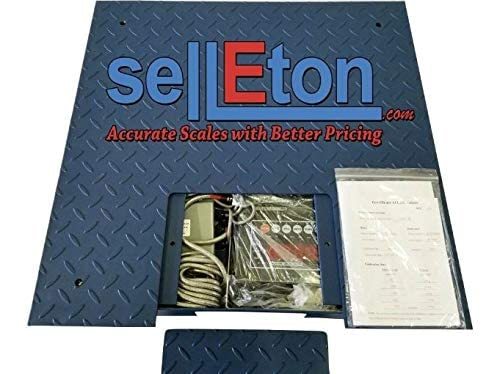

SellEton SL-800-2x2 NTEP 4-20 MA Analog Out and similar items

The 4-20 mA analog output of the SL-7510 scale is a voltage sourcing sensor that will output current which is proportional to the calibrated scale’s weight range (i.e. 4 mA = 0 LBS and 20 mA = 10,000 LBS). It is important to note, that this is a sourcing output sensor (i.e. the sensor will source 9VDC with an output current range of 4-20 mA). Unlike many other “loop powered” type 4-20 mA sensors, an external supply voltage should not be connected to the unit’s 4-20 mA circuit, however, the ground connection (pin 6) of the DB-9 connector will need to be connected to the same ground as the data acquisition device which will be responsible for interoperating the 4-20 mA signal. Please reference Figure 6 as a visual clarification on how to connect your scales 4-20 mA output to a data acquisition device. Below is a list of important notes when using the indicator with the 4-20 mA option ?Resolution: 1/1000 ?Outside Load: 100-350ohms ?Inside connection: load input port pin “1” of J2, ground port pin “GND” of J2 ?Outside connection: load input port pin 1 of DB9, ground port pin 6 of DB9 ?To test the connection, connect a 250 ohm load; Locate a voltmeter and probe across the 250 ohm load. As the weight input to the indicator varies, the voltage of the voltmeter will change accordingly ?Pressing the TARE key will reset to output current to 4mA ?0-20mA output can be set by setting parameter C31 to 0 ?Please note that this option will disable the RS232 weigh data output (serial ASCII data ) that comes in the standard indicator. Calibration: ?Press the PRINT and HOLD key to go into configuration mode ?Go to C32 and press the PRINT key ?The display should show [out-4] and output should be at 4mA ?Press the up/down arrow keys and the [out-#] will increase/decrease
