IEC AC Power Jack Chassis Mount with Switch and similar items

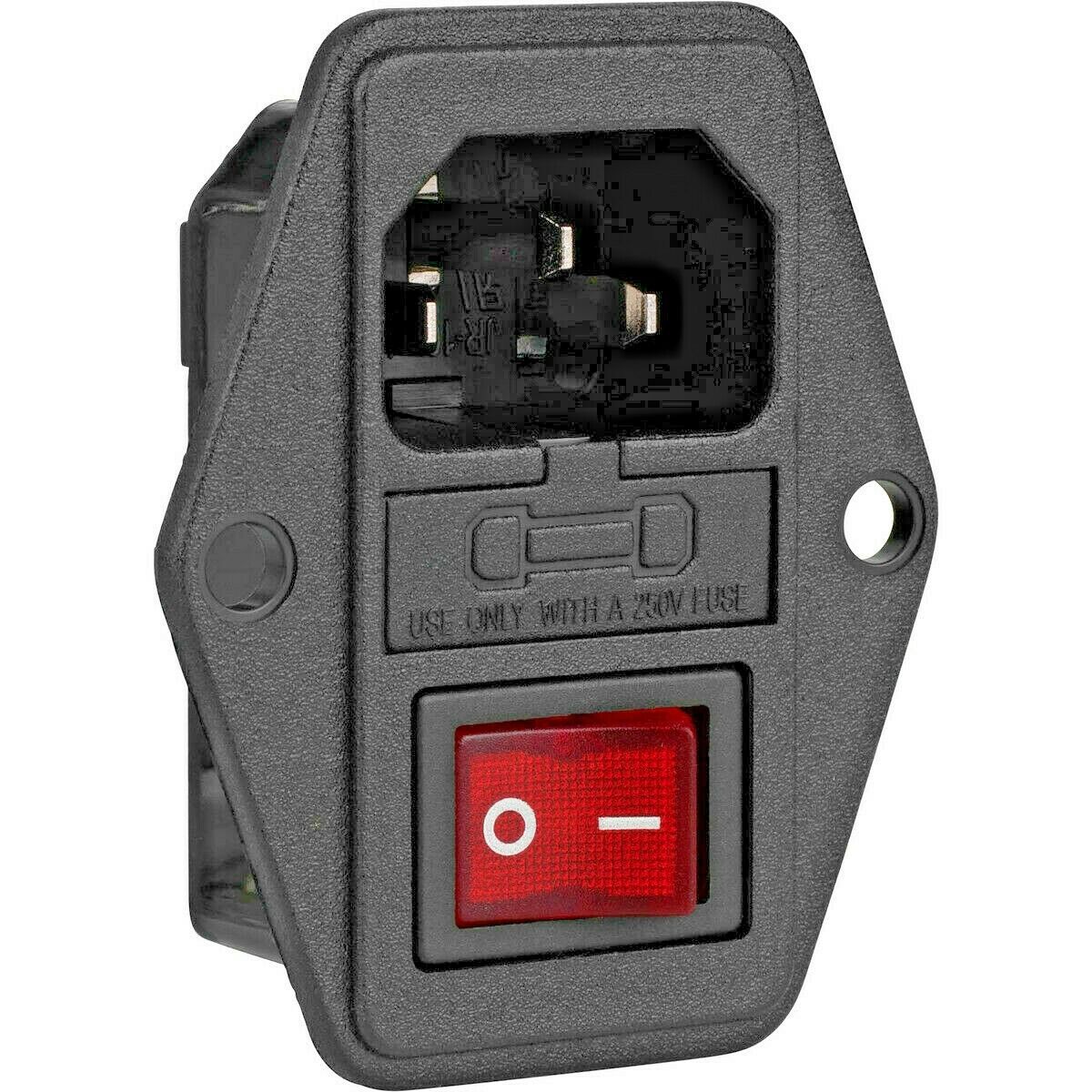

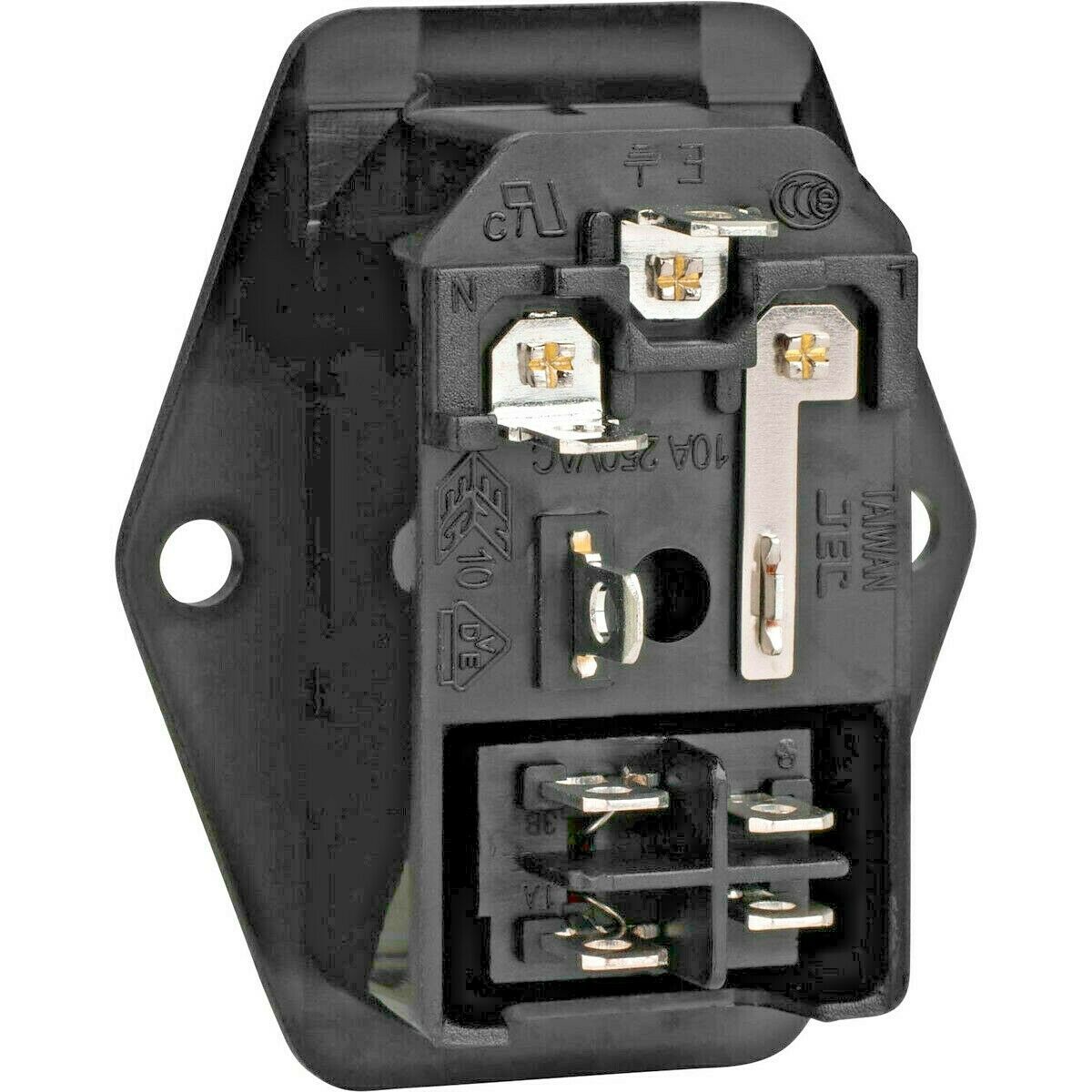

Brand NEW! Use this IEC AC illuminated switched power jack in your next DIY amplifier or powered speaker project. Built-in fuse holder protects the amp and is easy to change versus internal fuses. Key Features Fuse holder accepts up to 6.3A @ 250V, 5 x 20 mm fuse and has a convenient space for a spare one Lighted switch for easy on/off identification UL recognized for safety Eliminates an extra hole for a switch Fuse sold separately Cut a 48 x 28.5 mm hole and make two jumpers and this IEC illuminated switched AC socket is ready to power your next 120 VAC DIY project. Solder or use 0.187" (3/16") crimp connectors to hook up to each terminal for lighted switched power. Add up to a 6.3A 250V, 5 x 20 mm fuse to the IEC socket's fuse holder to protect your project. There's a space in the fuse holder for a spare fuse for a quick fix if needed. The correct fuse current is critical so a fuse is sold separately. Specifications: ? IEC socket power rating: 10A @ 250 VAC ? Max fuse holder rating: 6.3A @ 250VAC ? Terminals: 0.186" (4.74 mm) ? Mounting hole: 1.89" x 1.12" (48 x 28.5 mm) ? Screw holes: 0.173" (4.4 mm) spaced 1.575" (40 mm) apart to center ? Total dimensions: 1.92" W x 2.29" H x 1.18" D (49 x 58 x 29.5 mm) including terminals without switch ? Outer mounting plate thickness: 0.9" (2.3 mm) ? Switch: Rocker DPST 10A at 125 VAC red lens with white light. - All international buyers are responsible for all tax, duties and/or customs fees.
