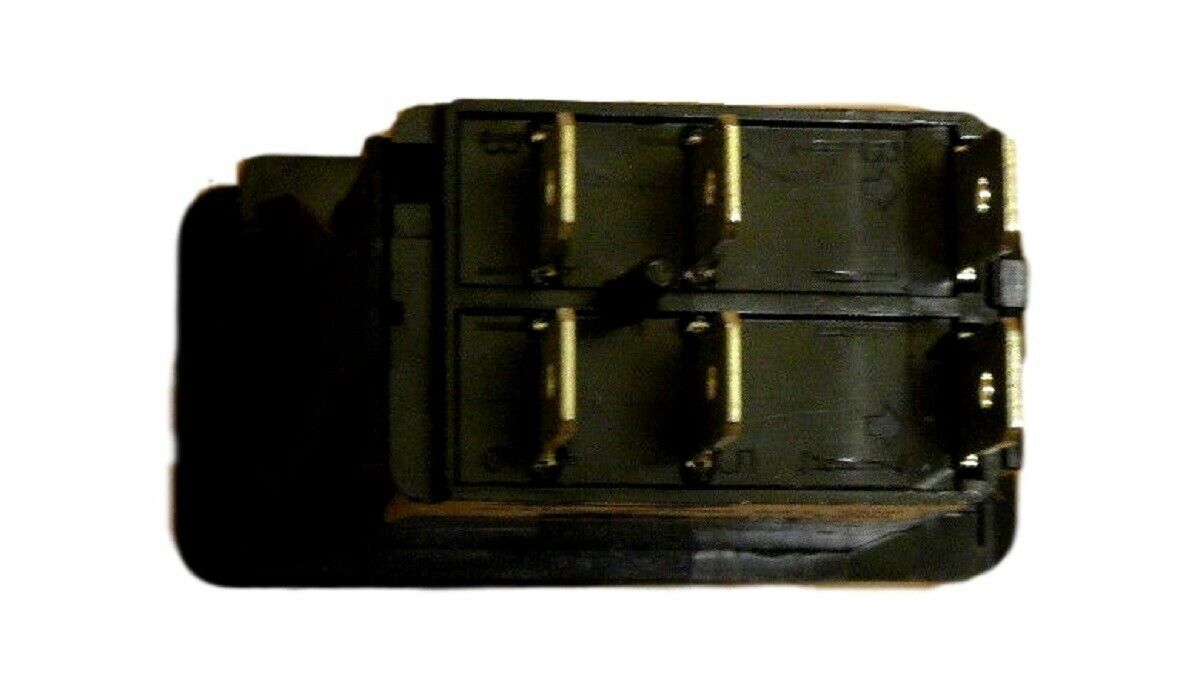

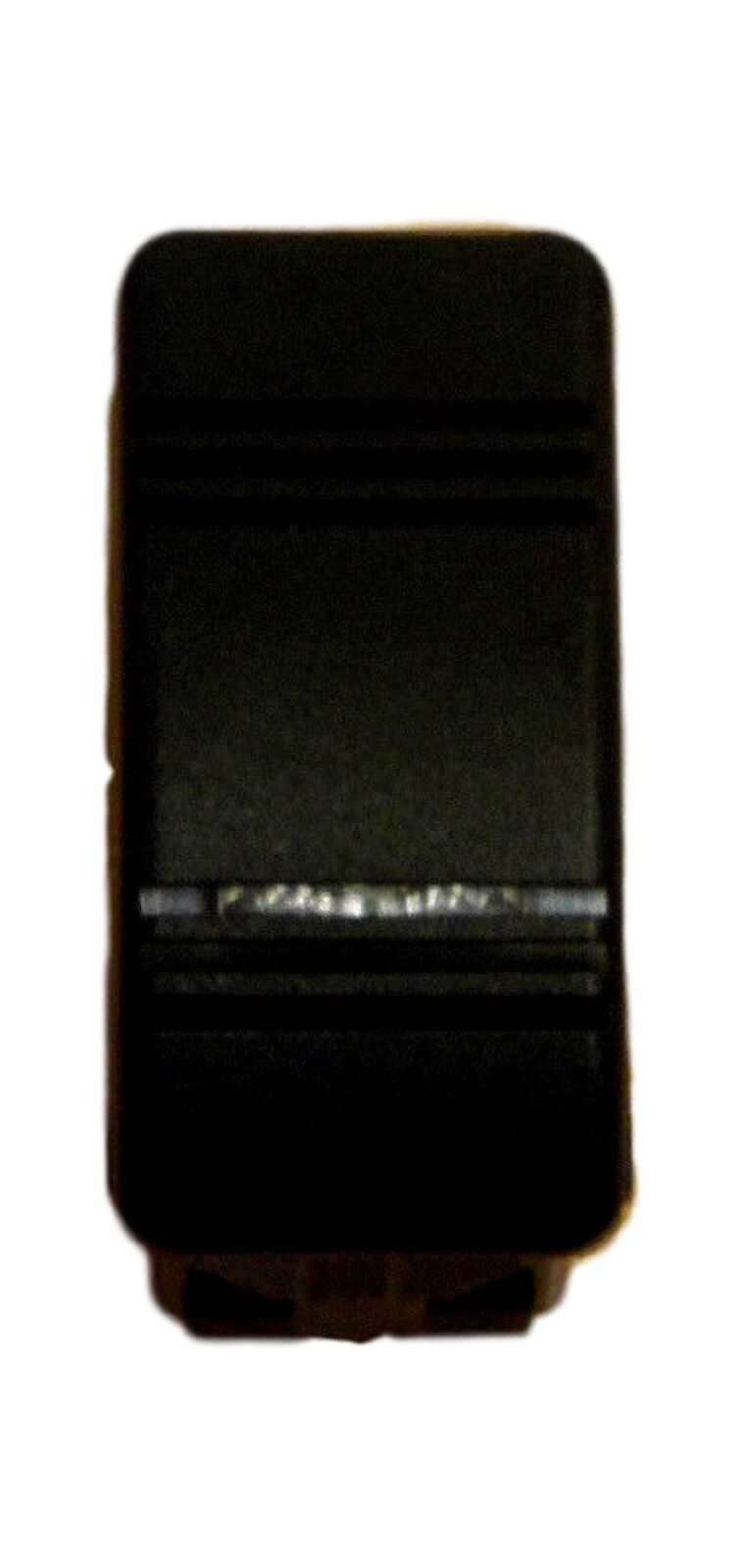

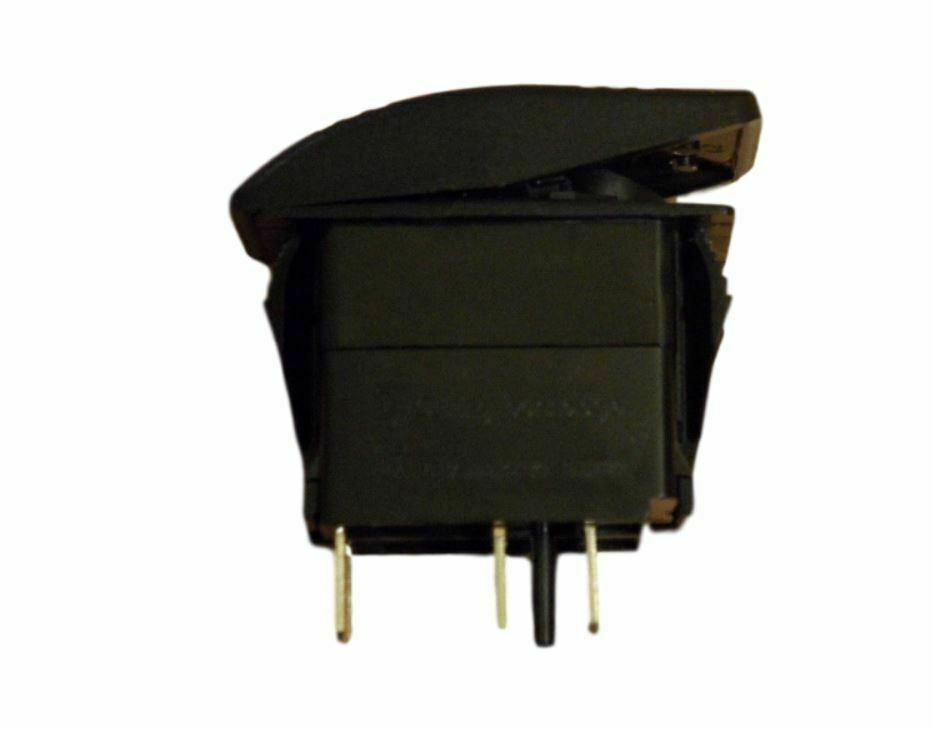

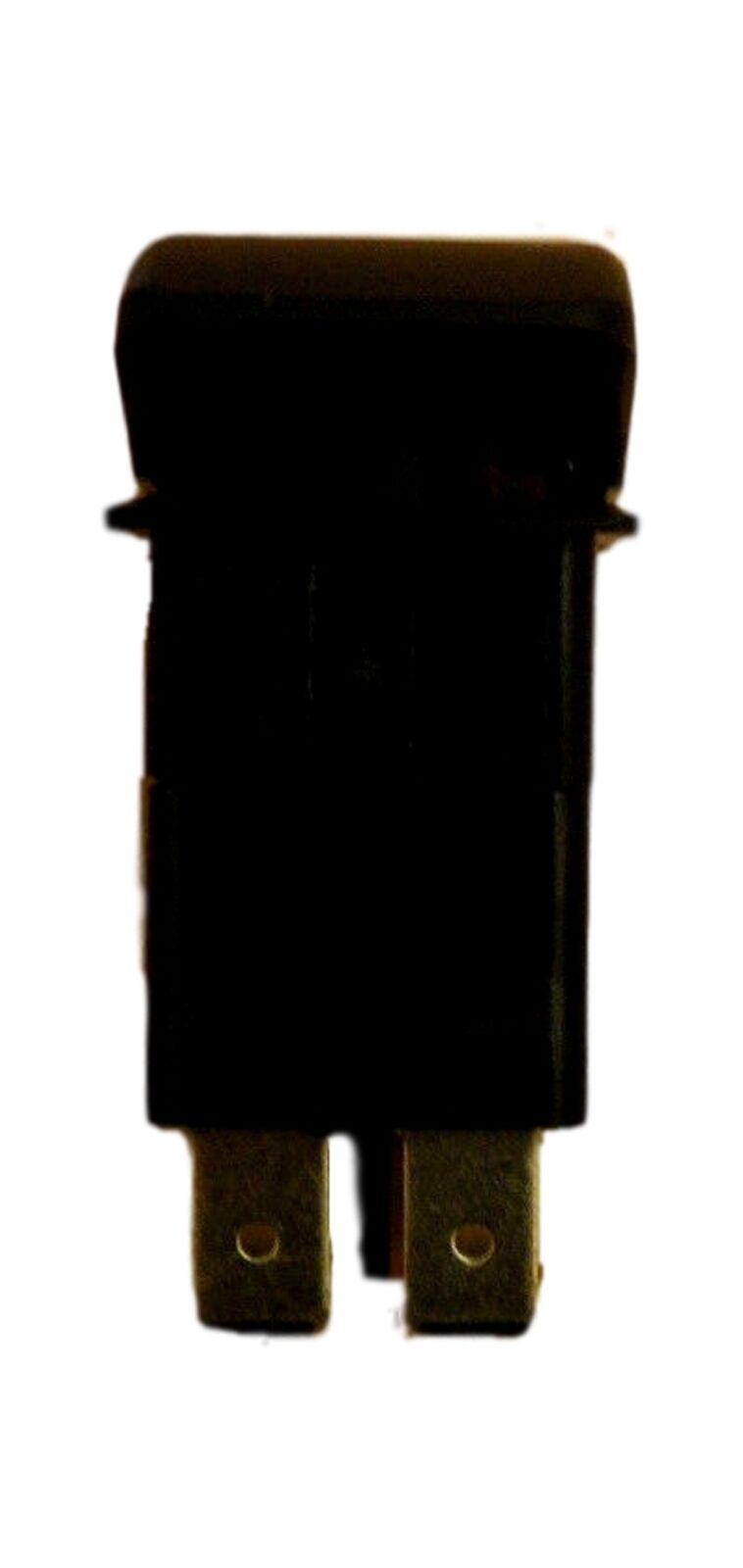

Carling Technologies III-Series Contura Sealed Rocker Switch VAD1AHOB-C1C00-000
SKU: BAY-0008405-BCE /WB
BRAND NEW - THE LOWEST PRICE YOU WILL HAVE EVER SEEN FOR THIS!!!
This V-Series switch is black in color and illuminated. It switches feature removable actuators The Contura III actuators are constructed of thermoplastic polycarbonate and incorporates three rows of bars on the top and bottom of the rocker.
Contact Rating
4VA@ 24VDC (MAX) resistive 15 amps, 125 VAC 10 amps, 250 VAC 1/2 HP 125-250 VAC 20 amps, 4-14 VDC 15 amps, 15-28 VDC 10A 14VT 6A 125 VAC L
Dielectric Strength . . . . . . 1500 Volts RMS
Insulation Resistance . . . 50 Megohms
Initial Contact Resistance. 10 milliohms max. @ 4 VDC
Life . . . . . . . . . . . . . . . . 50,000- 100,000 cycles circuit dependent
Contacts . . . . . . . . . . . . . Silver cad-oxide, silver tin-oxide, fine silver
Terminals . . . . . . . . . . . . Brass or copper/silver plate 1/4" (6.3mm) Quick Connect terminations standard. Solder lug, Wire Lead
Endurance . . . . . . . . . . . 150,000 cycles minimum
Lighted . . . . . . . . . . . . . . Incandescent - rated 10,000 hours
Neon - rated 25,000 hours
LED - rated 100,000 hours 1/2 life. (LED is internally ballasted for voltages to 24 VDC)
Seals . . . . . . . . . . . . . . . Internal
Base . . . . . . . . . . . . . . . Polyester blend rated to 125C with a UL flammability rating of 94 V-O.
Actuator . . . . . . . . . . . . . Hard Surface: Basic actuator structure molded of thermoplastic polycarbonate with a hard Nylon 66 thermoplastic surface overlay.
Soft Surface: Basic actuator structure molded of thermoplastic polycarbonate with an elastomer overlay.
