ABB S203UP-K6 - 3 Pole Miniature Circuit and 50 similar items

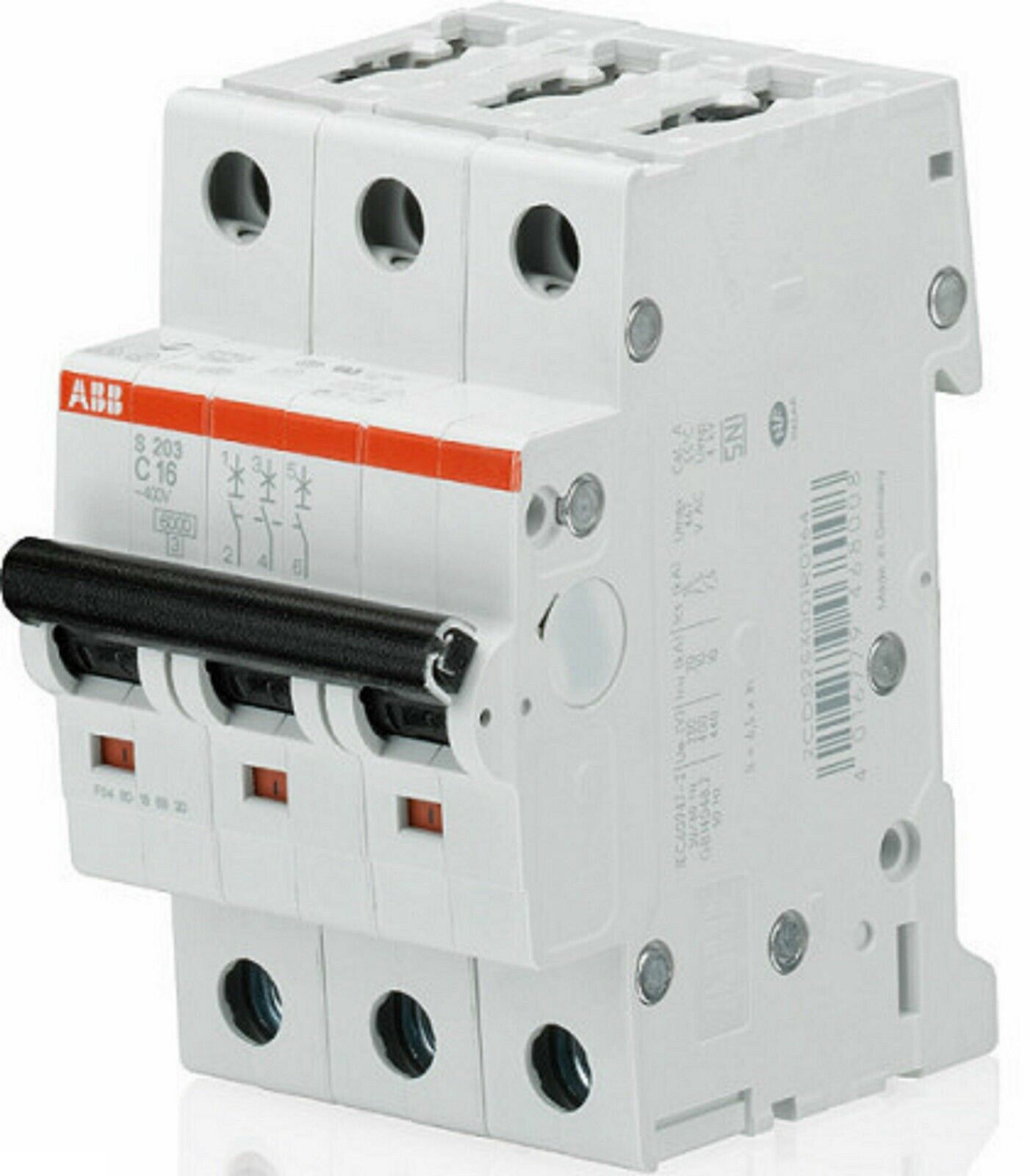

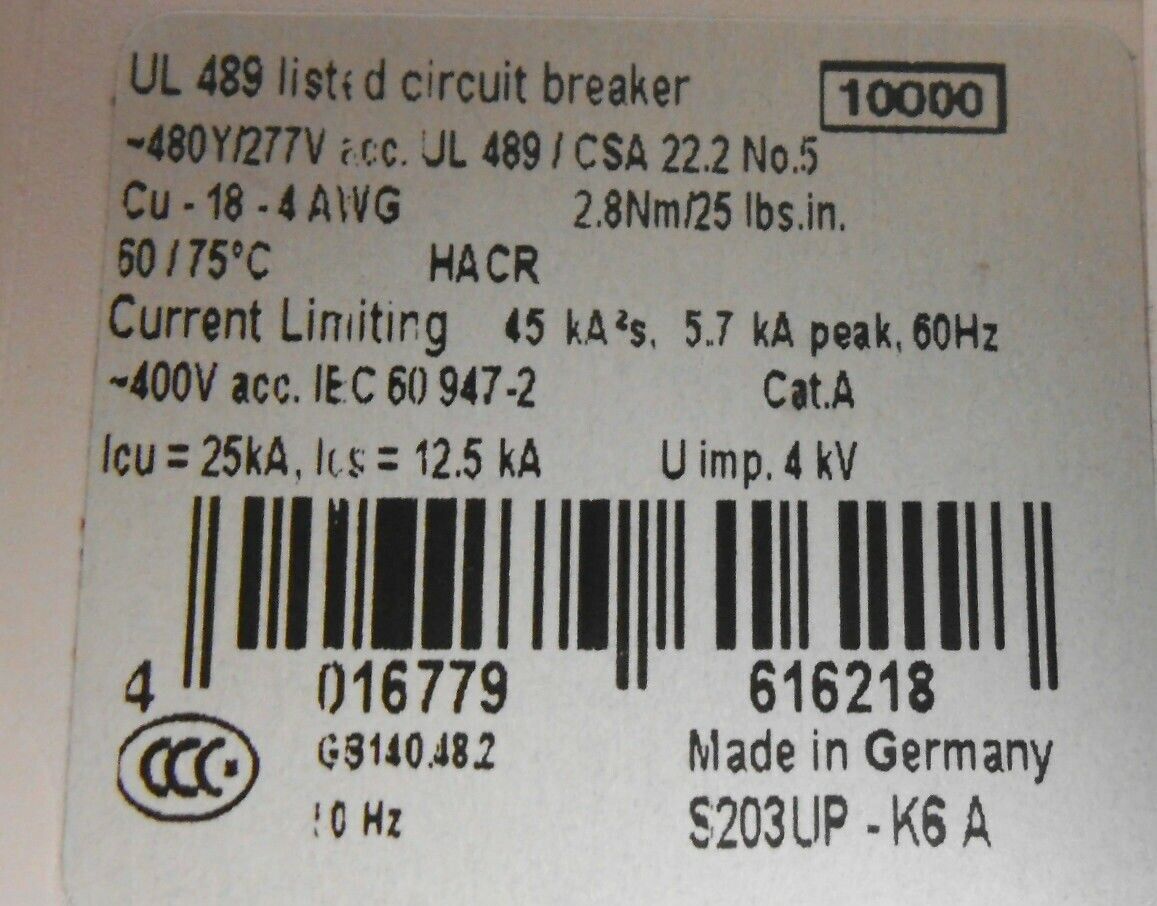

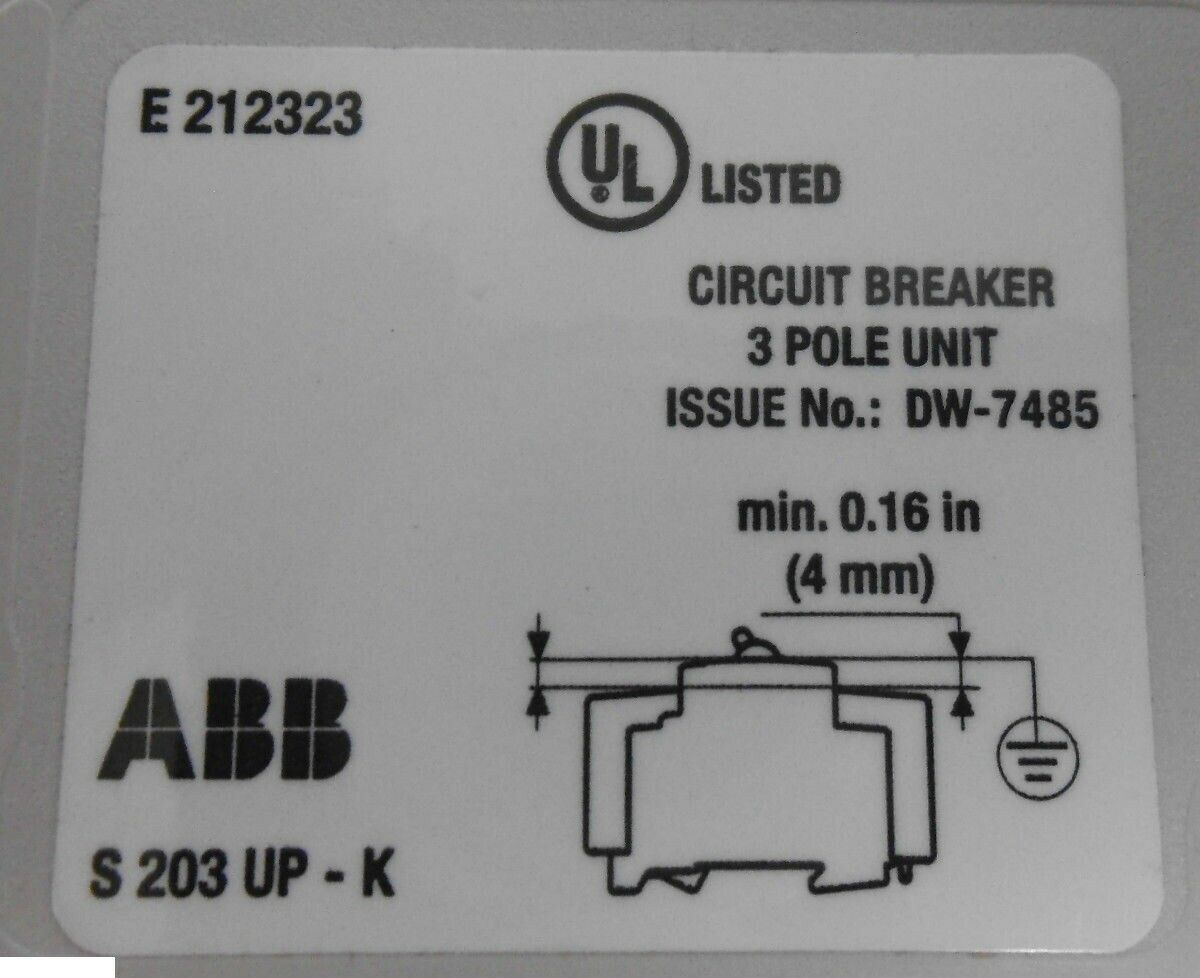

ABB S203UP-K6 - 3 Pole Miniature Circuit Breaker Unit sku CT BRAND NEW!!! FREE SHIPPING!!! This sale transaction is for a ABB 3 Pole Miniature Circuit Breaker Unit. FEATURES SPECS: System pro M compact S200UP miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (K,Z), configurations (1P,2P,3P,4P), breaking capacities (up to 10 kA) and rated currents (up to 25 A). All MCBs of the product range S200UP comply with IEC/EN 609 47-2, UL489 and CSA 22.2 No. 5, allowing the use for commercial and industrial applications. Number of Poles: 3 Tripping Characteristic: K Rated Current (In): 6.00 A Rated Operational Voltage (Ue): 400 V AC Rated Insulation Voltage (Ui): Phase to Ground 250 V AC Phase to Phase 500 V AC Operational Voltage: Maximum 440 V AC Minimum 12 V AC Rated Frequency (fr): 50 / 60 Hz Rated Short-Circuit Capacity ( Icn): 10.0 kA Rated Ultimate Short-Circuit Breaking Capacity (Icu): 10 kA Rated Service Short-Circuit Breaking Capacity (Ics): 7.5 kA Overvoltage Category: III Pollution Degree: 3 Rated Impulse Withstand Voltage (Uimp): 4 kV (6.2 kV @ sea level) (5.0 kV @ 2000 m) Dielectric Test Voltage: 50/60 Hz, 1 min.: 2 kV Housing Material: Insulation group I, RAL 7035 Actuator Type: Insulation group II, black, sealable Actuator Marking: I / O Contact Position Indication: ON / OFF Degree of Protection: IP20 Remarks: IP40 in enclosure with cover Electrical Endurance (Nelec): 20000 cycle Mechanical Endurance (Nendu): 20000 cycle Terminal Type: Screw Terminals Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal Connecting Capacity: Rigid 0.75...25 mm Stranded 0.75...25 mm Flexible 0.75...16 mm Flexible with Ferrule 0.75...16 mm Tightening Torques: 2.8 Nm Recommended Screw Driver: Pozidriv 2 Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TERMS OF SALE: If, after receiving this item you discover that it was not the one you wanted, simply return it for a full refund within 14 days. You will heave to pay for the return shipping charges. Refund is void if you have installed, used or damaged the item in any way. Item must be returned with its original box, packing materials and instructions. Payment via PayPal must be received within 3 days of transaction and prior to shipping. SHIPPING: Free shipping only apply to the U.S. 50 States. All other regions/international locations will be charged for shipping based upon location. Please use the shipping calculator or request a shipping quote. International buyers: Customs fees, duties, taxes, tariffs other fees are your responsibility. Arrival time will depend on your location. If you have any questions, feel free to ask. Thank you for visiting!
