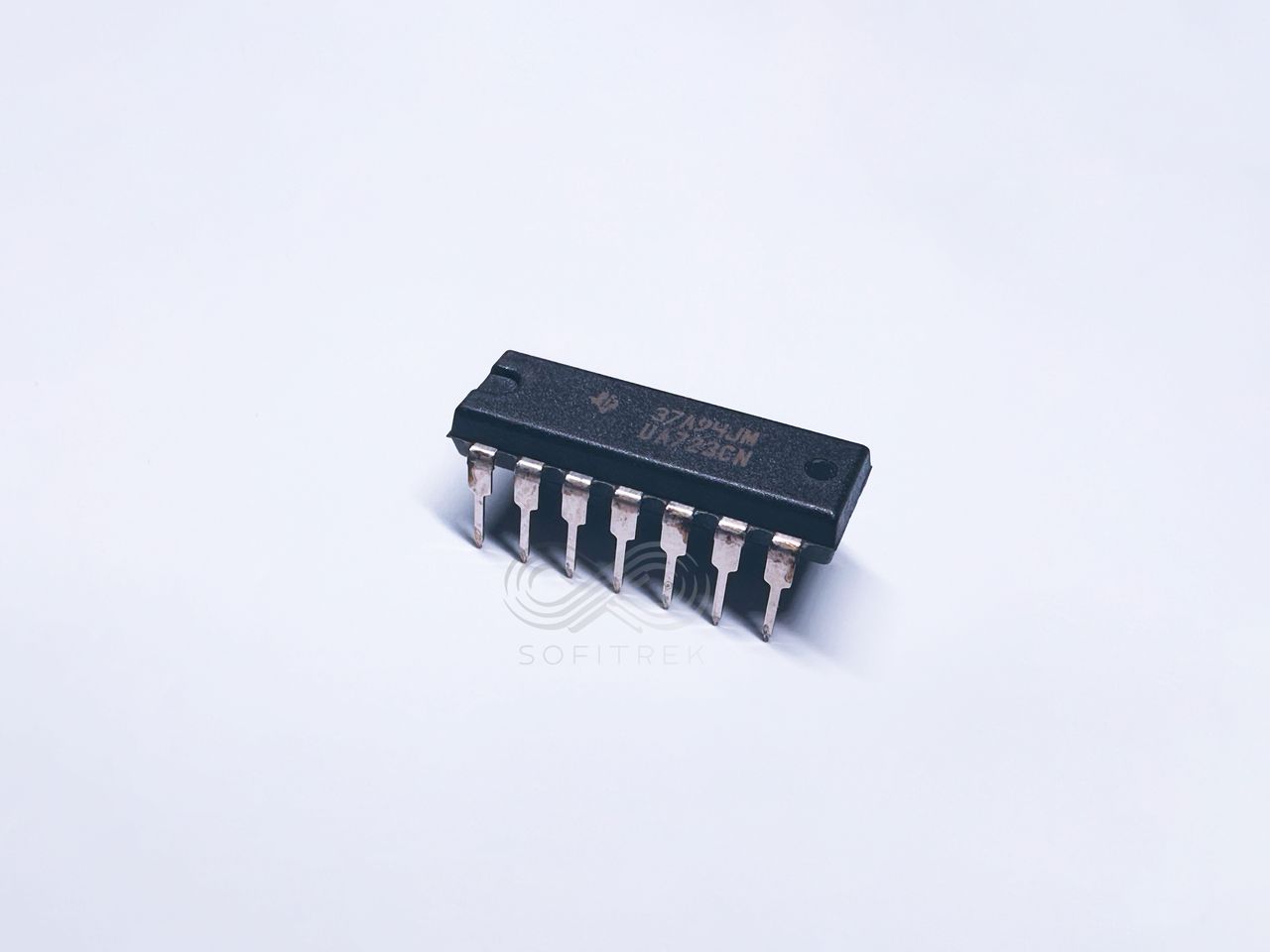

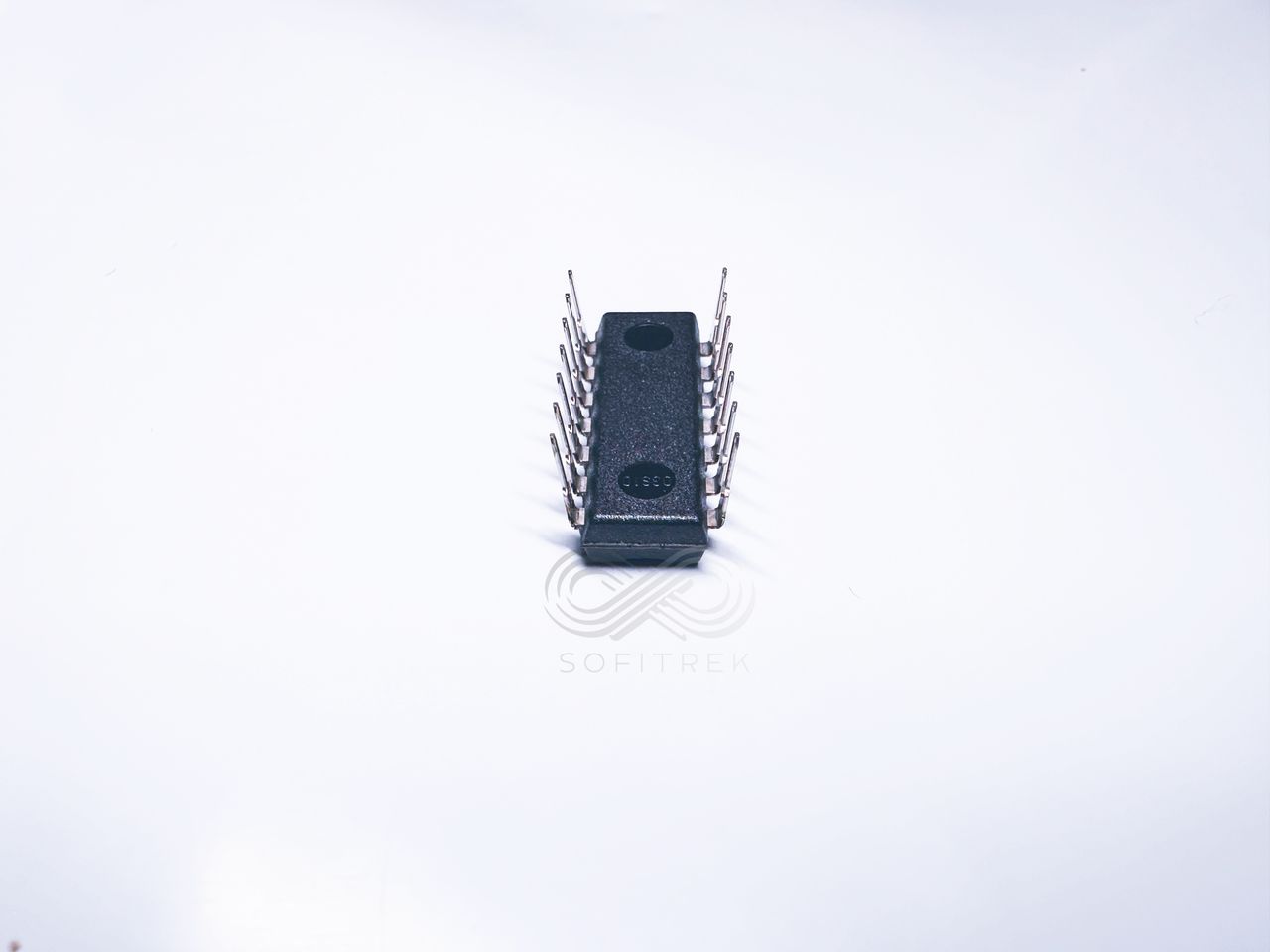

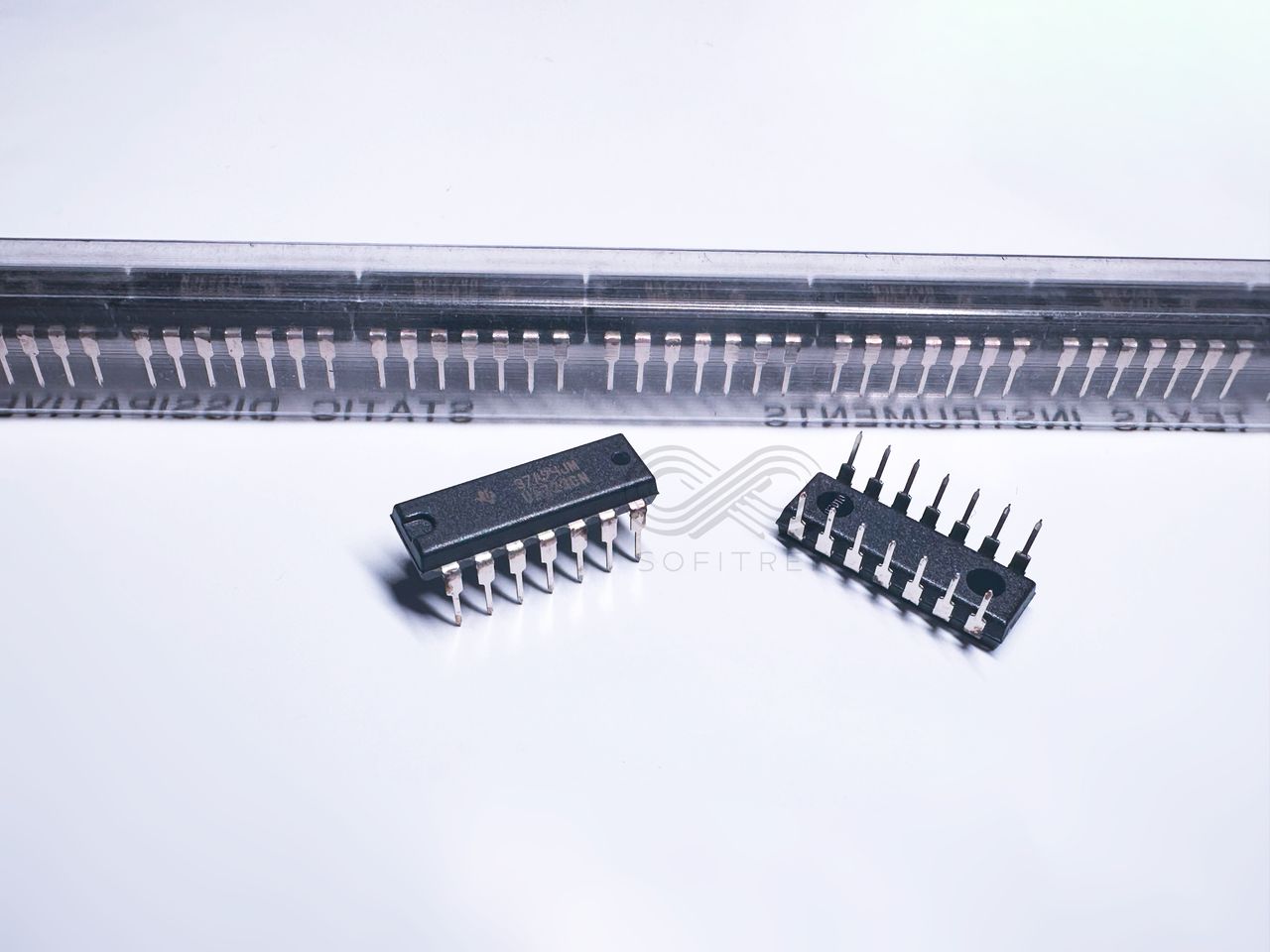

10X UA723CN Texas Instruments Precision Adjustable Voltage Regulator IC 2-37V 150mA DIP-14 μA723

Ready to Ship

Ask a Question

30-Day Return

10 Pieces - UA723CN Texas Instruments Precision Adjustable Voltage Regulator IC 2-37V 150mA DIP-14 μA723

New Old Stock.

Specification
Output Voltage-Nom 7.15 V
Input Voltage-Max 40 V
Input Voltage-Min 9.5 V
Output Voltage-Min 2 V
Output Voltage-Max 37 V
Output Current-Max 150 mA
Supply Voltage-Nom (Vsup) 12 V
Supply Voltage-Min (Vsup) 9.5 V
Supply Voltage-Max (Vsup) 40 V
Number of Outputs 1
Surface Mount NO
Trim/Adjustable Output YES
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Number of Functions 1
Ripple Voltage (Main Out) 0.00002 Vrms
Technology BIPOLAR
Temperature Grade COMMERCIAL
Operating Temperature-Max 70 °C
Number of Terminals 14
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Surface Mount NO
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
Length 19.305 mm
Seated Height-Max 5.08 mm
Pin Count 14
Manufacturer Texas Instruments
