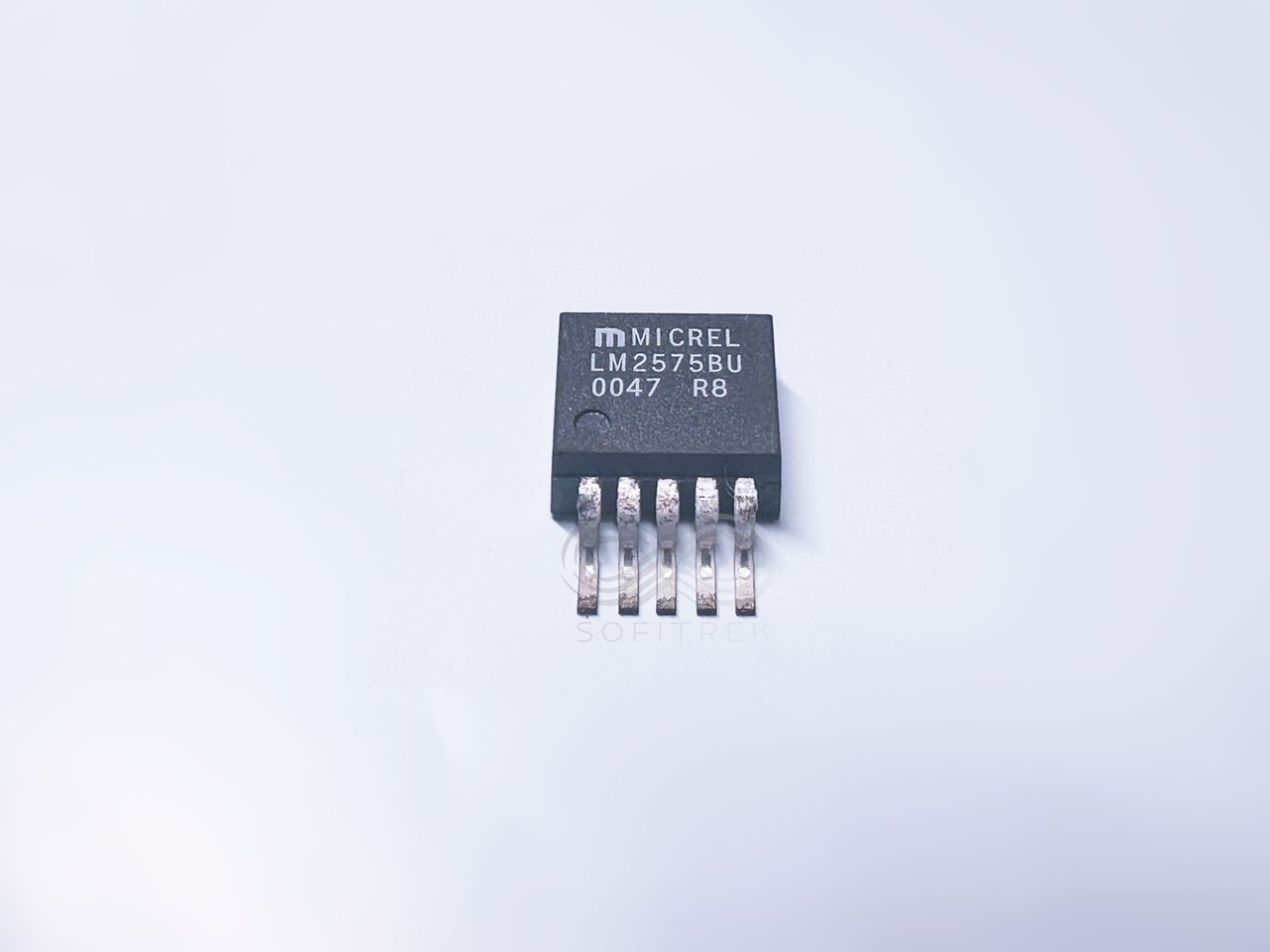

4PCS LM2575BU MICREL Buck Switching Regulator IC 1A 4‑40V In Adjustable 52kHz TO‑263‑5

Ready to Ship

Ask a Question

30-Day Return

4 Pieces - LM2575BU MICREL Buck Switching Regulator IC 1A 4‑40V In Adjustable 52kHz TO‑263‑5

Specification
Input Voltage-Nom 12 V
Output Voltage-Nom 1.23 V
Input Voltage-Max 40 V
Input Voltage-Min 4 V
Output Current-Max 3.2 A
Supply Current-Max (Isup) 10 mA
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 63 kHz
Additional Feature ALSO OPERATES IN ADJUSTABLE MODE FROM 1.23V 37V
Analog IC - Other Type SWITCHING REGULATOR
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Number of Functions 1
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Moisture Sensitivity Level 3
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Peak Reflow Temperature (Cel) 240
Time@Peak Reflow Temperature-Max (s) 30
Number of Terminals 5
Package Body Material PLASTIC/EPOXY
Package Code TO-263
Package Equivalence Code SMSIP5H,.6,67TB
Package Shape RECTANGULAR
Surface Mount YES
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 1.7 mm
Terminal Position SINGLE
Width 8.77 mm
Length 10.36 mm
Seated Height-Max 4.597 mm
Manufacturer MICREL INC
Package Description TO-263, 5 PIN
