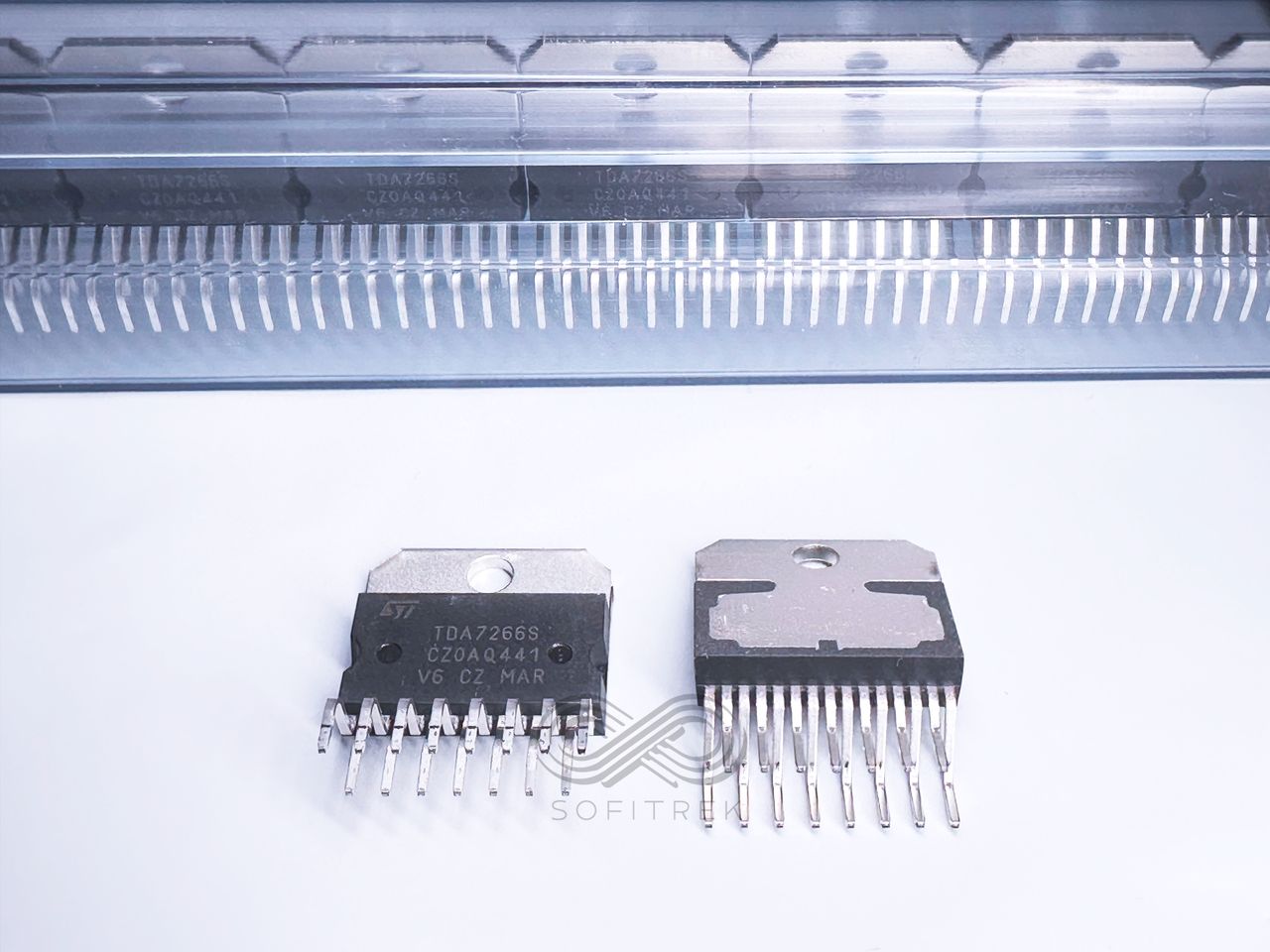

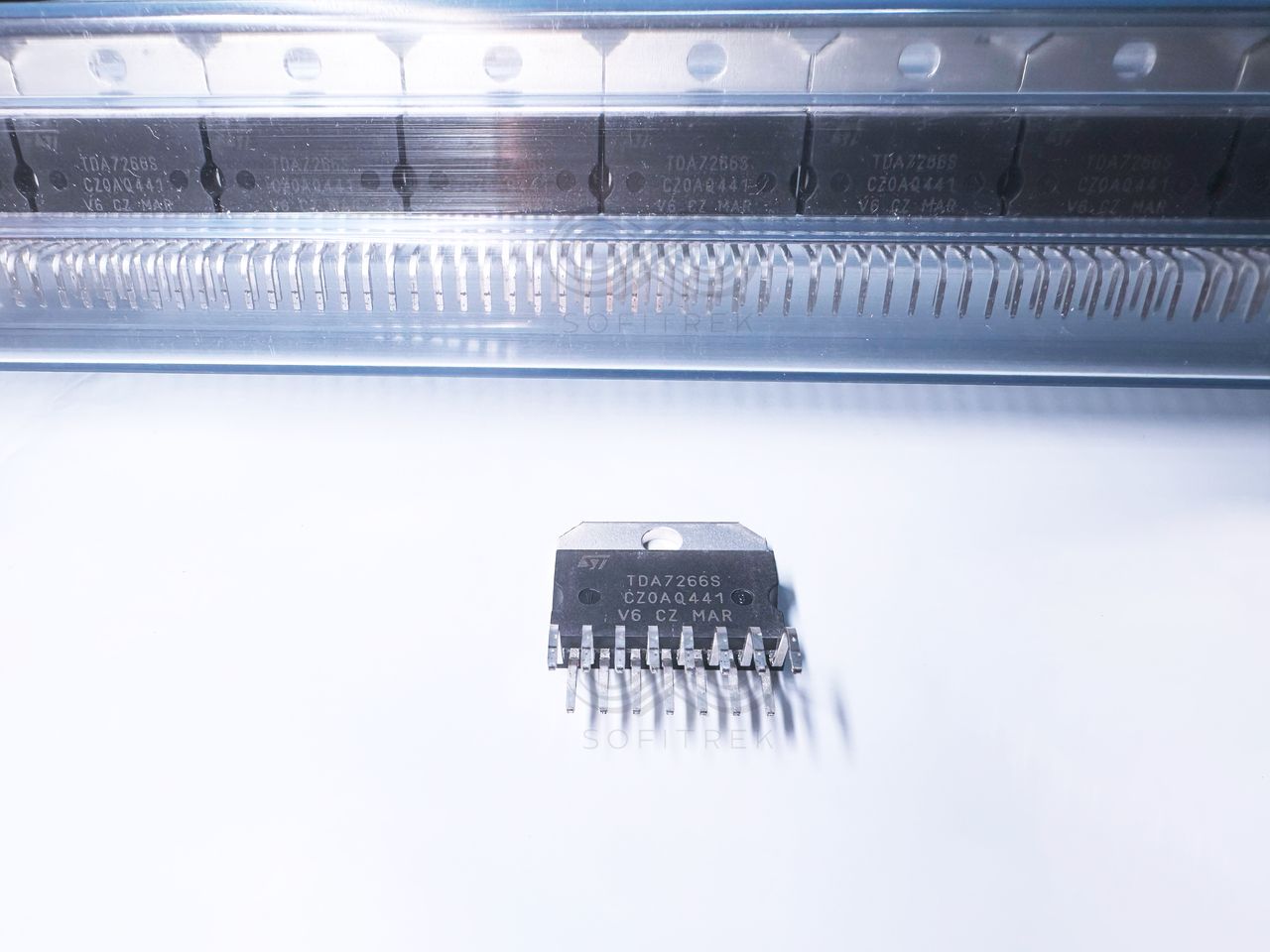

1PC - TDA7266S STMicroelectronics Stereo 5W+5W Dual-Bridge BTL Audio Amplifier IC Multiwatt-15

Ready to Ship

Ask a Question

30-Day Return

1 Piece - TDA7266S STMicroelectronics Stereo 5W+5W Dual-Bridge BTL Audio Amplifier IC Multiwatt-15

Specification
Number of Channels 2
Bandwidth-Nom 20 kHz
Gain 26 dB
Package Code ZIP
Output Power-Nom 5 W
Harmonic Distortion 10 %
Supply Voltage-Max (Vsup) 18 V
Consumer IC Type AUDIO AMPLIFIER
Technology BIPOLAR
Number of Functions 1
Supply Current-Max 60 mA
Supply Voltage-Min (Vsup) 3 V
Temperature Grade COMMERCIAL
Operating Temperature-Max 70 °C
Number of Terminals 15
Package Body Material PLASTIC/EPOXY
Package Equivalence Code ZIP15,.2,.17TB
Package Shape RECTANGULAR
Surface Mount NO
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 1.27 mm
Terminal Position ZIG-ZAG
Package Description MULTIWATT-15
Pin Count 15
Manufacturer STMicroelectronics
